Engineering Composite Panel Board Fence Panels Wall Board 2270 x 610 x 100mm

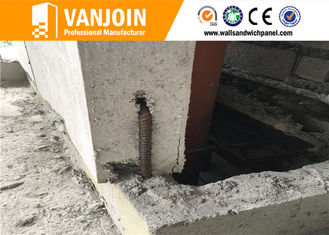

Large Image : Engineering Composite Panel Board Fence Panels Wall Board 2270 x 610 x 100mm

Product Details:

Place of Origin:	China
Brand Name:	Vanjoin
Certification:	CE, BV, ISO
Model Number:	VJ-WP-AYA01

Payment & Shipping Terms:

Minimum Order Quantity:	500m2
Price:	negotiation
Packaging Details:	Standard Exporting Packing with EPE foam film,plastic thin film, edge protect, packing belt, good pallet.
Delivery Time:	7 working days after receiving prepayment.
Payment Terms:	L/C, T/T
Supply Ability:	200,000m2/month

Detailed Product Description

Face Board:	Calcium Silicate Board	Cor Materials:	EPS, Cement, Sand, Additives
Standard Length:	2270mm	Standard Width:	610mm
Standard Thickness:	60mm, 75mm, 90mm, 100mm, 120mm, 150mm	Application:	Interior Wall, Exterior Wall, Floor, Roof
Sound Insulation:	46dB	Lifespan:	70 Years
Advantages:	Quick Construction, Labor Cost Saving

2270 x 610 x 100mm Wildly Using Engineering Composite Fence Panels Wall Board

Specification and Weight and Loading Information

Name	Size(LWT)MM	Weight(KG)	Loading(PCS/M2 per 20ft)
Fast Installation Composite Panel Board Durable Sandwich Wall Panel	227061060	45-48	315 pcs / 436
	227061075	50-53	252 pcs / 349
	227061090	55-58	207 pcs / 287
	2270610100	60-65	189 pcs / 262
	2270610120	65-75	153 pcs / 212
	2270610150	90-90	126 pcs / 175

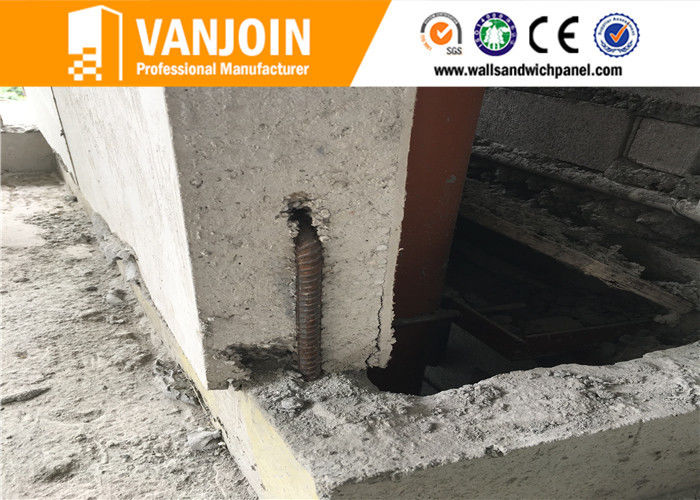

Engineering Composite Panel Board Fence Panels Wall Board 2270 x 610 x 100mm
Features

Lightweight	1 person can carry panel easily
Eco-friendly	100% non-asbestos
Fast Construction	3 workers can install 60-80m2 per day
Strong,Durable and Long Lifespan	70 years
Sound Insulation	42-46 dB
Windproof	65m/s
Fireproof	4 hours
Anti-earthquake	Grade 8-9
Best hanging force	Single point hanging force is 50kg
Weight capacity	650KG / square meter

Installation Process

1). Setting the line and carring the board in position
2). Sawing board
3). Sizing, sizing cement mortar on the side of panels
4). Installation, carry panel, correct panel and fix panel
5). Correcting and fixing
6). Grouting and filling starch
7). Sticking fiberglass mesh
8). installing electricity wire and switches
9). Installing doorcase
10). Facing coating and wall papers
11). Facing flexible soft ceramic tile
12). Electric apparatus installation

Engineering Composite Panel Board Fence Panels Wall Board 2270 x 610 x 100mm

Factory Information

Production area is 40,000m2
Stacking area is 60,000m2
Production capacity is 2,000,000m2 per year
Export quantity is over 400 containers per month
