Product Details:
Payment & Shipping Terms:
|
| Product Name: | EPS Sandwich Panels | Panel Material: | Nonmetal |
|---|---|---|---|
| Sound Insulation: | 40-56 Db | Certificate: | CE, , ISO9001,BV |
| Advantage: | Fireproof, Waterproof. Heat Insulation | Hanging Force: | Single Point Load Weight Reach To 50kg |
| Fast Install: | 8-10 Times Of Traditional Wall |
Indonesia Fireproof Lightweight EPS Cement Sandwich Wall Panels
1. Kinds of sandwich wall panels
ceramicite sandwich panel
eps sandwich panel
2. Specifications
| Type | eps wall panel panel |

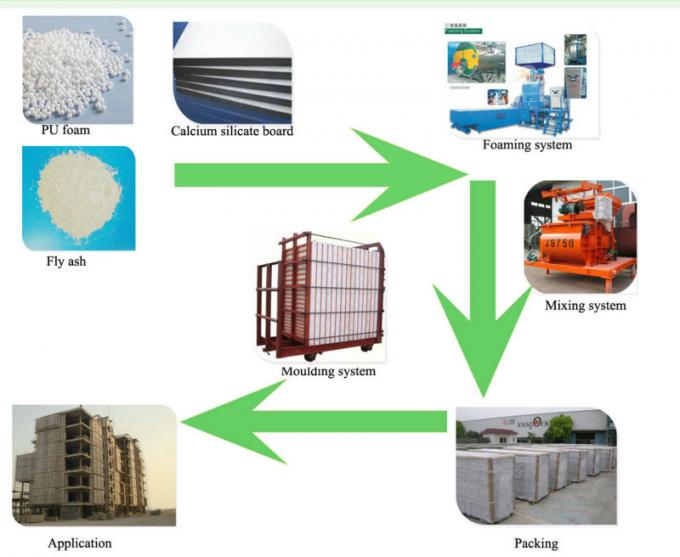

| Composition |
1. Face boards: calcium silicate board 5mm 2. Core materials: eps foam, cement, sand, additives, etc. |

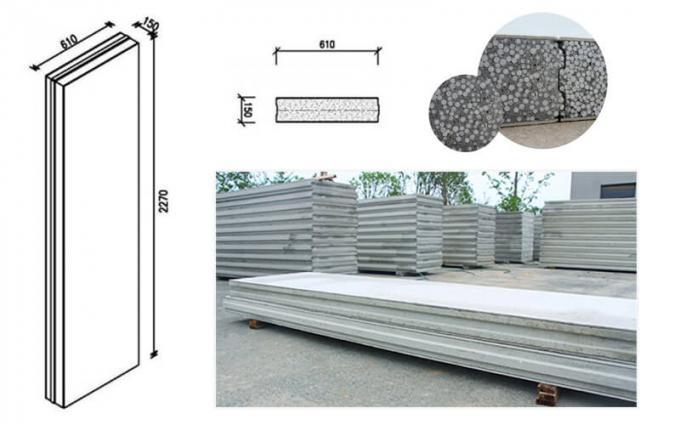

| Standard Size |
Length 2270mm Width 610mm, Thickness: 60/75/90/100/120/150mm |
| Application | Exterior wall for various houses and buildings |
| Main Structure of House | Concrete or steel structure |
| Supply ability | 4,000,000m2 per year |
| Delivery time | Within 15 days after receiving prepayment. |
| Certificates | CE,ISO, with test reports and patents |
3. Features of Indonesia Fireproof Lightweight EPS Cement Sandwich Wall Panels
(1). Energy-saving and Light weight, Environmental Protection
(2). Waterproof and Dampproof
(3). Fire-proof: the panel can keep well about 4hours under 1000 degree.
(4). Sound-insulation: 42-46dB
(5). Environmental: 100% non-asbestos.
(6). Best Hanging force, single point load weight reach to 50kg
(7). Anti-seismic and impact resistance: class 8
(8). High efficiency construction: 3 workers can finish 75m2/day.
4.FAQ
Q: How long is your cargo ready?
A: Usually about two weeks after receipt deposit.
Q: Can you offer sample for testing?
A: Of course, we can offerfree small sample at your required thickness.
Q: Do you have any certificates or qualifications?
A: Yes. We have passed CE & ISO9001, and also have many test reports, the fireproof performance of our sandwich panel is more than 4 hours in the heat of 1000℃.
Q: What are the disadvantages of your sandwich panel?
A: Our panel isnon-load bearing wall panel, so when build several floors or high-rise buildings, must combine with steel structure or concrete structure.
Q: When the time goes by. whether the panel might damage due to the climate change and whether it can be harmed by insects?
A: Our panel will not be damaged due tothe climate change, and also will not be harmed by insects. But for more than 2 storey or high-rise building, this panel need to combine with steel structures or concrete structures. And lifespan is about 50~70 years.
Q: How would you guaranty the quality of your products and would like to know whether a warranty is available for the products we are to order?
A: The physical property of this panel will not be changed with the time goes by, generally speaking, itmaybe damaged during transport or improper use or man-made damage.

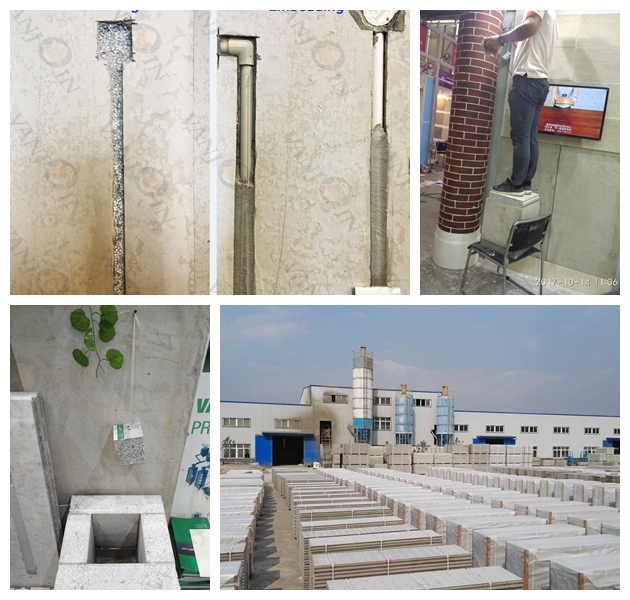

Q: Whether the panel might access easily to fix nails or to drill without any damage to the panel or the EPS - Cementmixture?
A: Yes, this panel can be easily fixed bysteel bar, and can be cut by electric saw at any size freely.
Q: What is your recommendation on usage (for what kind of a construction each panel can be used in accordance with the thickness)?
A: Usually, we suggest to use 50-100mm panels for interior wall partition, 120-200mm forexterior wall.
Q: What is the thickness of calcium silicate board independently?
A: The thickness of calcium silicate board is 4.5mm on each side, so total thickness is 9mm.
