Product Details:
Payment & Shipping Terms:
|
| Features: | Thermal Insulation, Sound Insulation | Face Board: | Calcium Silicate Board |
|---|---|---|---|
| Cor Materials: | EPS, Cement, Sand, Additives | Standard Thickness: | 60mm, 75mm, 90mm, 100mm, 120mm, 150mm |
| Sound Insulation: | 46dB | Lifespan: | 70 Years |
| Usage: | Interior Wall, Exterior Wall, Flooring, Roofing | Eco-friendly: | 100% No Asbestos |
| Energy Saving: | Recyclable, Space Saving, Labor Cost Saving |

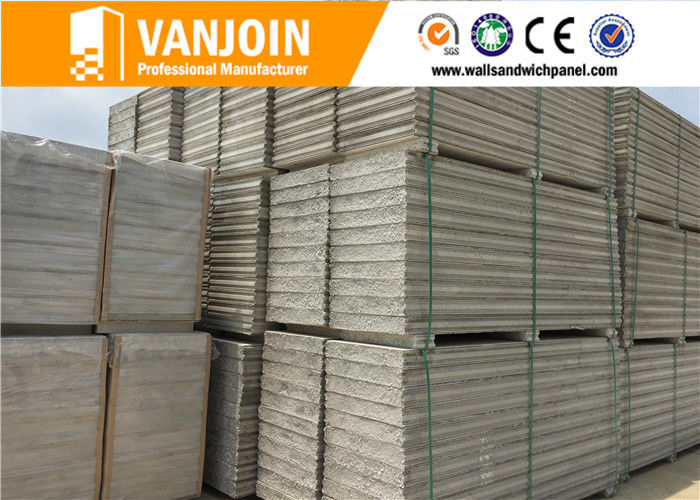

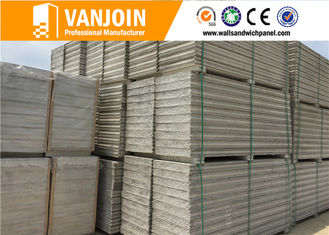

Economical best hanging strength precast concrete exterior wall panel in The Philippines
Type | EPS Cement Sandwich wall panel |
Material | Face boards are calcium silicate board, inner materials are eps foam, cement, sand, additives, etc. |
Size | Standard length 2270mm, width 610mm, thickness 60mm,75mm,90mm,100mm,120mm,150mm. |
Application | External and internal wall for various houses and buildings |
Joining Method | Tongue & groove type |
Supply ability | 200,000m² per month. |
Delivery time | Usually 3 days after receiving prepayment. |
Payment terms | T/T, L/C. |
1. Packaging for EPS Cement Sandwich Wall Panel
Name
|
Size(L*W*T)MM |
Weight(KG) |
Loading(PCS/M2 per 20ft) |
EPS Cement Sandwich Wall Panel | 2270*610*60 | 45-48 | 315 pcs / 436 |
2270*610*75 | 50-53 | 252 pcs / 349 | |
2270*610*90 | 55-58 | 207 pcs / 287 | |
2270*610*100 | 60-65 | 189 pcs / 262 | |
2270*610*120 | 65-75 | 153 pcs / 212 | |
2270*610*150 | 90-90 | 126 pcs / 175 |
2. Specification of EPS Cement Sandwich Wall Panels
Lightweight | 1 person can carry panel easily |
Eco-friendly | 100% non-asbestos |
Fast Construction | 3 workers can install 60-80m2 per day |
Strong,Durable and Long Lifespan | 70 years |
Sound Insulation | 42-46 dB |
Windproof | 65m/s |
Fireproof | 4 hours |
Anti-earthquake | Grade 8-9 |
Best hanging force | Single point hanging force is 50kg |
Weight capacity | 650KG / square meter |

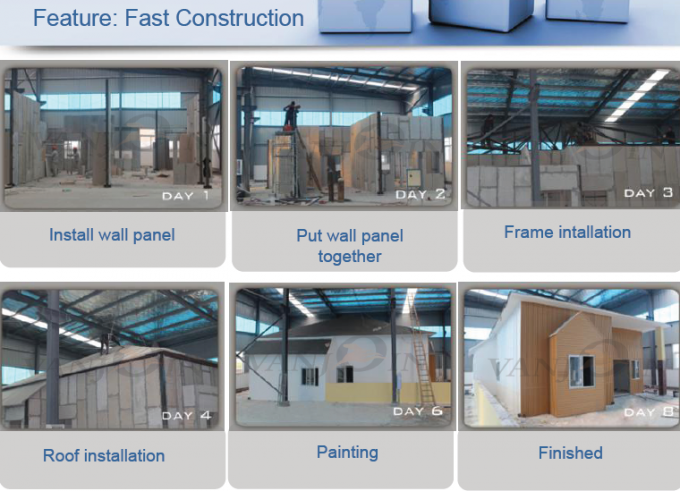

3. EPS Wall Panels Installation Process
1). Setting the line and carring the board in position
2). Sawing board
3). Sizing, sizing cement mortar on the side of panels
4). Installation, carry panel, correct panel and fix panel
5). Correcting and fixing
6). Grouting and filling starch
7). Sticking fiberglass mesh
8). installing electricity wire and switches
9). Installing doorcase
10). Facing coating and wall papers
11). Facing flexible soft ceramic tile
12). Electric apparatus installation

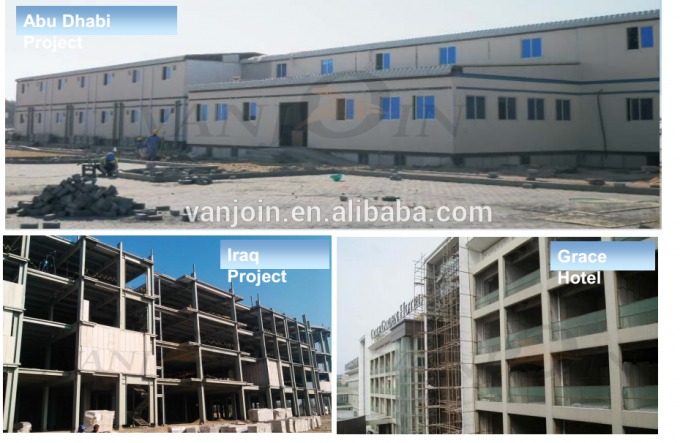

4. Project Case:
7.RFQ
Q1 : How many years your company to produce this kind of wall panel ?
A: More than 8 years of manufacturing eps cement sandwich wall panels , now we are the largest manufacture in middle of China , and among TOP 3 in China in this field .
Q2 : Main market of Vanjoin ?
A: Main market : Asia , South Amercia , Africa
South East Asia is our largest market ,Mid East is our second largest market
Q3 : Exporting details :
A: loading & shipping 400 20ft every month
Q4 : More information of Vanjoin factory ?
A: Land area : 30,000m2 Machines : Fully automatic production line
Productivity : 2,000,000m2 wall panel every year
Q5 : How could I get the samples ?
A: We send you the free wall panel samples , brochures & installation cd etc, you pay for the freight charges .
If you get the TNT , DHL , UPS , Fedex account , that is the best .
If not , you can transfer money to our West Union account , then we send you samples by Vanjoin account .
Q6 : Certificate of Vanjoin
A: We get CE , ISO , BV , SGS certificate for our product
We get other wall panel performance testing report , such as fireproof , sound insulation , waterproof , heat insulation certificates etc .
Q7 : How to installation the wall lpanels ?
A: You can watch the installation video on our website or send an enquiry.
