EPS Cement Sandwich Construction Material Making Machinery / Brick Wall Panel

Large Image : EPS Cement Sandwich Construction Material Making Machinery / Brick Wall Panel

Product Details:

Place of Origin:	Hubei, China
Brand Name:	Vanjoin
Certification:	CE, ISO, , BV, SASO
Model Number:	VJ-PM-YR03

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	negotiation
Packaging Details:	standard export package
Delivery Time:	45-60 days after receiving deposit
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	20 Sets Per Month

Detailed Product Description

Type:	Full Automation	Panel Advantage:	Waterproof, Fireproof, Sound Insultion, Heat Insulation, Etc
Production Capacity:	10,000m2-1,000,000m2 / Year	Processing:	Brick Production Line
Panel Thickness:	60/75/90/100/120/150/180mm	Voltage:	380v
Lifespan:	Over 20 Years	After-sales Service Provided:	Engineers Available To Service Machinery Overseas

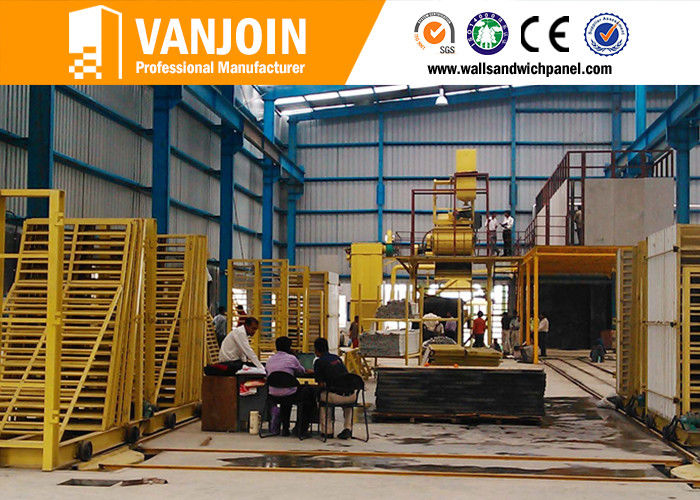

EPS Cement Sandwich Construction Material Making Machinery Brick Wall Panel

3 kinds of panel Production Line:

Full automation line

Semi-automation line

Hand-operation line

Specificcation of panel production line:

annual output(m2)	quantity of moulding cars(set)	quantity of workers required	prodction area(m2)	stacking area(m2)
100,000	5	8-13	500	1000
200,000	8	10-18	600	2000
300,000	10	12-20	700	3000
400,000	11	15-23	800	4000
500,000	12	18-28	900	5000
600,000	13	22-32	1000	6000
700,000	14	25-35	1100	7000
800,000	15	28-38	1200	8000
900,000	16	32-42	1300	9000
1,000,000	17	35-46	1400	10000

The whole panel production line includes the following system:

Main Advantages of Vanjoin foaming system:

1. High technology to keep every part safe

2. High speed EPS output

3. Easy and convenient for operation

4. Long-term stability

oil tank, boiler, EPS Pre-expander, fluidized bed, EPS silo, etc.

Main Advantages of Vanjoin storage&conveyor system:

1. Easy and rich experience design.

2. Easy operation: Very easy to operate for simple design.

cement: screw conveyor, sand: bucket elevator, water: pipe, etc

Main Advantages of Vanjoin mixing system:

1. Cost efficiency: design every part simple and practical.

2. High output: Need only 5 minutes to finish one cubic meter raw material.

3. Easy operation: Very easy to operate for simple design.

Cement metering system, water metering system, EPS measuring conveying system,Additive storage and metering system, etc

central control, pneumatic control, double tank mixer, etc.

Main Advantages of Vanjoin moulding system:

1. Face panel and core forming by one time compound

2. Low input, high output and returns.

3. Easy and convenient for operation

vertical traction-type (automatic) sandwich panel mold car, automatic ferry vehicles, steel rail

Specification(LWT)	Output of One Mould Car
2270mm610mm60mm	60 pcs/set
2270mm610mm75mm	50 pcs/set
2270mm610mm90mm	42 pcs/set
2270mm610mm100mm	40 pcs/set
2270mm610mm120mm	34 pcs/set
2270mm610mm150mm	28 pcs/set
2270mm610mm180mm	22 pcs/set
