Unique Double Axle Sandwich Panel Making Machine / Wall Panel Foam Machine

China Unique Double Axle Sandwich Panel Making Machine / Wall Panel Foam Machine supplier
Unique Double Axle Sandwich Panel Making Machine / Wall Panel Foam Machine supplier Unique Double Axle Sandwich Panel Making Machine / Wall Panel Foam Machine supplier Unique Double Axle Sandwich Panel Making Machine / Wall Panel Foam Machine supplier Unique Double Axle Sandwich Panel Making Machine / Wall Panel Foam Machine supplier

Large Image :  Unique Double Axle Sandwich Panel Making Machine / Wall Panel Foam Machine

Product Details:

Place of Origin: Hubei, China
Brand Name: Vanjoin
Certification: CE, ISO, , BV, SASO
Model Number: VJ-PM-YR08

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: negotiation
Packaging Details: standard export package
Delivery Time: 45-60 days after receiving deposit
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 20 Sets Per Month
Contact Now
Detailed Product Description
Raw Material: Cement, Sand Or Fly Ash, Eps Foam, Water, Addtivies, Etc Production Capacity: 10,000m2-1,000,000m2 / Year
Panel Fectures: Waterproof, Fireproof, Sound Insultion, Heat Insulation Advantages: High Output, Less Worker Needed, Less Waste
Apecfication: EPS/Cramic/Perlie Cement Sandwich Panel After-sales Service Provided: Engineers Available To Service Machinery Overseas
Lifespan: Over 20 Years Warranty: 12 Months

Unique Double Axle Sandwich Panel Production Line Wall Panel Foam Machine



Types of Sandwich Panels



EPS cement sandwich panel

Ceramisite sandwich panel

Perlite sandwich panel

Ceramisite & eps sandwich panel

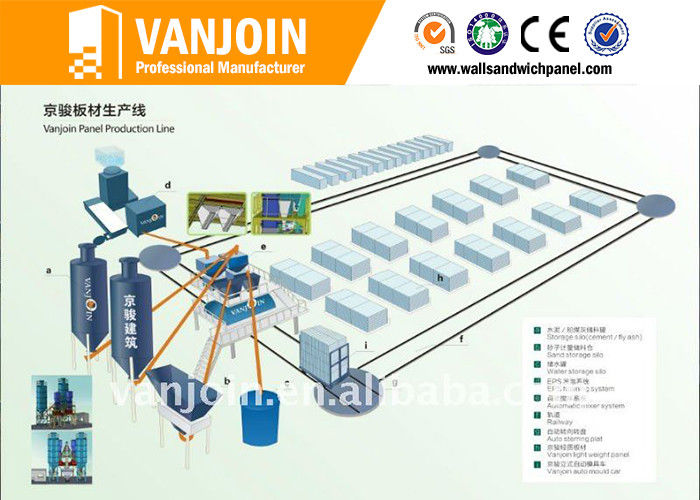

Component:



1 . Foaming System: boiler system, continuous pre-expander machine.

2 . Raw Materials Storage / Measuring / Conveying System

3 . Mixing System

4 . Forming and Gating System



Outstanding Advantages:

 Measuring precisely ensuring each panel is with exactly same materials and ratio
 Easy maintenance by demounting the broken piece
 Recycling use the eps foam& eco-friendly
 Taking good use of local resources: sand
 Fully closed working ensuring clear factory with less pollution

Specification of Mould Car:


VJ-HT2270

Name

Main Parameters

Overall Dimensions(L*W*H)

3180*1380*3480mm

Weight

2800KG

Mobie Power(KW)

2.2

Mobie Speed(m/min)

≤60

Main Components

Host

chassis assembly (power device), former stands, after stands, after plate, rod

Accessories

pressing plate, side mould

Production Information

Thickness (mm)

Width (mm)

Length (mm)

Quantity (pcs/set)

Area (m2/set)

Raw Material (m2)

60

610

2270

60

83.0

4.15

75

610

2270

50

69.2

4.50

90

610

2270

42

58.1

4.65

100

610

2270

40

55.3

4.98

120

610

2270

34

47.0

5.17

150

610

2270

28

38.7

5.42

180

610

2270

22

30.4

5.77

Remarks

Two transition car, production line conversion use, one set cheer machine, spray release agent use, pour table, track.



Unique Double Axle Sandwich Panel Making Machine / Wall Panel Foam Machine



What You Can Get from Us?

v Over 20 years service life
v Maintenance time: 1 year
v Fully automatic production system
v Professional installation service
v High output with less workers
v Unique Operation Software
v Unique Addictives

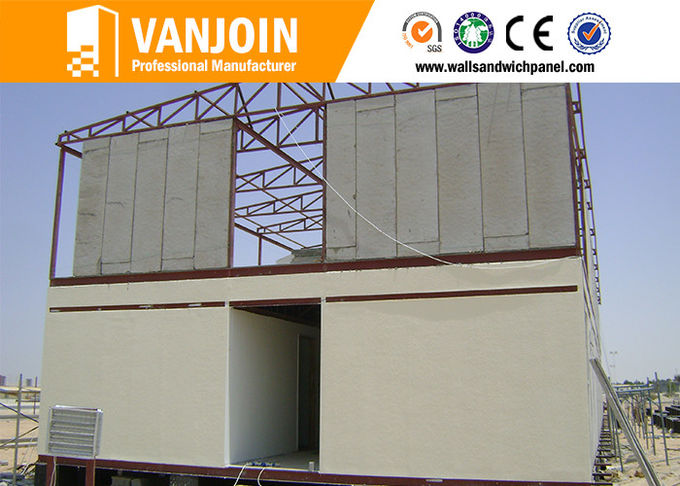

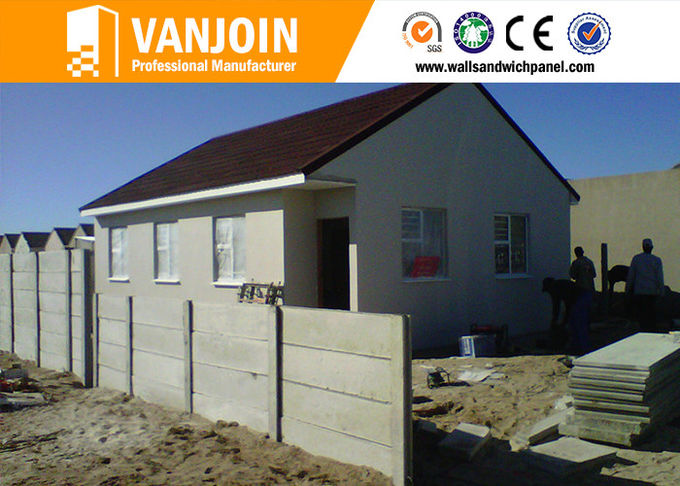

Wall Application:



1. For interior and exterior wall partition on steel or concrete structure building, new construction or renovations.

2. It can replace construction materials such as block, wire spatial grid structure perlite board, perlite porous board and etc.

3. It can widely be applied to wall materials of various high and low buildings such as bank, office building, hospital, school, hotel, mall, amusement, old house reconstruction, residence and workshop.

Unique Double Axle Sandwich Panel Making Machine / Wall Panel Foam MachineUnique Double Axle Sandwich Panel Making Machine / Wall Panel Foam Machine
