Automatic Wall Panel Forming Machine For Sandwich Wall Panel Production Line

China Automatic Wall Panel Forming Machine For Sandwich Wall Panel Production Line supplier
Automatic Wall Panel Forming Machine For Sandwich Wall Panel Production Line supplier Automatic Wall Panel Forming Machine For Sandwich Wall Panel Production Line supplier Automatic Wall Panel Forming Machine For Sandwich Wall Panel Production Line supplier Automatic Wall Panel Forming Machine For Sandwich Wall Panel Production Line supplier

Large Image :  Automatic Wall Panel Forming Machine For Sandwich Wall Panel Production Line

Product Details:

Place of Origin: Huhei, China
Brand Name: Vanjoin
Certification: ISO9001, ISO14001, BV
Model Number: VJ-M-01H

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Standard Exporting Package
Delivery Time: 30-45 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20 sets per month
Detailed Product Description
Product Name: Wall Panel Forming Machine Water Pressure: No Less Than 0.2MPa
Water Temperature Required: 5-50℃ Power Current: 500A
Voltage: 380V Water Pump: 1 W2.4-10.5

Automatic Wall Panel Forming Machine For Sandwich Wall Panel Production Line



Raw materials for Production are:



1 . Face Board:

Calcium Silicate Board, Magnesium Oxide Board, Fiber Cement Board, Cement Board, Glass Fiber Boar

Width of face board must be 608mm, allowed tolerance is ±2mm.



2 . Sand: SiO2≥98%   Fineness: Residue on 200 pore sieve <10%

3 . Cement: Ordinary Portland cement with grade of above 42.5

4 . EPS (Expandable Polystyrene Granule), Perlite, Ceramicite, volcanic rock and other light-weight & porous materials.

5 . Vanjoin Chemical Additives for Light Weight Energy Saving Wall Panel

6 . Water

7 . Assistant Raw Material

Mould discharging agent, used to lubricate pressing mould plate & aluminum mould plate, buyer can use

wasted machine oil.



The Above mentioned contents are basic requirement for raw material. In some circumstances, qualified

light weight energy saving wall panel can also be produced even with different raw material, while the

raw material should be analyzed particularly so as to confirm its adaptability.



Product Performance:



Item

Main parameters

Overall Dimensions( Length × Width × Height )

3180mm×1380mm×3480mm

Weight

2800KG

Movement Power(KW)

2.2

Movement Speed(m/min)

≤60

Main Components

Main Part

Base(contain power device), front support,

back support, pressing plate, rod

Accessories

Pressing Mould Plate, side mould

Production Data

Thickness

(mm)

Width

(mm)

Length

(mm)

Production Quantity

(pieces/set)

Area

(㎡/set)

Raw Materials

(m³)

60

610

2270

60

83.0

4.15

75

610

2270

50

69.2

4.50

90

610

2270

42

58.1

4.65

100

610

2270

40

55.3

4.98

120

610

2270

34

47.0

5.17

150

610

2270

28

38.7

5.42

180

610

2270

22

30.4

5.17



Outstanding Advantages:



1 . Measuring precisely ensuring each panel is with exactly same materials and ratio



2 . Easy maintenanceby demounting the broken piece



3 . Recycling use the eps foam& eco-friendly



4 . Taking good use of local resources: sand



5 . Fully closed working ensuring clear factory with less pollution

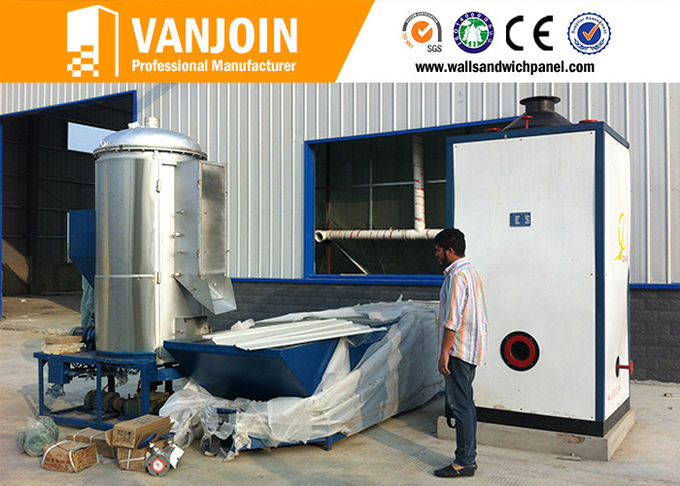

Automatic Wall Panel Foaming Machine:



Automatic Wall Panel Forming Machine For Sandwich Wall Panel Production Line

Automatic Wall Panel Forming Machine For Sandwich Wall Panel Production Line
