Precast Lightweight Wall Panel Machine / Sandwich Panel Making Equipment

China Precast Lightweight Wall Panel Machine / Sandwich Panel Making Equipment supplier
Precast Lightweight Wall Panel Machine / Sandwich Panel Making Equipment supplier Precast Lightweight Wall Panel Machine / Sandwich Panel Making Equipment supplier Precast Lightweight Wall Panel Machine / Sandwich Panel Making Equipment supplier Precast Lightweight Wall Panel Machine / Sandwich Panel Making Equipment supplier

Large Image :  Precast Lightweight Wall Panel Machine / Sandwich Panel Making Equipment

Product Details:

Place of Origin: Wuhan, Hubei, China
Brand Name: VANJOIN
Certification: CE, ISO, , BV
Model Number: VJ-PL-AY010

Payment & Shipping Terms:

Minimum Order Quantity: 1 Unit
Price: negotiation
Packaging Details: Solid and Safe Standard Exporting Packing
Delivery Time: 45-60 days after receiving prepayment
Payment Terms: L/C, T/T
Supply Ability: 20 Units Per Month
Detailed Product Description
Application: Produce Wall Panel Status Of Machines: Brand New
EPS Foaming Machine: Automatic Mixer: JS1000
Mould Car: Vertical Installation: Engineers Overseas Service Provided
Advantage: High Production Capacity Feature: Full Automatic

Precast Lightweight Wall Panel Machine / Sandwich Panel Making Equipment



1. Specification of Wall Panels It Can Produce



Length       2270mm, 2440mm, 3000mm

Width         610mm

Thickness  60mm, 75mm, 90mm, 100mm,120mm, 150mm, 180mm



2. Production Period



Pre-curing time is 4h-8h

Daily production time is 8h-12h



3. Material Requirements



Face board  Calcium silicate board. Width must be 608mm, allowed tolerance is ±2mm.
EPS Expandable polystyrene granule
Sand  SiO2≥98%
Cement Ordinary portland cement with grade of 42.5
Additives Vanjoin customized additives
Water Normal water
Assistant Material Wasted machine oil, used to lubricate pressing mould plate, aluminum mould plate



4. Core Systems



(1). Boiler System    electric boiler,  coal boiler, gas boiler



(2). Mixing System   unique design by Vanjoin and full automatic



Parameters of Mixing System



Theoretical Productivity 2×35m³/h
 Mixing Time ≤180s
Materials Measuring Accuracy ±1%
Sand Batching Period ≤10s
Sand delivering Speed 18m³/h
Water Supply Flow Speed 30m³/h
 Cement Delivering Capacity 20t/h



















(3). Mould Machine



Item Main Parameters
Overall Dimensions

3180mm×1380mm×3480mm

Weight



2800KG

Movement Power(KW)

2.2

Movement Speed(m/min)



≤60

Main Components



Main Part



Base(contain power device), front support, back support, pressing plate, rod



Accessories



Pressing Mould Plate, side mould



Production Data



Thickness



(mm)

Width



(mm)

Length



(mm)

Production Quantity



(pieces/set)

Area



(㎡/set)

Raw Materials



(m³)

60

610

2270

60

83.0

4.15

75

610

2270

50

69.2

4.50

90

610

2270

42

58.1

4.65

100

610

2270

40

55.3

4.98

120

610

2270

34

47.0

5.17

150

610

2270

28

38.7

5.42

180

610

2270

22

30.4

5.77

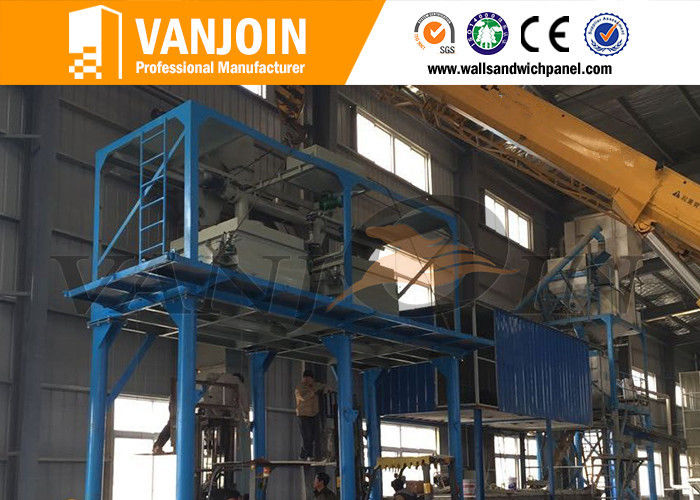

Precast Lightweight Wall Panel Machine / Sandwich Panel Making Equipment

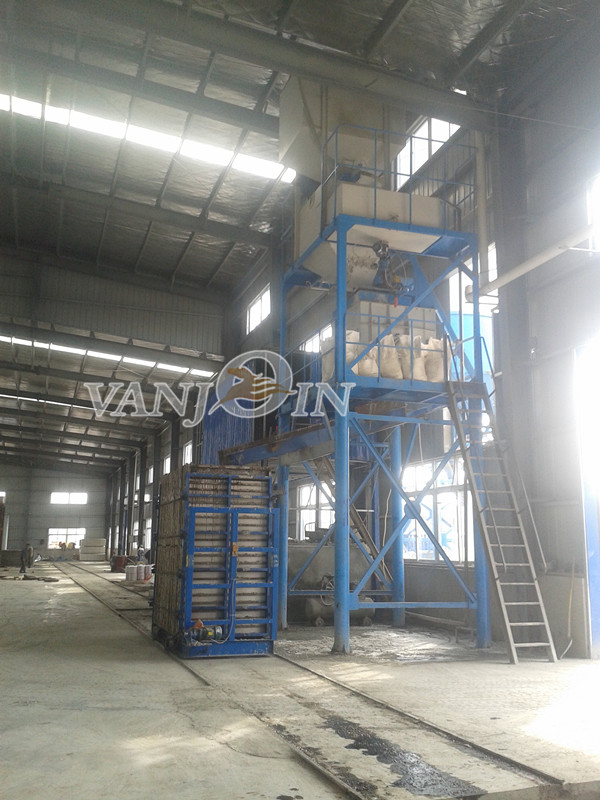

Precast Lightweight Wall Panel Machine / Sandwich Panel Making Equipment

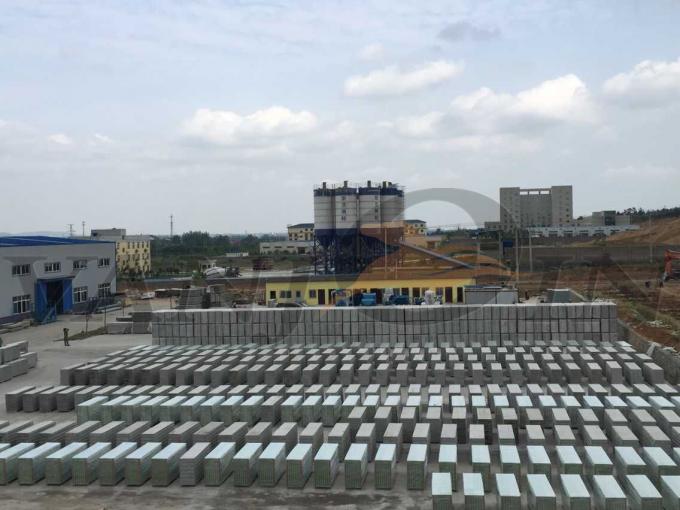

Precast Lightweight Wall Panel Machine / Sandwich Panel Making Equipment
