Prefabricated House Villa EPS Sandwich Wall Panel for Interior Wall

China Prefabricated House Villa EPS Sandwich Wall Panel for Interior Wall supplier
Prefabricated House Villa EPS Sandwich Wall Panel for Interior Wall supplier Prefabricated House Villa EPS Sandwich Wall Panel for Interior Wall supplier Prefabricated House Villa EPS Sandwich Wall Panel for Interior Wall supplier Prefabricated House Villa EPS Sandwich Wall Panel for Interior Wall supplier

Large Image :  Prefabricated House Villa EPS Sandwich Wall Panel for Interior Wall

Product Details:

Place of Origin: China
Brand Name: Vanjoin
Certification: CE, BV, ISO
Model Number: VJ-WP-LX001 EPS Sandwich Wall Panel

Payment & Shipping Terms:

Minimum Order Quantity: 300㎡
Price: negotiation
Packaging Details: Standard Exporting Packing( (wrapped with plastic thin film,wedge protect and good pallet) )
Delivery Time: 7-15 days after getting advanced payment
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 4,000,000㎡ per year
Contact Now
Detailed Product Description
Types: EPS Sandwich Wall Panel Application: Interior Wall, Exterior Wall, Roof And Floor
Thickness: 60, 75, 90, 100, 120, 150mm Acoustic: 38dB-46dB
Non-combustibility: Grade A, BS EN ISO1182:2002 Waterproof: Good
Flexural Strength 1: 4.27MPa In Longitudinal Flexural Strength 2: 4118N In Transvers
Fire Rated: 4 Hours FRP Anti-seismic: 7-8 Class

Prefabricated House Villa EPS Sandwich Wall Panel for Interior Wall



1. Composite of EPS Sandwich Wall Panel

EPS Sandwich Wall Panel includes two parts: surface board and core material.

Surface board: Calcium Silicon Board 5mm

Core material: EPS, Cement, Sand, Vanjoin addictives, ect.



2. Specification EPS Sandwich Wall Panel



Length   Width     Thickness    Weight  Application
       2270mm        610mm        60mm         45-48kg/㎡                    Roof
       75mm         50-53kg/㎡               Interior wall
       90mm         55-58kg/㎡          Interior / Exterior wall
      100mm         60-65kg/㎡          Interior / Exterior wall
      120mm         65-75kg/㎡               Exterior wall
      150mm         80-90kg/㎡                Exterior wall
 Allowed Tolerance: Length±5mm; Width±2mm; Thickness±1mm; Diagonal±2mm























Remark: All kinds of EPS sandwich wall panel can be customized by customers' specific requirements,

such as density and length of panels.



3. Application of EPS Sandwich Wall Panel

Our EPS Sandwich Wall Panels are widely used as interior wall and exterior wall, roof, and floor for high and low rise building as well as villas, warehouse, apartment, school, shopping mall, hospital, hotels, KTV, etc.



4. Features of EPS Sandwich Wall Panel

1. Energy-saving

2. Light weight---1/6 of traditional brick

3. environment-friendly ---  not abestos

4. Area-saving --- save 4 m² / 100 m² (compare with tradition building materials)

5. Waterproof and damp proof

6. Fire-proof --- 4 hours 1000 degree; GB/T9987

7. Sound-insulation ---38dB-46dB

8. Best hanging force---single point hanging strength 50kg, embeded 150kg

9. Anti-seismic and impact resistance

10. Heat Insultation and preservation

11. Thermal insulation

12. Fast easy construction, Low Labor: two experienced workers 50-80 /day

13. Long life usage: 70 years



5. Packing Size & Details of EPS Sandwich Wall Panel

Length Width Thickness Packing Size of 20' GP Container
2270mm 610mm 60mm 315pcs / 436㎡
75mm 252pcs / 349㎡
90mm 207pcs / 287㎡
100mm 189pcs / 262㎡
120mm 153pcs / 212㎡
150mm 126pcs / 175㎡

Packing Details 1. Free packing with normal pallet and packing belt
2. Standard exporting packing wrapped with plastic thin film,wedge protect & good pallet
3. Packing size: 1500-3000*610*1000mm
4. Loading 18 pallets per 20' container

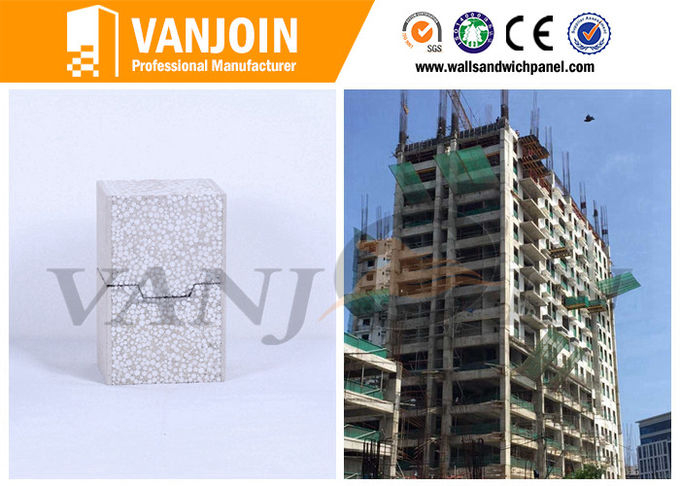

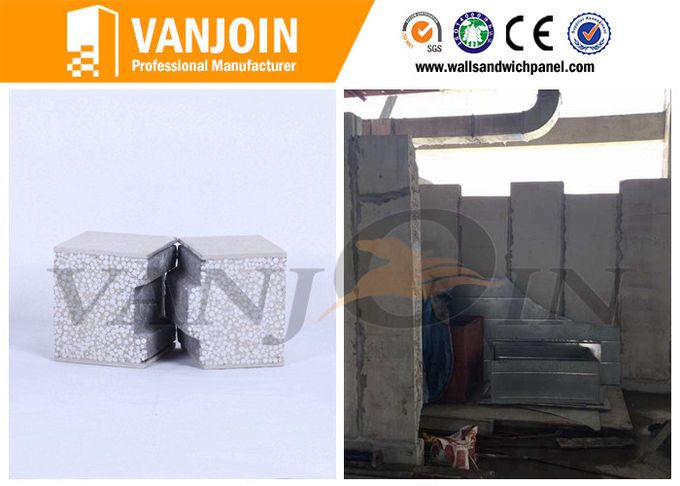

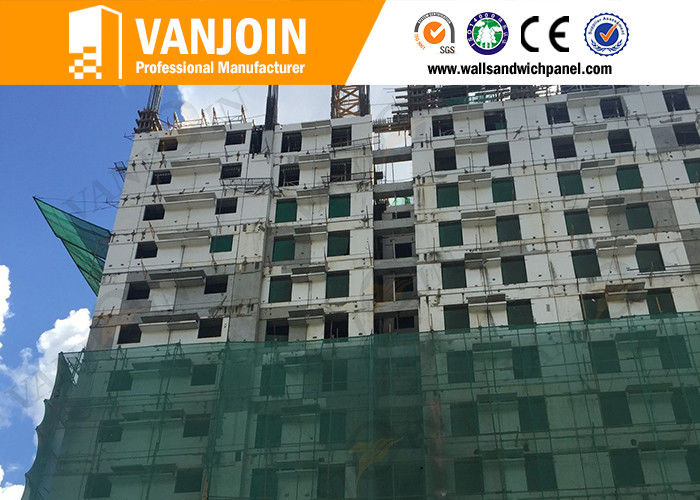

6. Photos of EPS Sandwich Wall Panel for your reference

Prefabricated House Villa EPS Sandwich Wall Panel for Interior Wall.jpgPrefabricated House Villa EPS Sandwich Wall Panel for Interior Wall.jpgPrefabricated House Villa EPS Sandwich Wall Panel for Interior Wall.jpg
