Prefab Insulated Wall Panels , EPS Sandwich Panels Fireproof 4 Hours FRP

Large Image : Prefab Insulated Wall Panels , EPS Sandwich Panels Fireproof 4 Hours FRP

Product Details:

Place of Origin:	China
Brand Name:	VANJOIN Sandwich Panels
Certification:	CE, BV, ISO
Model Number:	VJ-WP-LX002 EPS Sandwich Panels

Payment & Shipping Terms:

Minimum Order Quantity:	300㎡
Price:	negotiation
Packaging Details:	Standard Exporting Packing( (wrapped with plastic thin film,wedge protect and good pallet) )
Delivery Time:	7-15 days after getting advanced payment
Payment Terms:	T/T, L/C, Western Union, MoneyGram
Supply Ability:	4,000,000㎡ per year

Detailed Product Description

Types:	EPS Sandwich Panels	Application:	Interior And Exterior Wall, Roof And Floor
Thickness:	60, 75, 90, 100, 120, 150mm	Sound Insulation:	38dB-46dB
Non-combustibility:	Grade A, BS EN ISO1182:2002	Waterproof:	Good
Light Weight:	1/6 Of Traditional Brick	Fireproof:	4 Hours FRP
Anti-seismic:	7-8 Class	Heat Insulated:	Good

Prefab Insulated Wall Panels , EPS Sandwich Panels Fireproof 4 Hours FRP

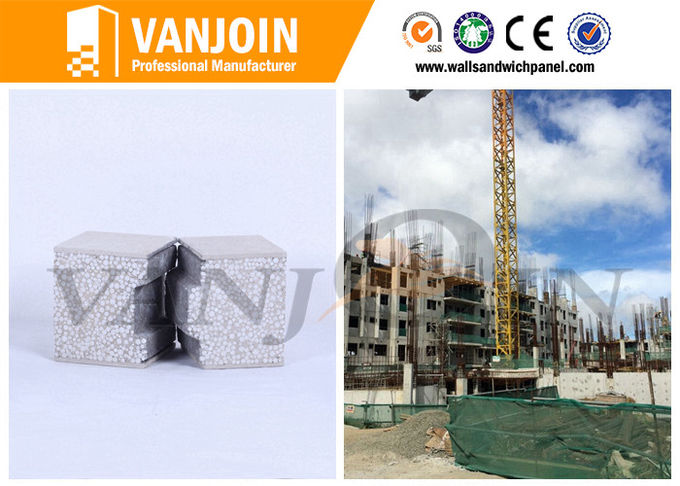

Vanjoin lightweight compound EPS sandwich panels is a kind of energy saving light weight compound board.
It can replace construction materials like red brick, clay solid brick, air brick, color-coated steel sandwich wall board, gypsum block, wire spatial grid structure perlite board and perlite porous board.

1. Composite of Vanjoin EPS Sandwich Panels
EPS Sandwich Wall Panel take 5mm Calcium Silicon Board as surface panel, with EPS / ceramsite / perlite, Cement, Sand or fly ash as filler.

2. Specification of Vanjoin EPS Sandwich Panels


Length	Width	Thickness	Weight	Application
2270mm	610mm	60mm	45-48kg/㎡	Roof
		75mm	50-53kg/㎡	Interior wall
		90mm	55-58kg/㎡	Interior / Exterior wall
		100mm	60-65kg/㎡	Interior / Exterior wall
		120mm	65-75kg/㎡	Exterior wall
		150mm	80-90kg/㎡	Exterior wall
Allowed Tolerance: Length±5mm; Width±2mm; Thickness±1mm; Diagonal±2mm

Remark: All kinds of EPS sandwich wall panel can be customized by customers' specific requirements,
such as density and length of panels.

3. Application of Vanjoin EPS Sandwich Panels

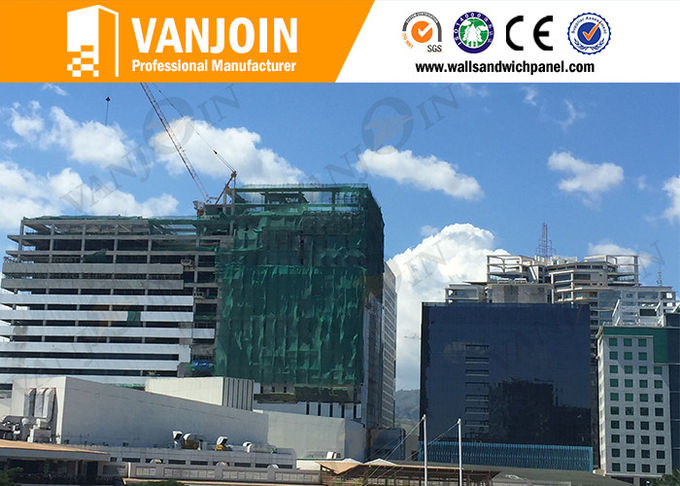

Our EPS Sandwich Wall Panels can be widely applied to varoius high and low buildings, such as bank, office building, hotels, school, shopping mall, amusement hall, portable dwellings, warehouse, family house, house resconstruction, workshop and ect.

Vanjoin EPS Sandwich Wall Panels can used as 4 systems:

1. Interior partition wall

2. Exterior wall system

3. Roof system

4. Floor system

4. Main Features of Vanjoin EPS Sandwich Panels
1. Light weight
The weight of Vanjoin EPS Sandwich Wall Panel is only 1/6 of traditional brick
2. Fireproof
Our sandwich panel approved fireproof test for 4 hours 1000 degree; got Grade A(GB/T9987).
3. Area-saving
Comparing with tradition building materials, you can save 4 m² per 100 m², if using our sandwich panel.
4. Waterproof
Good waterproof perfermance. No droplets observed behind the panel, test 24 hours at 250mm water head.
5. Sound-insulation
Excellent acoustic perfermance 38dB-46dB, 38dB for 60mm thickness panel, 46dB for 150mm thickness panel.
6. Fast and easy construction, Labor saving
Two experienced workers installation one day, they can install 50-80 ㎡.
7. Long life usage:70 years

5. Packing Size & Details of Vanjoin EPS Sandwich Panels

Length	Width	Thickness	Packing Size of 20' GP Container
2270mm	610mm	60mm	315pcs / 436㎡
		75mm	252pcs / 349㎡
		90mm	207pcs / 287㎡
		100mm	189pcs / 262㎡
		120mm	153pcs / 212㎡
		150mm	126pcs / 175㎡

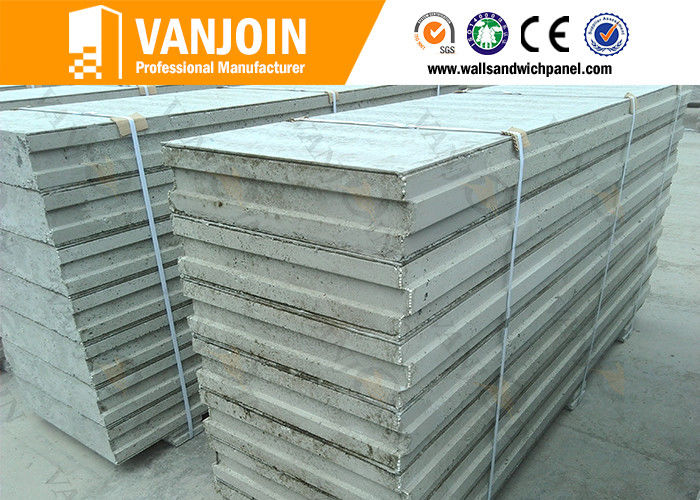

Packing Details	1. Free packing	with normal pallet and packing belt
	2. Standard exporting packing	wrapped with plastic thin film,wedge protect & good pallet
	3. Packing size:	1500-30006101000mm
	4. Loading	18 pallets per 20' container
