Automatic EPS Sandwich Panel Machine with Annual Capacity 1000000 Square Meter

China Automatic EPS Sandwich Panel Machine with Annual Capacity 1000000 Square Meter supplier
Automatic EPS Sandwich Panel Machine with Annual Capacity 1000000 Square Meter supplier Automatic EPS Sandwich Panel Machine with Annual Capacity 1000000 Square Meter supplier Automatic EPS Sandwich Panel Machine with Annual Capacity 1000000 Square Meter supplier Automatic EPS Sandwich Panel Machine with Annual Capacity 1000000 Square Meter supplier

Large Image :  Automatic EPS Sandwich Panel Machine with Annual Capacity 1000000 Square Meter

Product Details:

Place of Origin: Wuhan, Hubei, China
Brand Name: VANJOIN EPS Sandwich Panel Machine
Certification: CE, ISO, , BV,ect.
Model Number: VJ-PL-LX003 EPS Sandwich Panel Machine

Payment & Shipping Terms:

Minimum Order Quantity: 1 Unit
Price: negotiation
Packaging Details: Standard Exporting Packing
Delivery Time: 30-45days after getting advanced payment
Payment Terms: T/T, L/C
Supply Ability: 20 Units Per Month
Contact Now
Detailed Product Description
Name: Automatic EPS Sandwich Panel Machine Automatic: Full, Semi Automatic Or Manual
Capacity: 100,000-1,000,000 Square Meter/year Panel Types: EPS / Perlite / Ceramicite Sandwich Panel
Panel Length: 2270mm, 2440mm, 2700mm, 3000mm Panel Width: 610mm
Thickness: 60,75, 90, 100, 120, 150, 180mm Application: Interior Wall, Exterior Wall, Roof Or Floor
Mould Type: Vertical Mould Machine Installation: Our Engineer Is Available To Install Machines
Guaranty: 12 Month Sevice Time: More Than 20 Years

Automatic EPS Sandwich Panel Machine with Annual Capacity 1000000 square meter



I. Detailed Description of Automatic EPS Sandwich Panel Machine

Name  Automatic EPS Sandwich Panel Machine
Types

 1. Full automation line

 2. Semi-automation line

 3. Manual Line

Products  EPS / Perlite / Ceramicite Sandwich Panel

Specification

(sandwich panel)

 Length: 2270mm, 2440mm, 2700mm, 3000mm

 Width: 610mm

 Thickness:60mm,75mm, 90mm, 100mm, 120mm, 150mm, 180mm

Application

(sandwich panel)

 Interior wall, exterior wall, roof for house, villa, apartment,

 school, hotel, office building and so on

Capacity  100,000-1,000,000 square meter/year
Trade terms  EXW, FOB, CNF, CIF
Payment terms  TT, L/C
Payment condition

 1. 40% TT deposit in advance, 55% TT balance before delivery, and 5% after  installation but before adjusting machines by our engineer.

 2. 100% L/C at sight

Delivery time  30-45days after getting advanced payment
Loading port  Wuhan / Shanghai Port
Package  Standard exported packing
Our service

 1. Investment cost calculation

 2. Capacity calculation

 3. Factory design

 4. Production line layout design

 5. on site engineers for installation and guidance

 6. Service life: over 20 years

 7. Warranty :1 year

 8. Free training

Your preparation

 1. Raw materials:EPS, sand, cement, water, addictives and ect.(your local  materials can also be used)

 2. Land (see specifications)

 3. Workers (see specifications)

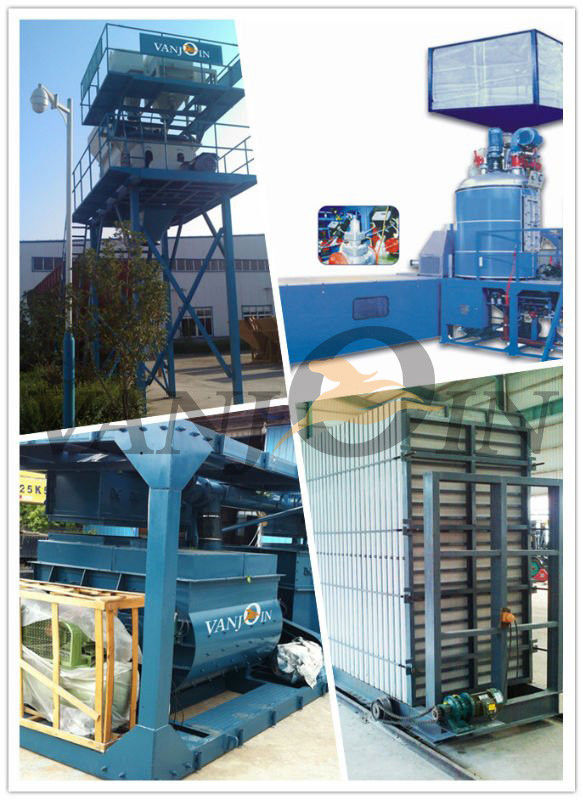

II. Main Systems of Lightweight Wall Panel Forming Machine

1) Foaming System including: Electric / oil / gas Boiler + EPS foaming machine

2) Raw material storage measuring and conveying system: AUTOMATIC weighing and supply

3) Mixing system: two sets double-horizontal-shaft compulsory mixing and discharging separately.

4) Wall panel forming and gating system

1. Railway system

2. Steering system

3. Casting moulding system

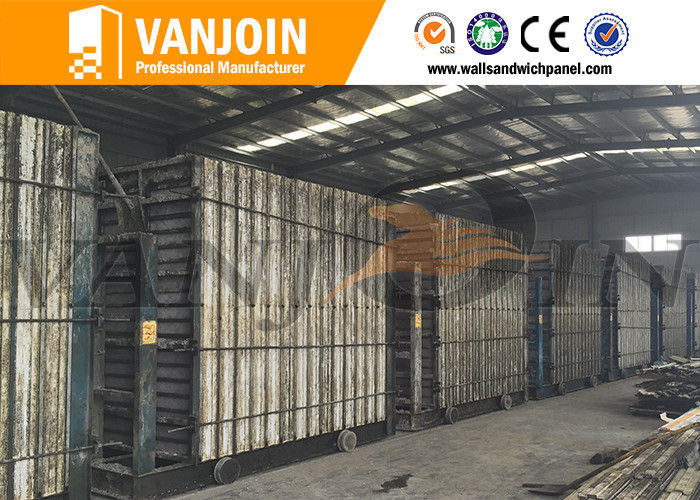

Main Parameters of Vertical Mould Car:

Item Main parameters

Overall Dimensions

( Length × Width × Height )

3180mm×1380mm×3480mm
Weight 2800KG
Movement Power(KW) 2.2

Movement Speed(m/min)

(m/min)

≤60
Main Components Main Part

Base(contain power device), front support,

back support, pressing plate, rod

  Accessories Pressing Mould Plate, side mould
Production Data

Thickness

(mm)

Width

(mm)

Length

(mm)

Production Quantity

(pieces/set)

Area

(㎡/set)

Raw Materials

(m³)

  60 610 2270 60 83.0 4.15
  75 610 2270 50 69.2 4.50
  90 610 2270 42 58.1 4.65
  100 610 2270 40 55.3 4.98
  120 610 2270 34 47.0 5.17
  150 610 2270 28 38.7 5.42
  180 610 2270 22 30.4 5.77

5) Automatic Control System: auto feeding; electronic weighing & PLC touch screen One-key Control



III. Size of Wall Panels machine can produce (Automatic EPS Sandwich Panel Machine)

Length 2270mm, 2440mm, 3000mm
Width 610mm
Thickness 60mm, 75mm, 90mm, 100mm,120mm, 150mm, 180mm



IV. Material for producing eps sandwich panel (Automatic EPS Sandwich Panel Machine)

Face board Calcium silicate board. Width must be 608mm, allowed tolerance is ±2mm.
EPS Expandable polystyrene granule
Sand SiO2≥98%
Cement Ordinary portland cement with grade of 42.5
Additives Vanjoin customized additives
Water Normal water
Assistant Material Wasted machine oil, used to lubricate pressing mould plate, aluminum mould plate




V. Moulder car, Labors and Land Reuired (Automatic EPS Sandwich Panel Machine)

Annual Output(m2) Quantity of Moulding Cars(set) Quantity of Workers Required Prodction Area(m2) Stacking Area(m2)
100,000 5 8--13 500 1000
200,000 8 10--18 600 2000
300,000 10 12--20 700 3000
400,000 11 15--23 800 4000
500,000 12 18--28 900 5000
600,000 13 22--32 1000 6000
700,000 14 25--35 1100 7000
800,000 15 28--38 1200 8000
900,000 16 32--42 1300 9000
1,000,000 17 35--46 1400 10000

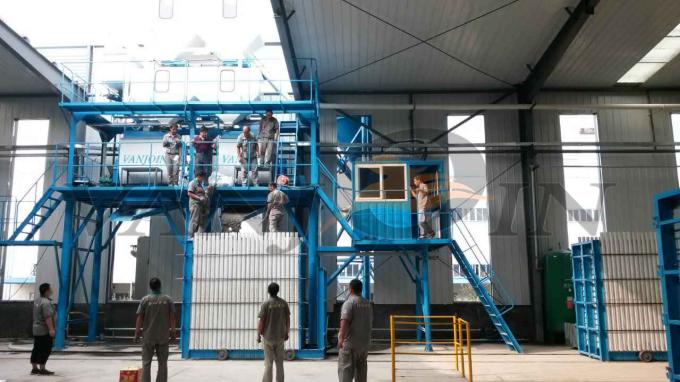

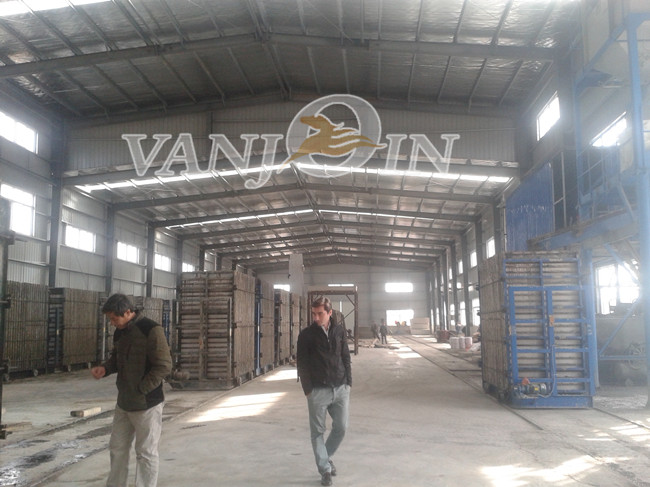

VI. Photos of Automatic EPS Sandwich Panel Machine

Automatic EPS Sandwich Panel Machine with Annual Capacity 1000000 square meter



Automatic EPS Sandwich Panel Machine with Annual Capacity 1000000 square meter

Automatic EPS Sandwich Panel Machine with Annual Capacity 1000000 square meter

Automatic EPS Sandwich Panel Machine with Annual Capacity 1000000 square meter
