Product Details:
Payment & Shipping Terms:
|
| Types: | Nometal EPS Cement Sandwich Panel | Application: | Interior And Exterior Wall, Fence, Roof And Floor |
|---|---|---|---|
| Thickness: | 60, 75, 90, 100, 120, 150mm | Sound Insulation: | 38dB-46dB |
| Non-combustibility: | Grade A, BS EN ISO1182:2002 | Waterproof: | Good |
| Light Weight: | 1/6 Of Traditional Brick | Fireproof: | 4 Hours FRP |
| Anti-seismic: | 7-8 Class | Heat Insulated: | Good |
| Fast Consruction: | 50-80 ㎡/day | Capacity: | 650kg/m3 |
Fast Building EPS Cement Sandwich Panel , Decorated Precast Wall Panels
Vanjoin compound sandwich panel is lightweight energy-saving building materials.
It can be applied to various high and low rise buildings,such as hotel, office buildings,
bank, hospital, school, shopping mall, amusement hall, portable dwellings, old house reconstruction, family house and workshop ect.
1. Raw Materials of EPS Cement Sandwich Panel
(1)Core material: EPS(Polystyrene) beads, 42% cement, sand, water, addictives ect.
(2)Surface board: calcium silicon board 5mm, both side
2. Specifications of EPS Cement Sandwich Panel
|
Product Name |
Specification (mm) |
Weight (kg/m2) |
Packing (pcs/㎡ per 20GP) |
Application |
|
Vanjoin light weight energy-saving eps cement sandwich panel |
2270x610x60 | 45~48 | 315pcs/436㎡ | Roof |
| 2270x610x75 | 50~53 | 252pcs/349㎡ | Interior wall | |
| 2270x610x90 | 55~58 | 207pcs/287㎡ | Interior/Exterior wall | |
| 2210x610x100 | 60~65 | 189pcs/262㎡ | Interior/Exterior wall | |
| 2210x610x120 | 65~75 | 153pcs/212㎡ | Exterior wall | |
| 2210x610x150 | 80~90 | 126pcs/175㎡ | Exterior wall | |
| 2210x610x180 | 95~105 | 99pcs/138㎡ | Exterior wall | |
| Allowed Tolerance: Length±5mm; Width±2mm; Thickness±1mm; Diagonal±2mm | ||||
3. Features of EPS Cement Sandwich Panel
1. Lightweight: 1/6 of traditional brick
2. Area-saving: It can save 4.26m² per 100m²(compare with traditional red brick)
3. Waterproof and Damp-proof
4. Fire-proof: passed National fire test, Grade A, 4 hours 1000 centigrade without damage
5. Sound-insulation: 38dB-48dB
6. Best Hanging force, single point load weight: 50kg
7. Anti-seismic and impact resistance: class 7
8. Environmental: 100% not abestos
9. Fast construction and easy decoration: 75-80m²/day
4. Application of EPS Cement Sandwich Panel

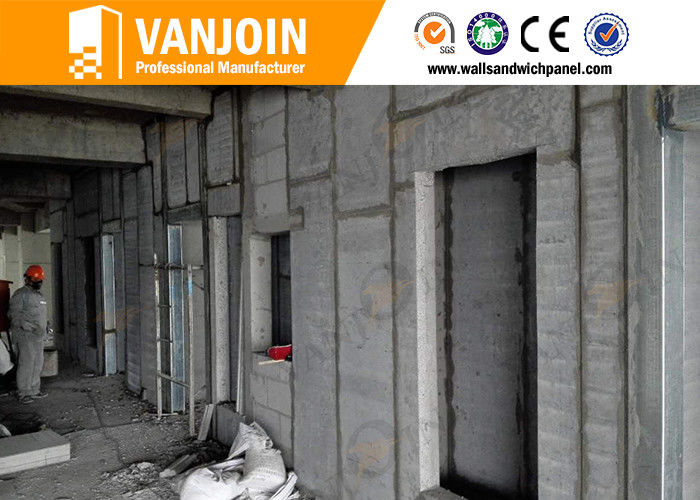

Fire rated composite sandwich board can be used as interior partition wall, exterior wall,
floor, roof and fence for low and high rise house and buildings, which is mainly applied to

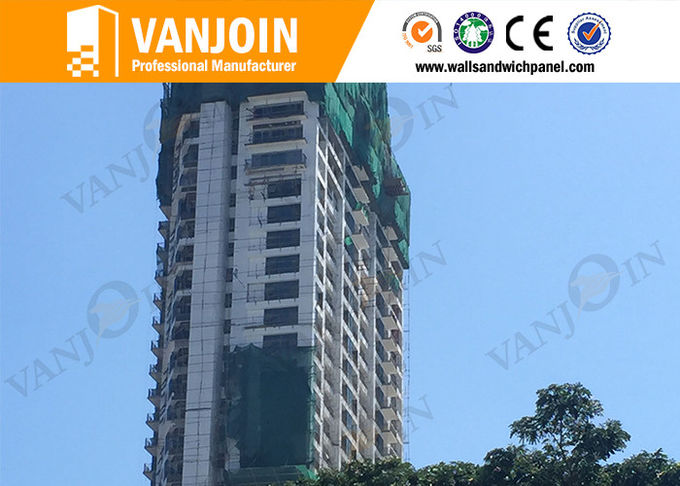

interior and exterior partition wall for high buildings.The highest building we have built
is 70 storey.
1 . What's the MOQ of eps cement sandwich panel?
MOQ is one FCL 20FT Container
2. What's the delivery time of eps cement sandwich panel ?
Within 7-15 days after geting the down payment.
3. What's the annual capacity of eps cement sandwich panel?
Our eps sandwich panel with annual production capacity of 4,000,000m2, ranking TOP 2 in China.
4 . Main market of Vanjoin eps cement sandwich panel?
Main market : Asia, South Amercia, Africa, South East Asia, Middle East.
5. Can I get free l sample of eps cement sandwich panel?
Yes, you can get free samples within 3-5 days and you only need to pay the courier freight.
6. Certificate of Vanjoin eps cement sandwich panel
We get CE, ISO9001, ISO1004, BV, , Patent certificates. We also passed the fireproof, Sound
insulation and other performance test by the Philippines Science and Technology Department.
6. CE Certificates of EPS Cement Sandwich Panel

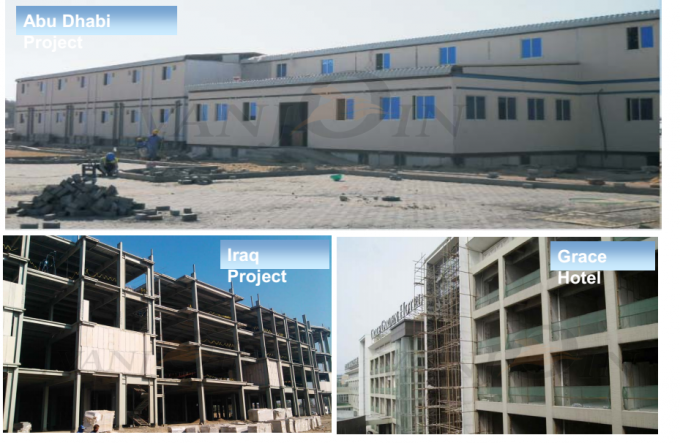

7. Vanjoin Successful Project Cases (EPS Cement Sandwich Panel)
