Wind Proof EPS Cement Sandwich Panel with Lightweight Building Material , 2270*610mm

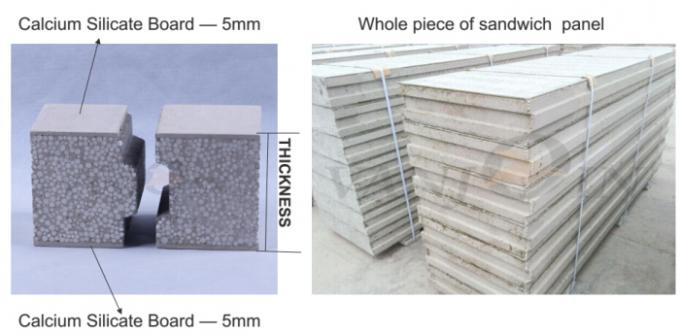

Raw Material For Three main kinds of sandwich wall panels:

1) Eps sandwich panel: eps, cement, sand, water, additives, calcium silicate board.

2) Ceramicite Sandwich panel: ceramicite, cement, sand, water, additives, calcium silicate board.

3) Eps & Ceramicite sandwich panel: ceramicite, eps, cement, sand, water, additives, calcium silicate board.

※ Most energy-saving, light weight, environmental protection

The capacity is 650kg/m³, just sixth of the brick building

※ Most Area-saving

In comparison of the inner wall panel 75mm abd 120mm, every 12m will increase practical area,

for the 100㎡ house, it will increase 4.26㎡.

※ Most waterproof and dampproof

Because of the special featuresof the solid panel, the feature of waterproof and dampproof is very

obvious. The experiment shows that without any waterproof facing, build one pool with our products,

and fill it with water, the back of the wall can keep dry without ant blot.When in damp weather, there

 isn't any condensation wate.

※ Most fire-proof

Under 1000 degree centigrade for 240 minutes, there isn't damage to the wall.

※ Most sound-insulation

46dB-50dB sound-insulation effect, accord with the national standard GBJ121-88.

※ Best hanging strength

Expansion bol can be installed in random part of the wall, the point hanging force can reach more

 than 50kg(50-70kg). With other Pre-embedded material in the panel, the strength can reach 150kg.

※ Most anti-seismic and inpact resistance

Earthquake resistant level: M8.0

※ Most civilized, environmental, high efficiency construction

Simple construction and transportation, stacking health, dry operation, no sludge, low loss, less

 waste, construction convenient, no bricklaying plastering, shorten the construction period,

lotted fast, easy to install water and electricity pipeline. The construction efficiency is 8-10 times

of the normal masonry, it's a kind of high-quality reusable wall.
