Product Details:
Payment & Shipping Terms:
|
| Type: | EPS Sandwich Wall Panels | Panel Material: | Nonmetal |
|---|---|---|---|
| Surface Panel Material: | Calcium Silicate Board | Core Material: | EPS, Cement, Sand, Water, Additive, Etc |
| Fireproof: | 240Minutes | Use Life: | 70 Years |
Sound Insulated EPS Polystyrene Foam Sandwich Wall Panel In Malaysia
Vanjoin lightweight EPS sandwich composite wall panel is a kind of energy saving light
weight compound board. It can replace construction materials like red brick, clay solid brick, air brick,
color-coated steel sandwich wall panel, gypsum block, wire spatial grid structure perlite board and
perlite porous board. This kind of composite panel board can be used as interior wall, exterior wall,
roof, floor and fence.
1. Composition:
Core materials: cement, EPS, and fly ash core.
Surface materials: fiber reinforced calcium silicone board or cement calcium silicone board.
2. Specification: (L*W*T)
1500-3000mm X 610mm X (60, 75, 90, 100, 120,150,180mm)
3. Usage:
Interior and exterior partition on steel or concrete structure building,
For new construction, additions or renovations.
4. Advantages:
| | | | ||||
| Thickness | 60mm | 90mm | 120mm | 60mm | 90mm | 120mm |
1 | Anti-impact Capacity/times | ≥5 | ≥5 | ≥5 | ≥8 | ≥10 | ≥15 |
2 | Anti-bending damageload/times over deadweight | ≥1.5 | ≥1.5 | ≥1.5 | ≥3 | ≥4 | ≥5 |
3 | Compressive strength /Mpa | ≥3.5 | ≥3.5 | ≥3.5 | ≥5 | ≥5 | ≥5 |
4 | Softening coefficient | ≥0.80 | ≥0.80 | ≥0.80 | ≥1 | ≥1 | ≥1 |
5 | Surface density g/kg | ≤70 | ≤90 | ≤110 | ≤55 | ≤70 | ≤85 |
6 | Moisture rate a/% | ≤12/10/8 | ≤10/9/7 | ||||
7 | Drying shrinkage value /mm/m | ≤0.6 | ≤0.6 | ≤0.6 | ≤0.45 | ≤.0.5 | ≤0.5 |
8 | Drying shrinkage value /mm/m | ≥1000 | ≥1000 | ≥1000 | ≥1200 | ≥1300 | ≥1500 |
9 | Sound insulation capacity in the air /Db | ≥30 | ≥35 | ≥40 | ≥35 | ≥40 | ≥45 |
10 | Fire proof limit /h | ≥1 | ≥1 | ≥1 | ≥2.5 | ≥3 | ≥4 |
11 | Heat transfer coefficient b/w/. |
|
| ≤1.0 |
|
| ≤1.0 |
12 | Radioactivity Limit | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 |
13 | IRa Inner radiation indexes | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 |
14 | Ir Outer radiation indexes | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 |
6. Application:
Can replace construction materials as red bricks, clay solid bricks, air bricks, color-coated steel sandwich boards, gypsum blocks, wire spatial grid structure perlite boards, and perlite porous board can widely be applied to wall materials of various high and low buildings such as banks, office buildings, hospitals, schools, hotels, malls, amusement halls, active barracks, old houses reconstruction, residences, and workshops.

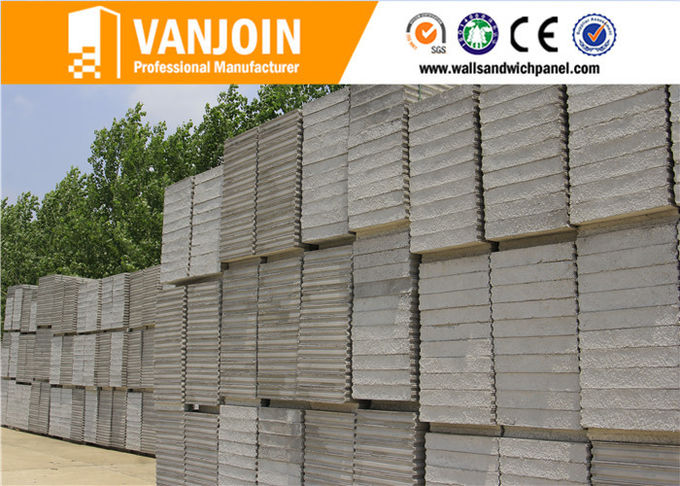

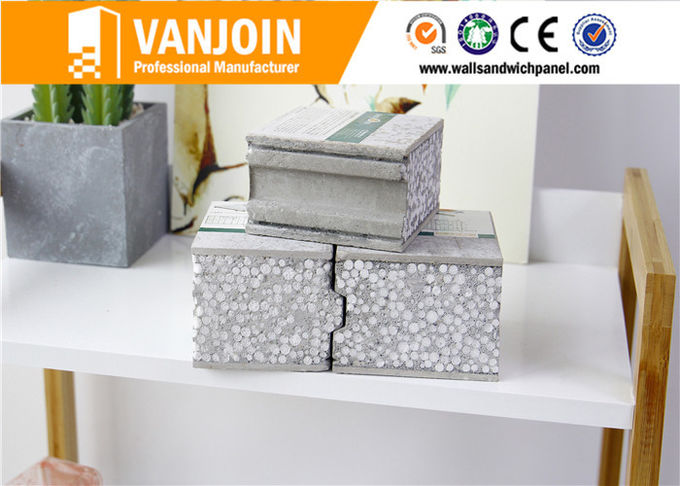

7. Photos of Lightweight EPS Sandwich Wall Panel

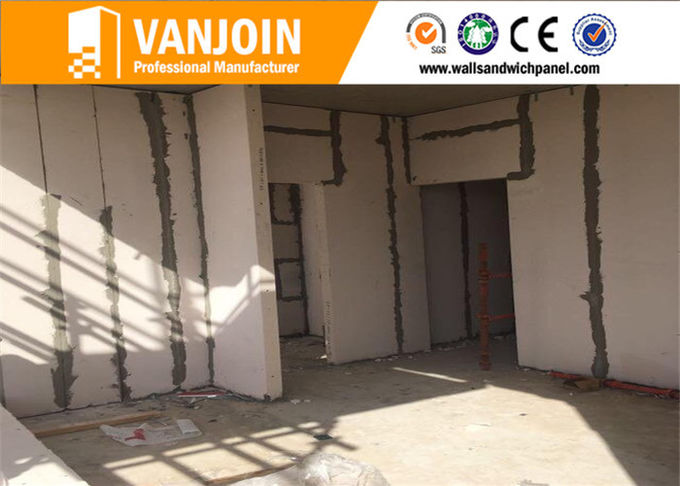

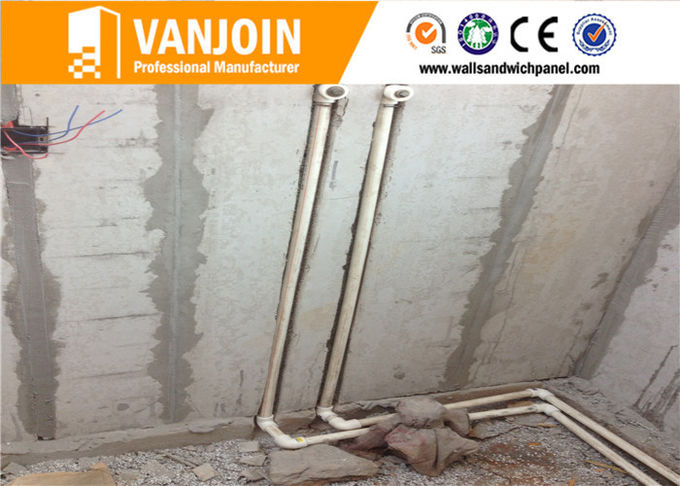

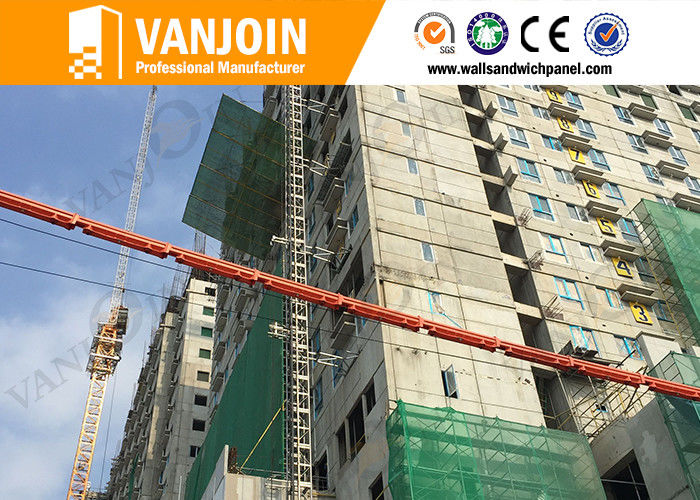

8. Lightweight EPS Sandwich Wall Panel Application
7. About US:
We are experienced in this field for 10 years;
We have a 40,000m2 factory, with 60000m2 sotcking area;
We are ranking Top 2 in China, and Top 1 in middle of China;
We are certificated with CE, , ISO9001, ISO14000, Invention Patent, STC tests, etc;
Our production capacity is 2,000,000m2/year;
Our average exports is over 400 containers/month;
Our main markets: Southeast Asia, Africa, Middle East, South America, Oceania, Europe, etc
