Thermal Insulation Construction Material Making Machinery Full Automatic

Large Image : Thermal Insulation Construction Material Making Machinery Full Automatic

Product Details:

Place of Origin:	Hubei, China
Brand Name:	Vanjoin
Certification:	CE, ISO, , BV, SASO
Model Number:	VJ-PM-YR01

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	negotiation
Packaging Details:	standard export package
Delivery Time:	45-60 days after receiving deposit
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	20 Sets Per Month

Detailed Product Description

Type:	Full Automation	Panel Length:	2270mm --3000mm (can Be Customized)
Production Capacity:	10,000m2-1,000,000m2 / Year	Machine Type:	Manual , Semi-automatic , Fully Automatic
Panel Thickness:	60/75/90/100/120/150/180mm	Warranty:	12 Months
Lifespan:	Over 20 Years	Raw Materials:	EPS, Cement,Sand,Additives

Thermal Insulation Construction Material Making Machinery Full Automatic

1. Main System:

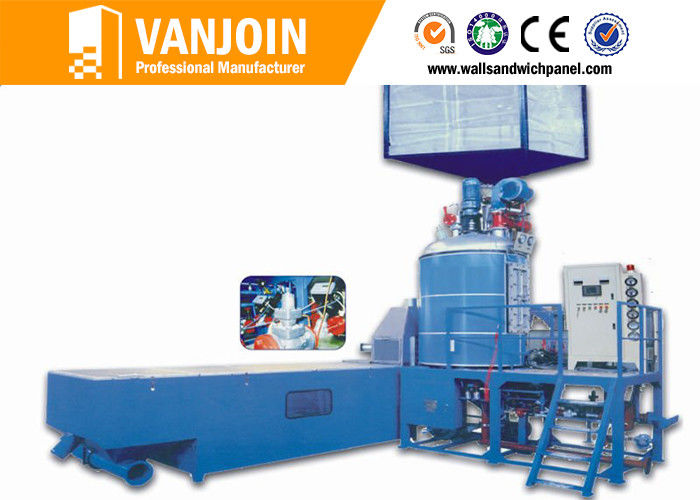

1. EPS foaming system includes boiler, eps foaming machine, etc.

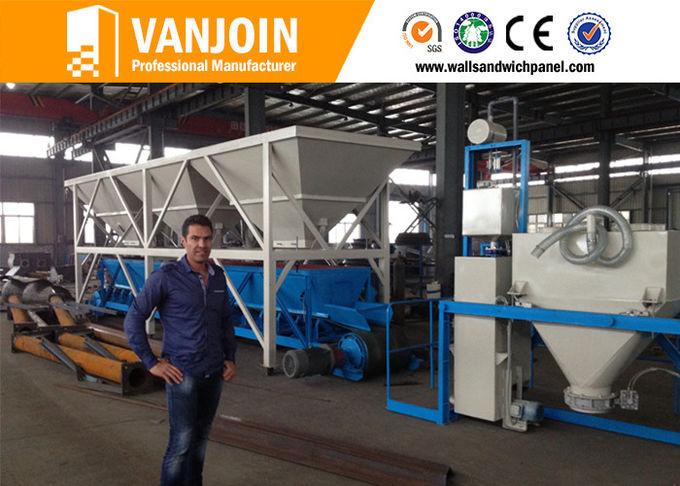

2. Raw materials storage/measuring/conveying system includes raw materials silo, storage & weighing &measuring hopper, pump, etc.

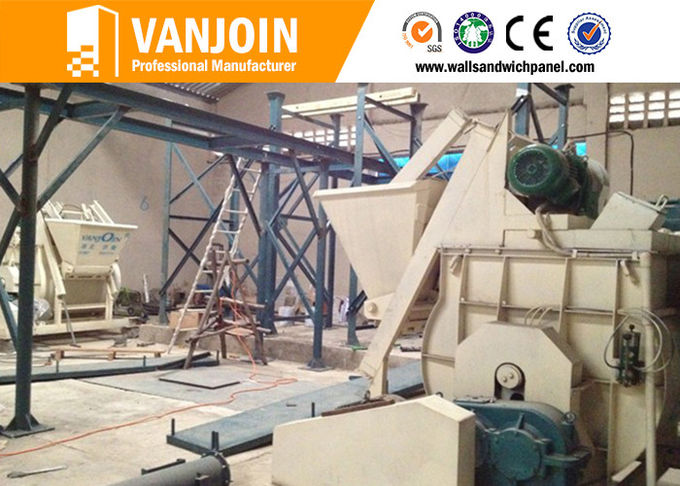

3. Mixing system includes mixing machine, electric control system, etc.

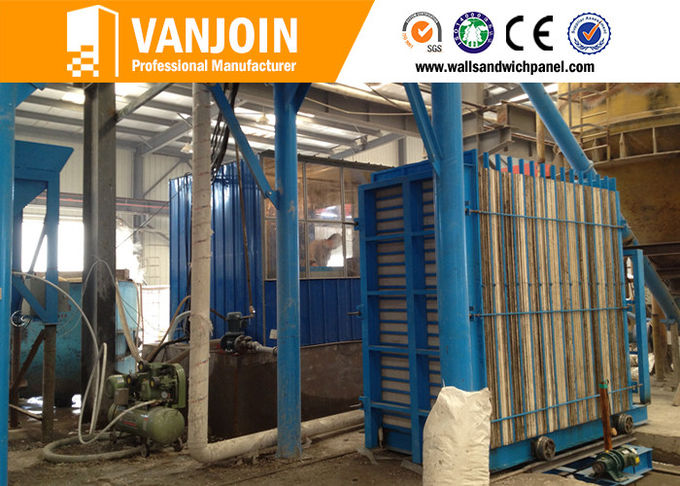

4. Forming and gating systes includes mould machine ,vibration machines, etc.

2. Specificcation of panel production line:

annual output(m2)	quantity of moulding cars(set)	quantity of workers required	prodction area(m2)	stacking area(m2)
100,000	5	8-13	500	1000
200,000	8	10-18	600	2000
300,000	10	12-20	700	3000
400,000	11	15-23	800	4000
500,000	12	18-28	900	5000
600,000	13	22-32	1000	6000
700,000	14	25-35	1100	7000
800,000	15	28-38	1200	8000
900,000	16	32-42	1300	9000
1,000,000	17	35-46	1400	10000

3. Advantages:

1. The full automatic production system designed by ourselves independently .
2. Unique raw materials measuring ,delivery and mixing system
3. We have the patent to produce the wall panel and our additiveis the best .
4. High production output & less workers
5. Environmental protection
6. Easy maintenance
7. Waste recycle utilization
8. We can supply you the materials (eps,calcium silicon board,ceramic ,etc)at a very competitive price .
9. Long-term professional services

4. Features of Wall Panel Forming Machine:

Light weight	1 person can take up two pieces of vanjoin panel
Energy-saving, Eco-friendly	100% non-asbestos
Easy to install, fast construction	3 workers can finish a 70 m2 house just by 1 week
Strong and durable	Long life 60-70 years
Heat insulation and preservation	Thermal conductivity: 0.221W/mk
Sound insulation	42-46 DB
Weatherproof; windproof	70m/s; grade 13
Fireproof	keep well about 4 hours under 1000 degree temperature
Anti-impact, anti-earthquake	Grade 8
Best hanging strength	Single point hanging force is > 1200 N
Weight capacity	400KG / square meter
