Fireproof Insulated Building Panels For Exterior Wall / Roof / Floor

China Fireproof Insulated Building Panels For Exterior Wall / Roof / Floor supplier
Fireproof Insulated Building Panels For Exterior Wall / Roof / Floor supplier Fireproof Insulated Building Panels For Exterior Wall / Roof / Floor supplier Fireproof Insulated Building Panels For Exterior Wall / Roof / Floor supplier Fireproof Insulated Building Panels For Exterior Wall / Roof / Floor supplier

Large Image :  Fireproof Insulated Building Panels For Exterior Wall / Roof / Floor

Product Details:

Place of Origin: China
Brand Name: Vanjoin
Certification: CE, BV, ISO
Model Number: VJWP-YRR58

Payment & Shipping Terms:

Minimum Order Quantity: 1X20GP Container
Price: negotiation
Packaging Details: 1. Free packing ( with normal pallet and normal packing belt ) 2. Standard exporting packing ( wraped with plastic film , edge protect and good pallet )
Delivery Time: 7~10 working days after receive payments
Payment Terms: L/C,T/T,Western Union, D/A,D/P, MoneyGra
Supply Ability: 200000 Square Meters per Mont
Contact Now
Detailed Product Description
Product Name: EPS Cement Sandwich Panel Specification(L*W*T): 2270*610*60/75/90/100/120/150mm
Raw Materials: Eps, Sand, Cement, Fly Ash, Water, Additive, Etc Usage: Partition Wall ,exterior Wall,roof And Floor
Fireproof: Under 1000 Degree For 4 Hours Sound Insulation: 40~56 DB
Anti-earthquake: Class 8-13 Service Life: More Than 70 Years

Fireproof insulated building panels For Exterior Wall / Roof / Floor



 Free sampls can provided



1. EPS Cement Sandwich Panel Composition:



Double sides surface boards, (calcium silicate boards);
Lightweight Sandwich core material:
Eps beads, (expandable polystyrene foam);
Cement;
Sand;
Vanjoin patented additive



2.EPS Cement Sandwich Panel Specification



         Name

Specification (mm)

Weight (kg/m2)

Packing (pcs and m2 per 20' FCL)

VJ Light Weight Compound

Sandwich Panel

2270x610x60

45~48

315pcs, 436m2

2270x610x75

50~53

252pcs, 349m2

2270x610x90

55~58

207pcs, 287m2

2270x610x100

60~65

189pcs, 262m2

2270x610x120

65~75

153pcs, 212m2

2270x610x150

80~90

126pcs, 175m2


3. EPS Cement Sandwich Panel Advantage:

  • Energy-saving, light weight, environment-friendly
  • Area-saving
  • Waterproof and damp proof
  • Fire-proof
  • Sound-insulation
  • Best hanging force
  • Anti-seismic and impact resistance
  • Largest Span and height thin webbed wall
  • Most civilized, healthy and high efficient construction

4.EPS Cement Sandwich Panel Technology Index:





Item

National Standards

Testing Indexes



Thickness

60mm

90mm

120mm

60mm

90mm

120mm

1

Anti-impact Capacity/times

≥5

≥5

≥5

≥8

≥10

≥15

2

Anti-bending damage load/times over deadweight

≥1.5

≥1.5

≥1.5

≥3

≥4

≥5

3

Compressive strength /Mpa

≥3.5

≥3.5

≥3.5

≥5

≥5

≥5

4

Softening coefficient

≥0.80

≥0.80

≥0.80

≥1

≥1

≥1

5

Surface density g/m2

≤70

≤90

≤110

≤55

≤70

≤85

6

Moisture rate  a/%

≤12/10/8

≤10/9/7

7

Drying shrinkage value /mm/m

≤0.6

≤0.6

≤0.6

≤0.45

≤.0.5

≤0.5

8

Hanging Force/N

≥1000

≥1000

≥1000

≥1200

≥1300

≥1500

9

Sound insulation capacity in the air /Db

≥30

≥35

≥40

≥35

≥40

≥45

10

Fire proof limit /h

≥1

≥1

≥1

≥2.5

≥3

≥4

11

Heat transfer coefficient  w/m2.k





≤1.0





≤1.0

12

Radioactivity Limit

≤1

≤1

≤1

≤1

≤1

≤1

13

IRa (Inner radiation indexes)

≤1

≤1

≤1

≤1

≤1

≤1

14

Ir (Outer radiation indexes)

≤1

≤1

≤1

≤1

≤1

≤1



5.EPS Cement Sandwich Panel Application:



For interior and exterior wall partition on steel or concrete structure building, new construction or renovations. It can replace construction materials such as block, wire spatial grid structure perlite board, perlite porous board and etc. It can widely be applied to wall materials of various high and low buildings such as bank, office building, hospital, school, hotel, mall, amusement, old house reconstruction, residence and workshop.

Fireproof Insulated Building Panels For Exterior Wall / Roof / Floor

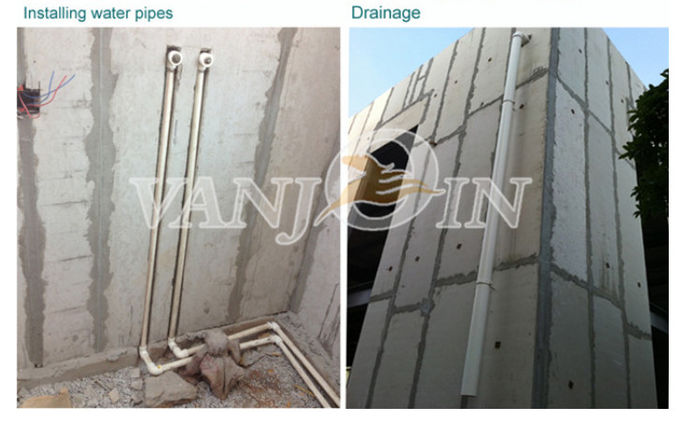

Electricity and Waterpipe Installation:

Fireproof Insulated Building Panels For Exterior Wall / Roof / Floor

6.EPS Cement Sandwich Panel Installation


Setting the line and carrying the board in position;
Sawing board basing on requirement;
Sizing cement on tenon side of two boards;
Carrying the board prepared to be installed to the installation place, correcting the wall board by gavelock and making it close tightly;
Grouting and filling starch;
Sticking fiber glass mesh;
Apply putty powder and level up;
Finished.


7.EPS Cement Sandwich Panel Supplied to:



Iran, Russia, Australia, India, Dubai, South Africa and so on.

Fireproof Insulated Building Panels For Exterior Wall / Roof / Floor

Fireproof Insulated Building Panels For Exterior Wall / Roof / Floor
