Lightweight Composite Panel Board , fireproof cement board Thermal Insulated

Certification
Good quality EPS Cement Sandwich Panel for sales
Good quality EPS Cement Sandwich Panel for sales
Customer Reviews
I thought no body cares about others any more,but you changed this.

—— Mana AI Yaseen,Saudi Arabia

I appreciate very much your very kind attention to may request and it give to me a very strong confidence in your company in your services

—— Alfredo Friedmann,Paraguay

You are so kind and good service.

—— Samuel,Indonesia

You are star.I want to be your friend

—— Gert,South Africa

I'm Online Chat Now

Lightweight Composite Panel Board , fireproof cement board Thermal Insulated

China Lightweight Composite Panel Board , fireproof cement board Thermal Insulated supplier
Lightweight Composite Panel Board , fireproof cement board Thermal Insulated supplier Lightweight Composite Panel Board , fireproof cement board Thermal Insulated supplier Lightweight Composite Panel Board , fireproof cement board Thermal Insulated supplier Lightweight Composite Panel Board , fireproof cement board Thermal Insulated supplier

Large Image :  Lightweight Composite Panel Board , fireproof cement board Thermal Insulated

Product Details:

Place of Origin: China
Brand Name: Vanjoin
Certification: CE, BV, ISO
Model Number: VJWP-YRR76

Payment & Shipping Terms:

Minimum Order Quantity: 1X20GP Container
Price: negotiation
Packaging Details: 1. Free packing ( with normal pallet and normal packing belt ) 2. Standard exporting packing ( wraped with plastic film , edge protect and good pallet )
Delivery Time: 7~10 working days after receive payments
Payment Terms: L/C,T/T,Western Union, D/A,D/P, MoneyGra
Supply Ability: 200000 Square Meters per Mont
Detailed Product Description
Product Name: EPS Cement Sandwich Panel Specification(L*W*T): 2270*610*60/75/90/100/120/150mm
Raw Materials: Eps, Sand, Cement, Fly Ash, Water, Additive, Etc Usage: Partition Wall ,exterior Wall,roof And Floor
Fireproof: Under 1000 Degree For 4 Hours Sound Insulation: 40~56 DB
Construction: 75-80 SQM Per Day Service Life: 70 Years



Lightweight Composite Panel Board , fireproof cement board Thermal Insulated

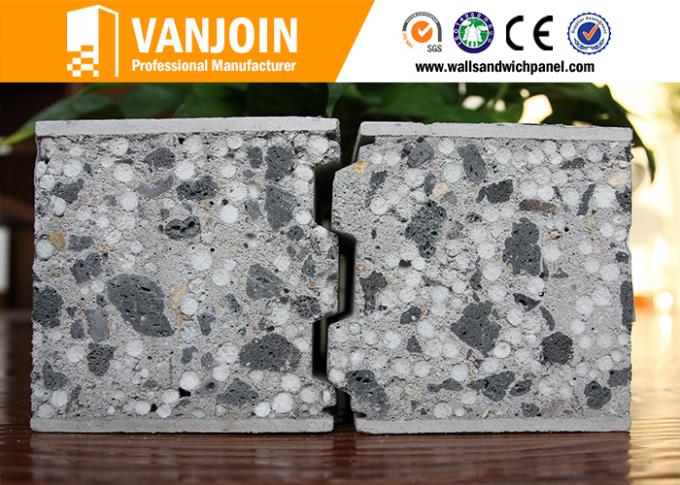

1. Composition:

Double sides surface boards, (calcium silicate boards);

Sandwich core material:

Eps beads, (expandable polystyrene foam);

Ceramicite, ceramsite, ceramic

Cement;

Sand;

Vanjoin patented additive

Lightweight Composite Panel Board , fireproof cement board Thermal Insulated

2.Specification



         Name

Specification (mm)

Weight (kg/m2)

Packing (pcs and m2 per 20' FCL)

VJ Light Weight Compound

Sandwich Panel

2270x610x60

45~48

315pcs, 436m2

2270x610x75

50~53

252pcs, 349m2

2270x610x90

55~58

207pcs, 287m2

2270x610x100

60~65

189pcs, 262m2

2270x610x120

65~75

153pcs, 212m2

2270x610x150

80~90

126pcs, 175m2


3. Advantage:

  • Energy-saving, light weight, environment-friendly
  • Area-saving
  • Waterproof and damp proof
  • Fire-proof
  • Sound-insulation
  • Best hanging force
  • Anti-seismic and impact resistance
  • Largest Span and height thin webbed wall
  • Most civilized, healthy and high efficient construction

4. Technology Index:





Item

National Standards

Testing Indexes



Thickness

60mm

90mm

120mm

60mm

90mm

120mm

1

Anti-impact Capacity/times

≥5

≥5

≥5

≥8

≥10

≥15

2

Anti-bending damage load/times over deadweight

≥1.5

≥1.5

≥1.5

≥3

≥4

≥5

3

Compressive strength /Mpa

≥3.5

≥3.5

≥3.5

≥5

≥5

≥5

4

Softening coefficient

≥0.80

≥0.80

≥0.80

≥1

≥1

≥1

5

Surface density g/m2

≤70

≤90

≤110

≤55

≤70

≤85

6

Moisture rate  a/%

≤12/10/8

≤10/9/7

7

Drying shrinkage value /mm/m

≤0.6

≤0.6

≤0.6

≤0.45

≤.0.5

≤0.5

8

Hanging Force/N

≥1000

≥1000

≥1000

≥1200

≥1300

≥1500

9

Sound insulation capacity in the air /Db

≥30

≥35

≥40

≥35

≥40

≥45

10

Fire proof limit /h

≥1

≥1

≥1

≥2.5

≥3

≥4

11

Heat transfer coefficient  w/m2.k





≤1.0





≤1.0

12

Radioactivity Limit

≤1

≤1

≤1

≤1

≤1

≤1

13

IRa (Inner radiation indexes)

≤1

≤1

≤1

≤1

≤1

≤1

14

Ir (Outer radiation indexes)

≤1

≤1

≤1

≤1

≤1

≤1



5.Application:



For interior and exterior wall partition on steel or concrete structure building, new construction or renovations. It can replace construction materials such as block, wire spatial grid structure perlite board, perlite porous board and etc. It can widely be applied to wall materials of various high and low buildings such as bank, office building, hospital, school, hotel, mall, amusement, old house reconstruction, residence and workshop.

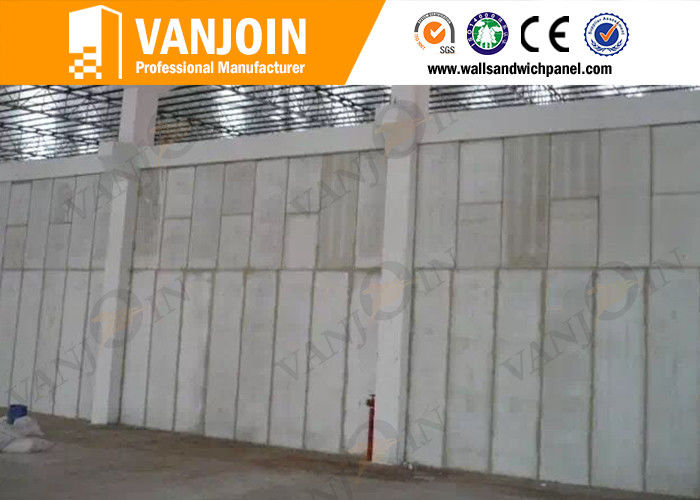

a. Lightweight Precast Concrete Panels for Exterior Wall

Lightweight Composite Panel Board , fireproof cement board Thermal Insulated

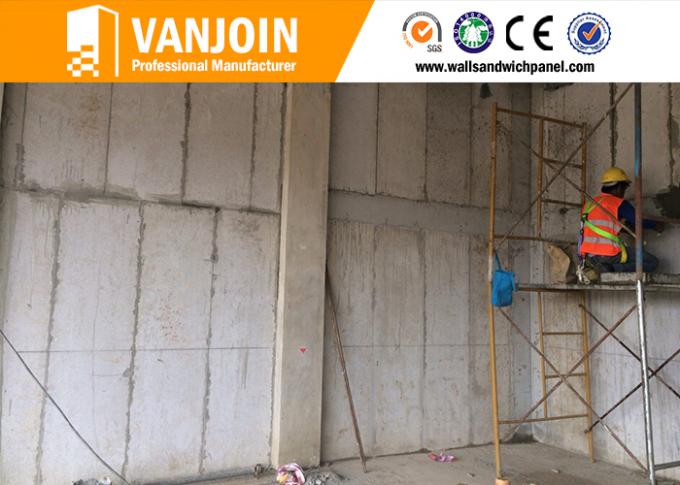

b. Lightweight Precast Concrete Panels for Interior Wall

Lightweight Composite Panel Board , fireproof cement board Thermal Insulated

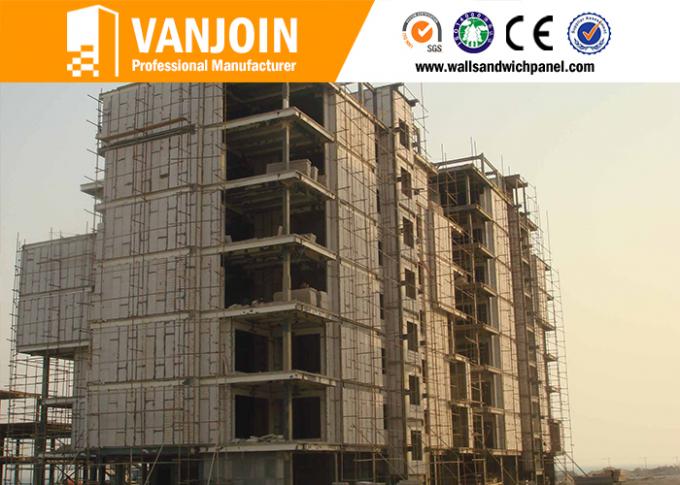

c. Lightweight Precast Concrete Panels for Exterior Wall and Roof

Lightweight Composite Panel Board , fireproof cement board Thermal Insulated
6.Supplied to:



Iran, Russia, Australia, India, Dubai, South Africa and so on.

Lightweight Composite Panel Board , fireproof cement board Thermal Insulated
