150Mm eps Precast Concrete Wall Panels , lightweight building material for prefab house

China 150Mm eps Precast Concrete Wall Panels , lightweight building material for prefab house supplier
150Mm eps Precast Concrete Wall Panels , lightweight building material for prefab house supplier 150Mm eps Precast Concrete Wall Panels , lightweight building material for prefab house supplier 150Mm eps Precast Concrete Wall Panels , lightweight building material for prefab house supplier 150Mm eps Precast Concrete Wall Panels , lightweight building material for prefab house supplier 150Mm eps Precast Concrete Wall Panels , lightweight building material for prefab house supplier

Large Image :  150Mm eps Precast Concrete Wall Panels , lightweight building material for prefab house

Product Details:

Place of Origin: China
Brand Name: Vanjoin
Certification: CE, BV, ISO
Model Number: VJWP-SW-12

Payment & Shipping Terms:

Minimum Order Quantity: 1X20 GP
Price: negotiation
Packaging Details: 1. free package 2. standard package
Delivery Time: 7-10 working days after received advanced payment
Payment Terms: T/T, L/C, Western Union,MoneyGram,etc.
Supply Ability: 200,000 m2 per month
Contact Now
Detailed Product Description
Size (L*W*T): 2270mmx610mmx60mm(75,60,100,120,150) Panel Material: Nonmetal
Application: Exterior Wall, Interior Wall, Roof And Floor Sound Insulation: 46dB
Fireproof: 240 Minutes – Class A Live Load: 600kg/m2
Anti-earthquake: 8-13 Grade Service Life: 50-60 Years
Thickness: 60,75,90,100,120,150mm

150Mm eps Precast Concrete Wall Panels , lightweight building material for prefab house



1. Description of wall Panel



The product can replace construction materials like red brick,clay solid brick, color-coated steel sandwich board,gypsum block,wire spatial grid structure perlite board,perlite poroum board, etc.It can widely be applied to wall materials of various high and low building, such as: bank, office building, hospital, school, hotel, mall, amusement hall, active barrack, old house reconstruction, residence and workshop.



Composition

Core materials: cement, EPS, and fly ash or sand core

Surface materials: fiber reinforced calcium silicone board or cement calcium silicone board



Size and Dimension: (L*W*T)

2270mm X 610mm X60mm (75, 90,100,120,150)



2. Advantages of wall Panel

Light weight 1 person can take up two pieces of Vanjoin panel
Energy-saving, Eco-friendly 100% non-asbestos
Easy to install, fast construction 3 workers can finish a 70 m2 house just by 1 week
Strong and durable Long life 60-70 years
Heat insulation and preservation Thermal conductivity: 0.221W/mk
Sound insulation 42-46 DB
Weatherproof; windproof 70m/s; grade 13
Fireproof The panel can keep well about 4 hours under 1000 degree temperature
Anti-impact, anti-earthquake Grade 8
Best hanging strength Single point hanging force is > 1200 N
Weight capacity

600KG / square meter





3. Comparision with other building materials

Technology index Metal frame and plaster board GRC Board Gypsum block VJ EPS Panel
Weight 20kg/m2 40kg/m2 45kg/m2 35kg/m2(60mm thickness)
Sound insulation Almost no normal poor Excellent 46dB
Waterproof poor normal poor excellent
Heat insulation no normal normal excellent
Anti-impact capacity/Hanging force no can impact,good hanging force can impact,normal hanging force High impact single hanging force 50KGS
Decoration difficulty hard,with limiations General difficulty General difficulty Easy and without any limiations
Wall thickness 91mm 60mm 75mm 60mm, increased interior space
Useful life 2-3 years 20-30 years 15-20 years 60-70 years
Material secondary use no some available almost no 80% cam be used
Construction efficiency faster faster faster fast



4.Specifications of wall panel

Name

Size(L*W*T)mm

Weight (kg/m2)

Packing       (pcs/m2 20’GP)

Application

EPS Cement Sandwich Wall Panel



2270x610x60

45-48

315 pcs /436 m2

Roof, interior wall

2270x610x75

50-53

252pcs / 349 m2

Interior wall

2270x610x90

55-58

207pcs / 287 m2

Interior/exterior wall

2270x610x100

60-65

189pcs / 262 m2

Interior/exterior wall

2270x610x120

65-75

153pcs / 212 m2

Exterior wall

2270x610x150

80-90

126pcs / 175 m2

Exterior wall

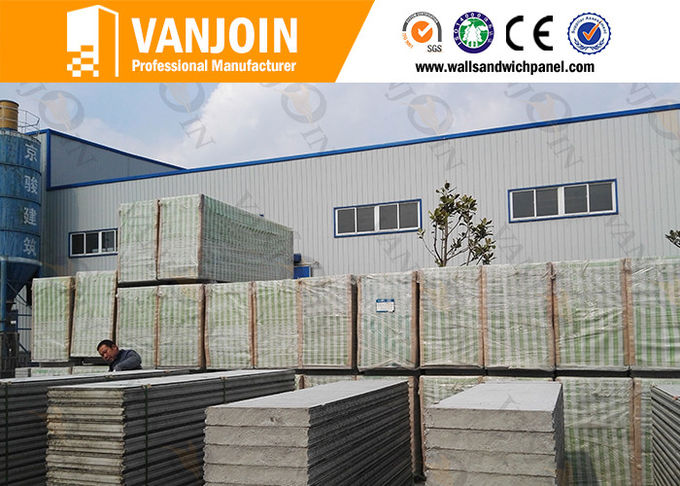

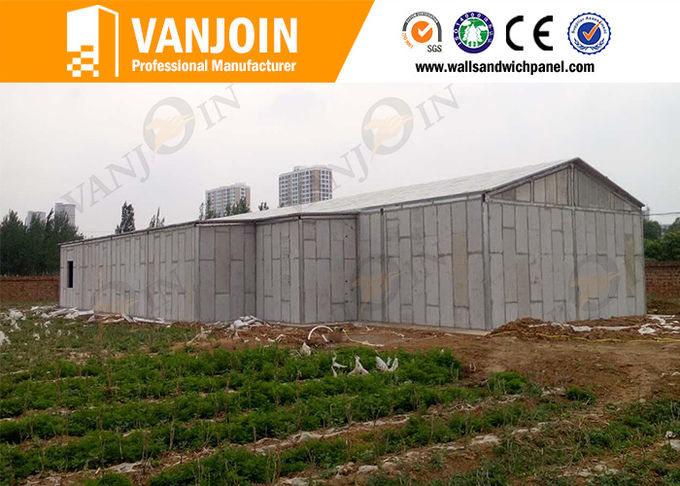

4. Package and application Picture:

150Mm eps Precast Concrete Wall Panels , lightweight building material for prefab house

150Mm eps Precast Concrete Wall Panels , lightweight building material for prefab house

150Mm eps Precast Concrete Wall Panels , lightweight building material for prefab house
