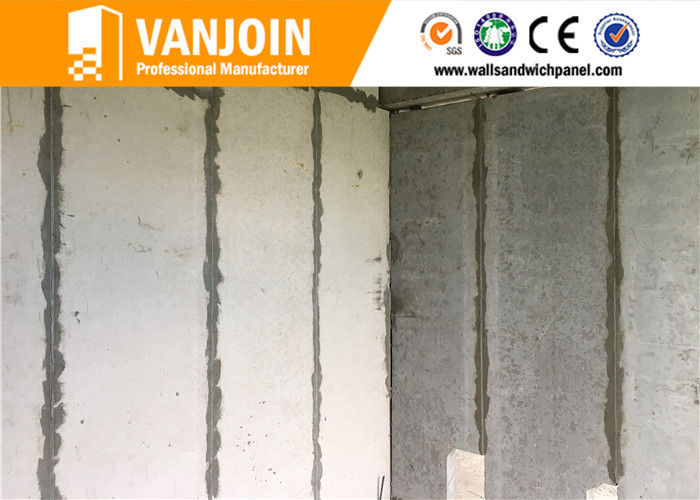

Concrete Engineering Siding Exterior Composite Insulated Panels Damp Proof

Large Image : Concrete Engineering Siding Exterior Composite Insulated Panels Damp Proof

Product Details:

Place of Origin:	China
Brand Name:	Vanjoin
Certification:	CE, BV, ISO
Model Number:	WP-AS19

Payment & Shipping Terms:

Minimum Order Quantity:	Two 20GP
Price:	negotiation
Packaging Details:	Standard exporting packing (wrapped with plastic thin film, edge protect and good pallet)
Delivery Time:	15 working days after received the payment
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	200,000 sqm per month

Detailed Product Description

Color:	Gray	Type:	Composite Sandwich Panel, Insulation Panel
Fireproof:	Grade A	Soundproof:	Excellent, 46dB
Service Life:	60-70 Years	Usage:	Inner Wall, Outer Wall, Floor And Roof Wall Panel
Normal Size:	2270 * 610 * 60/ 75/ 90/ 100/ 120/ 150mm

Concrete Engineering Siding Exterior Composite Insulated Panels Damp Proof

1. Introduction and Composition
The soundproof partitioning wall interior is wide used as division for all kinds of house, especially for the steel structure and concrete structure house. It provides excellent insulation performance of noise, voice insulation, fireproof, also can save room area 5%.

Double sides surface boards, (calcium silicate boards);
Sandwich core material:
Eps beads, (expandable polystyrene foam);
Cement;
Sand;
Vanjoin patented additive
Concrete Engineering Siding Exterior Composite Insulated Panels Damp Proof
2. Specification
Length * Width * Thichness (mm)
2270*610*60
2270*610*75
2270*610*90
2270*610*100
2270*610*120
2270*610*150
Other size can be customized.

3. Features

Name	Features
Light weight	Capacity 650kg/m3, 1/6 of traditional wall with same volume
Space saving	Save 4.26m2 per 100 m2
Waterproof	Excellent
Fireproof	A Grade,4 hours 1000 degree fire
Sound Insulation	46dB, soundproof, sound absorption
Hanging force	Single point hanging force 50kg while embed hanging force can exceed 150kg
Windproof	75m/s; 270km/h
Anti-seismic	Class 8, anti earthquake
Anti-impact	High strength, 1.5 times of traditional wall
Fast construction	8~10 times of traditional wall, easy decoration
Eco-friendly	100% no asbestos, asbestos free
Service Life	60-70 years life span

Concrete Engineering Siding Exterior Composite Insulated Panels Damp Proof
4. Performance

Vanjoin Panels Performance
Thermal conductivity(BS 874: Part 2: 1986)	0.221 W/mK
Flexural Strength(longitudianal)	4.27 MPa
Flexural Strength(transverse)	4118N
Moisture Movement	0.06%
Moisture Content	9%
Resistance to continuous heating	80 °c
Surface Alkalinity	pH 7-10
Non-combustibility(face Boards)	BS EN ISO 1182: 2002 BS476: Part 4 GB8624-1997, Grade A
Heat of combustion(face boards)	BS EN ISO 1716: 2002
Building regulations classification(face boars)	Euro Class A1
Fire rated partition	2 hour FRP BS EN 1364-1 BS 476: Part 22 GB/T9978
Water tightness to ASTM C1185	No droplets observed behind the panel, Test of 24 hours at 250 mm water head
Partition stiffness-heavy duty grade (BS 5234; Part2: 1992, Annex A)	Pass
Resistance to substructure damage by multiple impacts from a large soft body -heavy duty grade( BS 5234; Part2: 1992, Annex E)	No collapse of dislocation
Surface damage by hard body impact- heavy duty grade (BS 5234; Part2: 1992, Annex B)	Pass
Effects of door slamming-heavy duty grade BS 5234; Part2: 1992, Annex B	Pass
resistance to crowd pressure-heavy duty grade BS 5234; Part2: 1992, Annex G	No collapse of damage
Resistance to anchorage(high level wall cupboard) eccentric downward BS 5234; Part2: 1992, Annex K	No damage or detachment of anchor
Anchorage Load	45 kg
Acoustic performance - 60 mm thick - 75 mm thick - 100 mm thick - 120 mm thick - 150 mm thick	38 dB 40 dB 42 dB 44 dB 46 dB

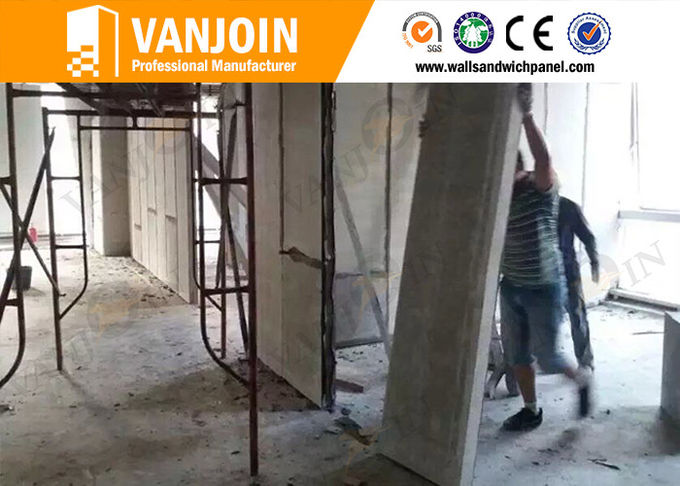

5. Installation
Setting the line and carrying the board in position;
Sawing board basing on requirement;
Sizing cement on tenon side of two boards;
Carrying the board prepared to be installed to the installation place, correcting the wall board by gavelock and making it close tightly;
Grouting and filling starch;
Sticking fiber glass mesh;
Apply putty powder and level up;
Finished.
6. Packing and Shipping

	Specification (LWT)(mm)	Weight (kg/m2)	Packing (pcs/m2 per 20’GP)	Application
Vanjoin EPS Cement Sandwich Wall Panel	227061060	45~48	315pcs/436m2	Roof system
	227061075	50~53	252pcs/349m2	Floor system
	227061090	55~58	207pcs/287m2	Interior/Exterior wall
	2270610100	60~65	189pcs/262m2	Interior/Exterior wall
	2270610120	65~75	153pcs/212m2	Exterior wall
	2270610150	80~90	126pcs/175m2	Exterior wall

7. Application:
Eps cement sandwich wall panels can be widely used as roof, floor, prefab house, high-rise building, villa, interior wall, inner wall, internal wall, etc.
