Product Details:
Payment & Shipping Terms:
|
| Types: | EPS Cement Sandwich Panel | Application: | Interior And Exterior Wall, Roof And Floor |
|---|---|---|---|
| Thickness: | 60, 75, 90, 100, 120, 150mm | Sound Insulation: | 38dB-46dB |
| Non-combustibility: | Grade A, BS EN ISO1182:2002 | Waterproof: | Good |
| Light Weight: | 1/6 Of Traditional Brick | Fireproof: | 4 Hours FRP |
| Anti-seismic: | 7-8 Class | Heat Insulated: | Good |
| Fast Consruction: | 50-80 ㎡/day | Sample: | Free Eps Sandwich Panel Sample Can Be Provided |
Sound Proof EPS Cement Sandwich Panel , Insulated Partition Wall Panels
Vanjoin lightweight compound EPS sandwich panels is a kind of energy saving light weight heat and thermal insulation compound board. It is a new economic construction material, which can replace red brick, clay solid brick, air brick, color-coated steel sandwich wall board, gypsum block, wire spatial grid structure perlite board and perlite porous board.
1. Composite of Vanjoin EPS Cement Sandwich Wall Panel
EPS Sandwich Wall Panel take 5mm Calcium Silicon Board as surface panel, with EPS / ceramsite / perlite, Cement, Sand or fly ash as filler.
2. Specification of Vanjoin EPS Cement Sandwich Wall Panel
|
Product Name |
Specification (mm) |
Weight (kg/m2) |
Packing (pcs/㎡ per 20GP) |
Application |
|
Vanjoin light weight energy-saving compound sandwich panels |
2270x610x60 | 45~48 | 315pcs/436㎡ | Roof |
| 2270x610x75 | 50~53 | 252pcs/349㎡ | Interior wall | |
| 2270x610x90 | 55~58 | 207pcs/287㎡ | Interior/Exterior wall | |
| 2210x610x100 | 60~65 | 189pcs/262㎡ | Interior/Exterior wall | |
| 2210x610x120 | 65~75 | 153pcs/212㎡ | Exterior wall | |
| 2210x610x150 | 80~90 | 126pcs/175㎡ | Exterior wall | |
| 2210x610x180 | 95~105 | 99pcs/138㎡ | Exterior wall | |
| Allowed Tolerance: Length±5mm; Width±2mm; Thickness±1mm; Diagonal±2mm | ||||
Remark: All kinds of EPS sandwich wall panel can be customized by customers' specific requirements,
such as density and length of panels.
3. Application of Vanjoin EPS Cement Sandwich Wall Panel
1) Light weight: 1/6 of traditional wall;
2) Space saving: Save 4.26m2 per 100 m2 area;
3) Water-proof, wind-proof;
4) Fireproof: 240 mins of 1000 degree fire;
5) Sound insulation 38dB-46dB, heat insulation;
6) High strength, anti-impact;
7) Anti-seismic: Class 7-8;
8) Great hanging force: Single point hanging force 50kg, Embed hanging force 150kg;
9) Fast construction: 8-10 times of traditional wall;
10) Easy decoration: convenient for pipeline embeded;
11) Eco-friendly: 100% non-asbestos
12) Recyclable and long life span: 60-70 years service life. ect.
5. Packing Size & Details of Vanjoin EPS Cement Sandwich Wall Panel

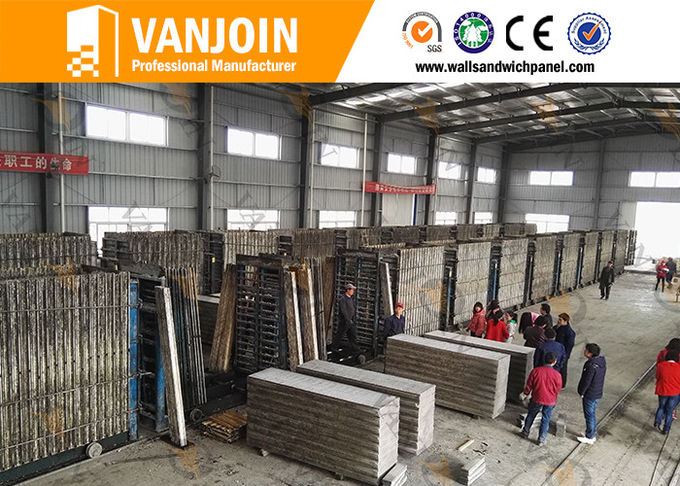

6. Vanjoin Company Information
1)Vanjoin is a proffesional manufacturer of EPS cement sandwich wall panel for 10 years.
2) We have a 40,000m2 factory, with 60000m2 stocking area;
3) We produce sandwich panel, sandwich panel making machine, soft ceramic tiles and soft ceramic tiles making machine
4) We are certificated with CE, , ISO9001, ISO14000, Invention Patent, STC tests, etc;
5) Our production capacity is 4,000,000m2/year; Our average exports is over 600 containers/month;
6) Our main markets: Southeast Asia, Africa, Middle East, South America, Oceania, Europe, etc.
7). Certificate : ISO, SGC, PATENT, BV, CE, TEST REPORT, ect.

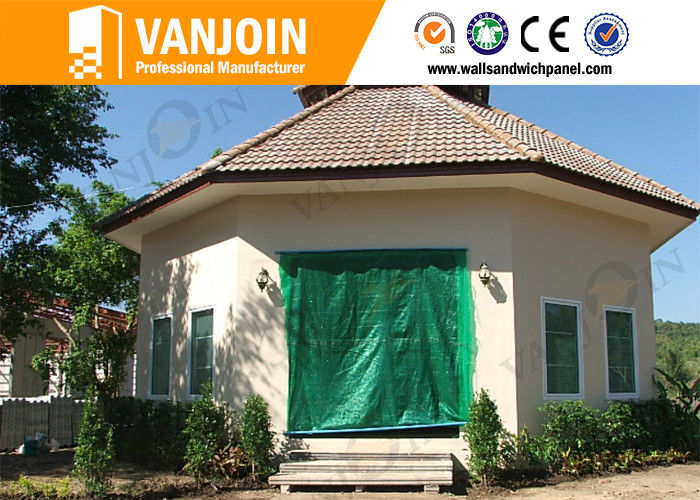

7. Photos of EPS Cement Sandwich Wall Panel for your reference
