High Efficiency Eps Sandwich Panel Machine CE Certificated EPS Board Maker

China High Efficiency Eps Sandwich Panel Machine CE Certificated EPS Board Maker supplier
High Efficiency Eps Sandwich Panel Machine CE Certificated EPS Board Maker supplier High Efficiency Eps Sandwich Panel Machine CE Certificated EPS Board Maker supplier High Efficiency Eps Sandwich Panel Machine CE Certificated EPS Board Maker supplier High Efficiency Eps Sandwich Panel Machine CE Certificated EPS Board Maker supplier

Large Image :  High Efficiency Eps Sandwich Panel Machine CE Certificated EPS Board Maker

Product Details:

Place of Origin: Hubei, China
Brand Name: Vanjoin
Certification: CE, ISO, , BV, SASO
Model Number: VJ-PM-YR11

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: negotiation
Packaging Details: standard export package
Delivery Time: 45-60 days after receiving deposit
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 20 Sets Per Month
Detailed Product Description
Raw Material: Cement, Sand Or Fly Ash, Eps Foam, Water, Addtivies, Etc Production Capacity: 10,000m2-1,000,000m2 / Year
Usage: Produce Sandwich Wall Panels Wastage: Low And Recyclable
Machine Maintainence: Easy Technical Support: Over 10 Years Full Support
Lifespan: Over 20 Years Warranty: 12 Months

High Efficiency Eps Sandwich Panel Machine , CE Certificated EPS Board Maker



1. About VANJOIN Production Line & Service:



We not only provide you the complete machines, but also our 10-years' producing technology, successful machine assembling experience abroad, rich experience of panel installation, all-around technical support, and permanent sharing of new products & new technology, etc.



2. Applications of VANJOIN Sandwich Panel:



It's a kind of light weight and energy-saving compound board. It has been widely used for Exterior Wall, Interior Wall, Roof and Floor on house, villa, hotel, apartment, shoppingmall, school, hospital, warehouse, etc.



3. VANJOIN Service and Support:



1. Investment Cost Calculation

2. Factory Layout Design

3. Production Line Layout Design

4. Manual Training, producing training, instrallation training, etc.

5. Machine Assembling Guidance at site

6. Sharing of R&D achievements

7. Full Technical Support for over 10 years in this field.



4. Specification of Mould Car:


VJ-HT2270

Name

Main Parameters

Overall Dimensions(L*W*H)

3180*1380*3480mm

Weight

2800KG

Mobie Power(KW)

2.2

Mobie Speed(m/min)

≤60

Main Components

Host

chassis assembly (power device), former stands, after stands, after plate, rod

Accessories

pressing plate, side mould

Production Information

Thickness (mm)

Width (mm)

Length (mm)

Quantity (pcs/set)

Area (m2/set)

Raw Material (m2)

60

610

2270

60

83.0

4.15

75

610

2270

50

69.2

4.50

90

610

2270

42

58.1

4.65

100

610

2270

40

55.3

4.98

120

610

2270

34

47.0

5.17

150

610

2270

28

38.7

5.42

180

610

2270

22

30.4

5.77

Remarks

Two transition car, production line conversion use, one set cheer machine, spray release agent use, pour table, track.





5. Outstanding Advantages:

 Measuring precisely ensuring each panel is with exactly same materials and ratio
 Easy maintenance by demounting the broken piece
 Recycling use the eps foam& eco-friendly
 Taking good use of local resources: sand
 Fully closed working ensuring clear factory with less pollution

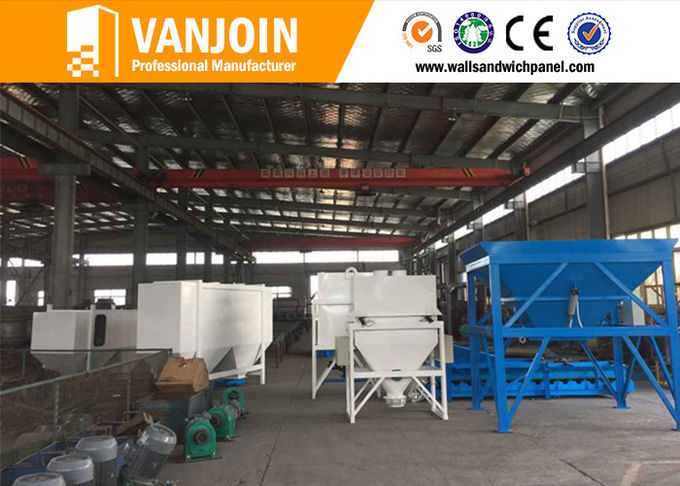

6. Main Machinery

1. Storage silo ( cement silo)
2. Sand stroage silo
3. Water storage tank
4.EPS foaming system

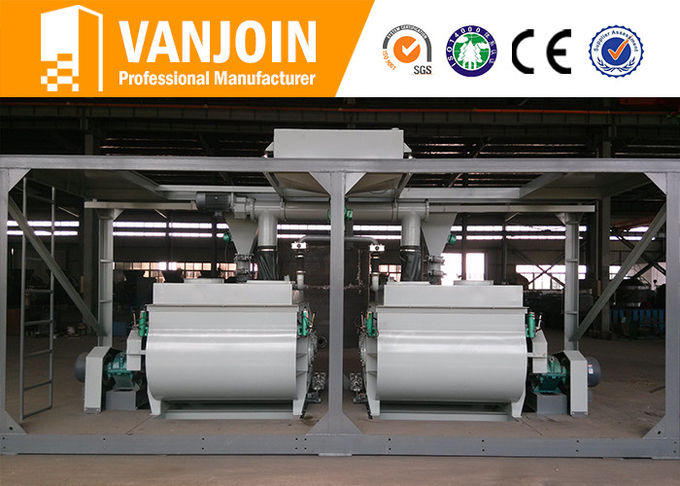

5. Automatic mixing system

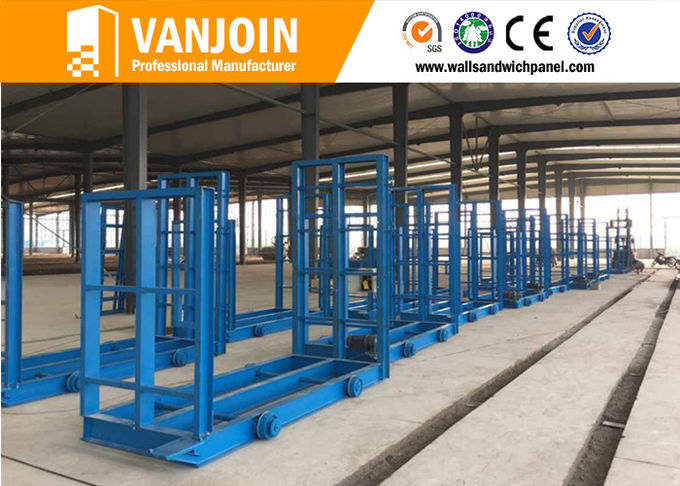

6. Vertical mould car
7. Railway
8. Auto Stirring plate



7. Wall Panel Special Features:



Light weight

One sixth of the brick walls

Energy-saving, Eco-friendly

100% non-asbestos, no pollution

Strong and durable

Long life time 60-70 years

Heat insulation and preservation

Thermal conductivity: 0.0856 W/m2.k

Sound insulation

42-46 DB,  (brick wall only 35dB)

Fireproof

The panel can keep well gor 4 hours under 1000 degree
temperature

Weatherproof; windproof

65m/s

Anti-impact, anti-earthquake

Grade 8

Best hanging strength

Single point hanging force is over 70kg, 150kg with
embedded cement

Weight capacity

400KG / square meter

Fast Installation

25m2/person/day

High efficiency Construction

Construction efficiency: 8 times of traditional brick (block) walls

Area-saving

Every 100m2 house, 4.26m2 will be increased.
