Product Details:
Payment & Shipping Terms:
|
| Face Board: | Calcium Silicate Board | Cor Materials: | EPS, Cement, Sand, Additives |
|---|---|---|---|
| Standard Length: | 2270mm | Standard Width: | 610mm |
| Standard Thickness: | 60mm, 75mm, 90mm, 100mm, 120mm, 150mm | Application: | Interior Wall, Exterior Wall, Flooring, Roofing |
| Fireproof: | 4 Hours | Sound Insulation: | 46dB |
| Lifespan: | 70 Years | Certificate: | CE, ISO, , BV, Patent |
EPS Foam Cement Lightweight Sandwich Wall Panels For Villa House
1. Brief Information

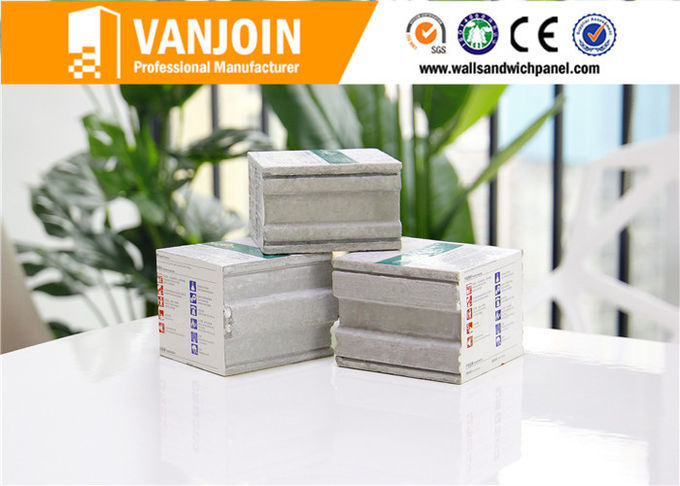

Type | Sandwich wall panel |
Material | Face boards are calcium silicate board, inner materials are eps foam, cement, sand, additives, etc. |
Size | Standard length 2270mm, width 610mm, thickness 60mm,75mm,90mm,100mm,120mm,150mm. |

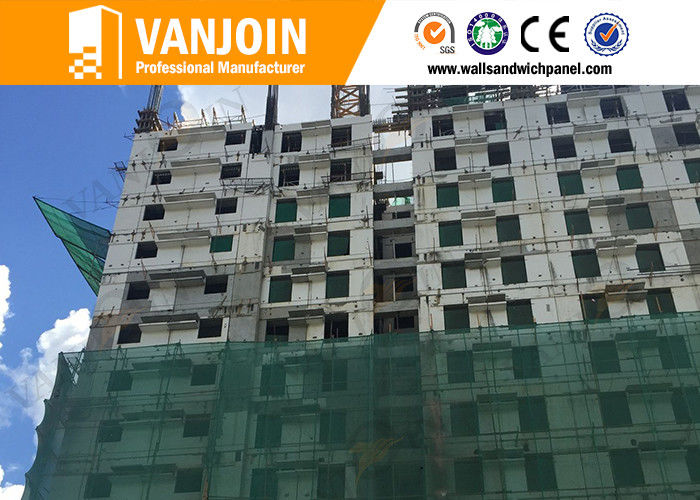

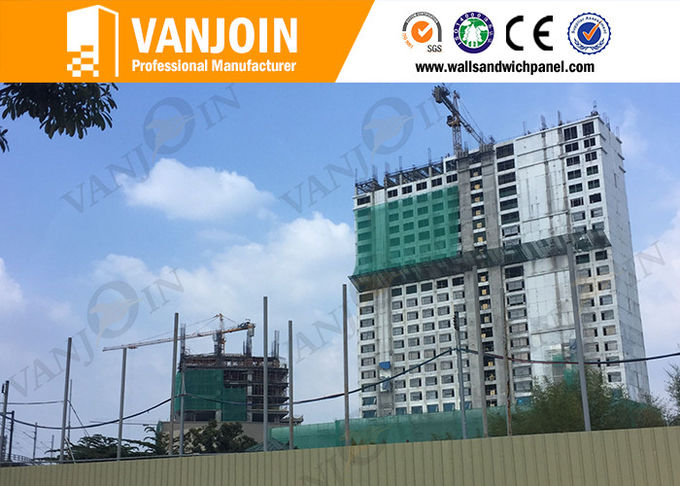

Application | External and internal wall for various houses and buildings |
Joining Method | Tongue & groove type |
Supply ability | 200,000m2 per month. |
Delivery time | Usually 7 days after receiving prepayment. |
Payment terms | T/T, L/C. |
Packing | Exporting standard pallets |
Samples | Free samples are available. |
Certificates | CE,ISO,,BV, with test reports and patents |
2. Types
EPS cement sandwich wall panel (with face board and without face board)
Ceramiste sandwich wall panel (with face board and without face board)
Perlite sandwich wall panel (with face board and without face board)
3. Specification and Weight and Loading Information
Name | Size(L*W*T)MM | Weight(KG) | Loading(PCS/M2 per 20ft) |
Fast Installation Composite Panel Board Durable Sandwich Wall Panel | 2270*610*60 | 45-48 | 315 pcs / 436 |
2270*610*75 | 50-53 | 252 pcs / 349 | |
2270*610*90 | 55-58 | 207 pcs / 287 | |
2270*610*100 | 60-65 | 189 pcs / 262 | |
2270*610*120 | 65-75 | 153 pcs / 212 | |
2270*610*150 | 90-90 | 126 pcs / 175 |
4. Features
Lightweight | 1 person can carry panel easily |
Eco-friendly | 100% non-asbestos |
Fast Construction | 3 workers can install 60-80m2 per day |
Strong,Durable and Long Lifespan | 70 years |
Sound Insulation | 42-46 dB |
Windproof | 65m/s |
Fireproof | 4 hours |
Anti-earthquake | Grade 8-9 |
Best hanging force | Single point hanging force is 50kg |
Weight capacity | 650KG / square meter |

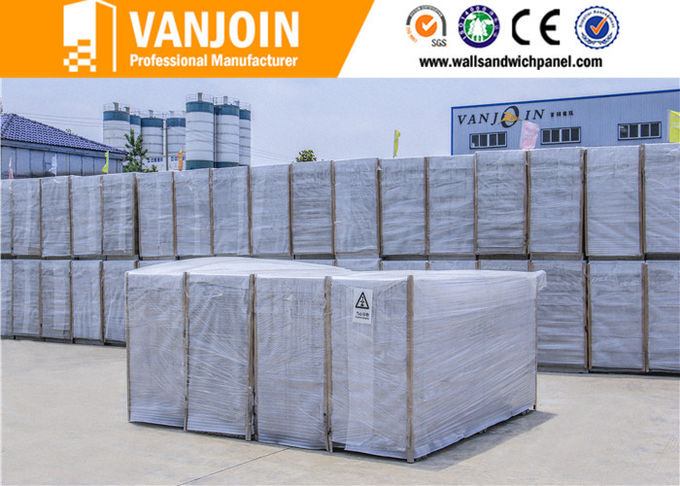

5. Packing
Standard exporting packing
Wrapped with plastic thin film,polyethylene foamed sheet,edge protect,packing belt,solid pallets.
18 pallets in a 20'GP
EPS Foam Cement Lightweight Sandwich Wall Panels For Villa House
