Product Details:
Payment & Shipping Terms:
|
| Features: | Fast Construction, Anti-earthquake | Product Name: | Construction Material Making Machinery |
|---|---|---|---|
| Material: | Metal | Color: | Red, Grey, Blue, Customer Design |
| Proudcts: | Vertical, Boiler, Foamin Machines, Etc | Panel Use For: | Exterior Wall, Interior Wall, Roof, Floor |
| Shipping With: | Compression Mould | Service Life: | 20 Years |
| Loading: | 20' GP | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |

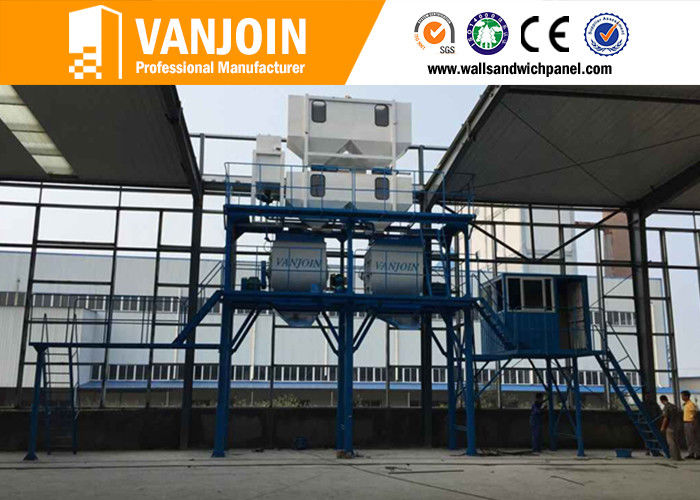

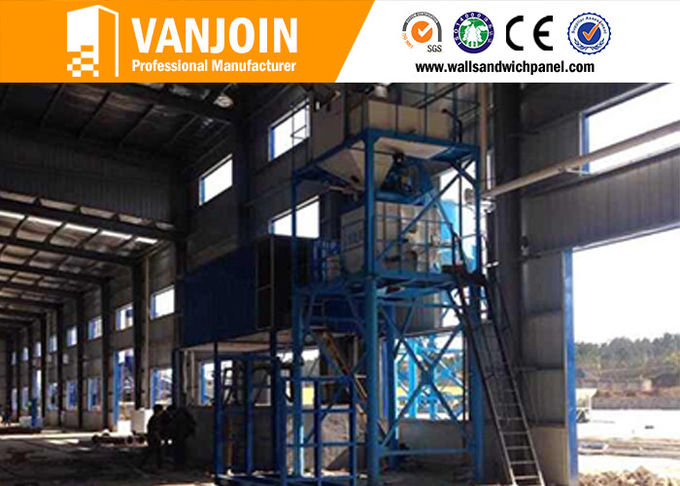

EPS Cement Wall Panel Construction Material Making Machinery With CE Certification
I . Why Choose VANJOIN Production Line?
2 . Outstanding Advantages:
v Over 20 years service life
v Maintenance time: 1 year
v Fully automatic production system
v Professional installation service
v High output with less workers
v Unique Operation Software
v Unique Addictives
v Investment cost calculation
v Factory area design
v Production line layout design
v Production capacity calculation
v Provide engineers for installation and guidance on-site
6 . Production Data of Construction Material Making Machinery:
|
|
| Specification(L*W*T) | Output of One Mould Car |
| 2270mm*610mm*60mm | 60 pcs/set |
| 2270mm*610mm*75mm | 50 pcs/set |
| 2270mm*610mm*90mm | 42 pcs/set |
| 2270mm*610mm*100mm | 40 pcs/set |
| 2270mm*610mm*120mm | 34 pcs/set |
| 2270mm*610mm*150mm | 28 pcs/set |
| 2270mm*610mm*180mm | 22 pcs/set |
5. Features of Construction Material Making Machinery:
|
Light weight |
1 person can take up two pieces of vanjoin panel |
|
Energy-saving, Eco-friendly |
100% non-asbestos |
|
Easy to install, fast construction |
3 workers can finish a 70 m2 house just by 1 week |
|
Strong and durable |
Long life 60-70 years |
|
Heat insulation and preservation |
Thermal conductivity: 0.221W/mk |
|
Sound insulation |
42-46 DB |
|
Weatherproof; windproof |
70m/s; grade 13 |
|
Fireproof |
keep well about 4 hours under 1000 degree temperature |
|
Anti-impact, anti-earthquake |
Grade 8 |
|
Best hanging strength |
Single point hanging force is > 1200 N |
|
Weight capacity |
400KG / square meter |
7 . Workers and Area Requirement of Construction Material Making Machinery:
| Annual Production Capacity | Workers Requirement | Production Area Requirement |
| 100,000 m2 | 42595 | 500m2 |
| 200,000 m2 | 42661 | 600m2 |
| 300,000 m2 | 42724 | 700m2 |
| 400,000 m2 | 15-23 | 800m2 |
| 500,000 m2 | 18-28 | 900m2 |
| 600,000 m2 | 22-32 | 1000m2 |
| 700,000 m2 | 25-35 | 1100m2 |
| 800,000 m2 | 28-38 | 1200m2 |
| 900,000 m2 | 32-42 | 1300m2 |
| 1,000,000 m2 | 35-46 | 1400m2 |
8 . Technical Information of Construction Material Making Machinery:
|
Vertical Automatic Mould Technical Parameters: |
||||||
|
Name |
Main Parameters |
|||||
|
Overall Dimensions |
3180 × 1380 × 3480 |
|||||
|
(Length × Width × Height) |
||||||
|
Weight |
2800 KGS |
|||||
|
Mobile Power(KW) |
2.2 |
|||||
|
Mobile Speed(m/min) |
≤60 |
|||||
|
Main Components |
Host |
Chassis assembly(power device), former stands, |
||||
|
after stands, after plate, rod |
||||||
|
Accessories |
Press mould, side mould, bottom mould. |
|||||
|
Production |
Thickness |
Width |
Length |
Quantity |
Area |
Raw Material |
|
Information |
(mm) |
(mm) |
(mm) |
(pcs/set) |
(m2/set) |
(m3) |
|
60 |
610 |
2270 |
48 |
66.5 |
3.32 |
|
|
75 |
610 |
2270 |
42 |
58.2 |
3.78 |
|
|
90 |
610 |
2270 |
36 |
49.8 |
3.99 |
|
|
100 |
610 |
2270 |
32 |
44.3 |
3.99 |
|
|
120 |
610 |
2270 |
30 |
41.5 |
4.57 |
|
|
150 |
610 |
2270 |
24 |
33.2 |
4.65 |
|
|
180 |
610 |
2270 |
20 |
27.7 |
4.71 |
|
|
Remarks |
Two transition cars, production line conversion use, one set cheer machine, |
|||||
|
spray release agent use, pour table, track |
||||||
|
(the height of the mould cab be customized by customers specific requirements) |
||||||
