Product Details:
Payment & Shipping Terms:
|
| Types: | Precast Concrete Wall Panels | Application: | Interior And Exterior Wall, Roof And Floor |
|---|---|---|---|
| Thickness: | 60, 75, 90, 100, 120, 150mm | Sound Insulation: | 38dB-46dB |
| Waterproof: | Good | Light Weight: | 1/6 Of Traditional Brick |
| Fireproof: | 4 Hours FRP | Anti-seismic: | 7-8 Class |
| Fast Consruction: | 50-80 ㎡/day | Sample: | Free Eps Sandwich Panel Sample Can Be Provided |
New Building Material Precast Concrete Wall Panels Lightweight Energy Saving
Vanjoin lightweight compound EPS sandwich panels is a kind of energy saving light weight heat
and thermal insulation compound board. It is a new economic construction material, which can replace
red brick, clay solid brick, air brick, color-coated steel sandwich wall board, gypsum block, wire spatial
grid structure perlite board and perlite porous board.
1. Quick Details of Lightweight Precast Concrete Wall Panels
| Type | Precast Concrete Wall Panels |
| Composition |
1. Face boards: calcium silicate board 5mm 2. Core materials: eps foam, cement, sand, additives, etc. |
| Standard Size |
Length 2270mm Width 610mm, Thickness: 60mm,75mm,90mm,100mm,120mm,150mm |
| Application | Exterior and interior wall, floor and roof for various houses and buildings |
| Main Structure of House | Concrete or steel structure |
| Supply ability | 4,000,000m2 per year |
| Delivery time | Within 15 days after receiving prepayment. |
| Payment terms | T/T, L/C |
| Packing Details | 1. Free packing, normal pallet + packing belt 2. Standard exporting packing, good pallet+pearl wool+corner protective paper+packing belt+plastic thin film 3. Packing size: 2270*610*1000mm 4.Loading: 18 pallets per 20' container |
| Samples | Free samples are available |
| Certificates | CE,ISO,,BV, with test reports and patents |
2. Specification of Lightweight Precast Concrete Wall Panels
|
Product Name |
Specification (mm) |
Weight (kg/m2) |
Packing (pcs/㎡ per 20GP) |
Application |
|
Vanjoin light weight energy-saving compound sandwich panels |
2270x610x60 | 45~48 | 315pcs/436㎡ | Roof |
| 2270x610x75 | 50~53 | 252pcs/349㎡ | Interior wall | |
| 2270x610x90 | 55~58 | 207pcs/287㎡ | Interior/Exterior wall | |
| 2210x610x100 | 60~65 | 189pcs/262㎡ | Interior/Exterior wall | |
| 2210x610x120 | 65~75 | 153pcs/212㎡ | Exterior wall | |
| 2210x610x150 | 80~90 | 126pcs/175㎡ | Exterior wall | |
| 2210x610x180 | 95~105 | 99pcs/138㎡ | Exterior wall | |
| Allowed Tolerance: Length±5mm; Width±2mm; Thickness±1mm; Diagonal±2mm | ||||
Remark: All kinds of EPS sandwich wall panel can be customized by customers' specific requirements,
such as density and length of panels.
3. Application of Lightweight Precast Concrete Wall Panels
| Lightweight | 1 person can carry panel easily |
| Eco-friendly | 100% non-asbestos |
| Fast Construction | 3 workers can install 60-80m2 per day |
| Strong,Durable and Long Lifespan | 70 years |
| Sound Insulation | 38-46 dB |
| Windproof | 65m/s |
| Fireproof | 4 hours under 1000 degree fire |
| Anti-earthquake | Grade 8-9 |
| Best hanging force | Single point hanging force is 50kg;Embed hanging force 150kg |
| Weight capacity | 650KG / square meter |
| Space saving | Save 4.26m2 per 100 m2 area |
| Anti-seimisic / Earthquake proofing | Class 7-8 |
| Easy decoration | Convenient for pipeline embeded |
6. Vanjoin Company Information
1)Vanjoin is a proffesional manufacturer of EPS cement sandwich wall panel for 10 years.
2) We have a 40,000m2 factory, with 60000m2 stocking area;
3) We produce sandwich panel, sandwich panel making machine, soft ceramic tiles and soft ceramic
tiles making machine
4) We are certificated with CE, , ISO9001, ISO14000, Invention Patent, STC tests, etc;
5) Our production capacity is 4,000,000m2/year; Our average exports is over 600 containers/month;
6) Our main markets: Southeast Asia, Africa, Middle East, South America, Oceania, Europe, etc.
7). Certificate : ISO, SGC, PATENT, BV, CE, TEST REPORT, ect.

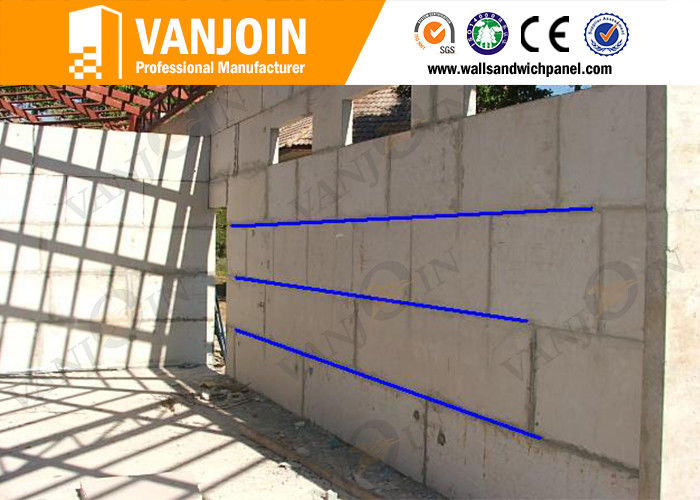

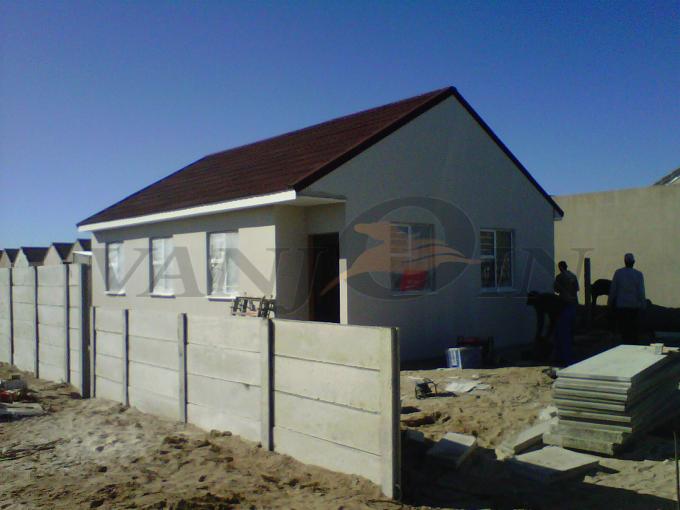

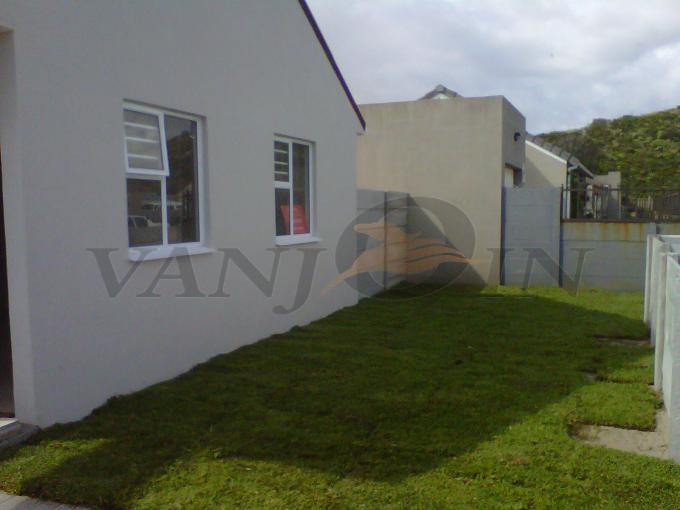

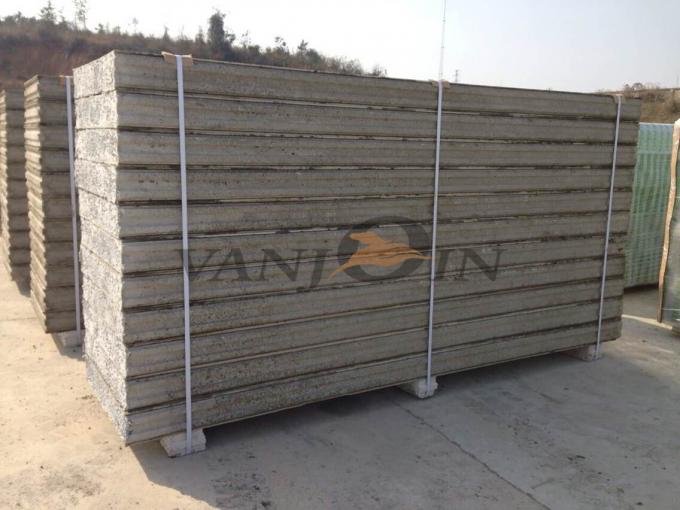

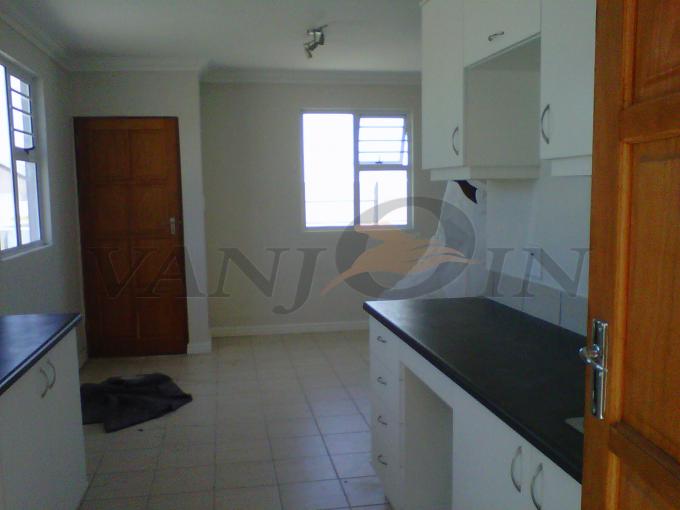

7. Photos of Lightweight Precast Concrete Wall Panels for your reference
