Product Details:
Payment & Shipping Terms:
|
| Product Name: | EPS Sandwich Panel Making Machine | Panel Size: | 2270x610mm |
|---|---|---|---|
| Panel Thickness: | 60mm, 75mm, 90mm, 100mm, 120mm, 150mm, 180mm | Machine Warranty: | 12 Months |
| Production Output: | 100,000 SQM - 1,000,000 SQM / Year | After-sales Service: | Engineers Available To Service Overseas |
Energy Saving Eps Panel Making Machine , Sandwich Making Equipment
Vanjoin wall panel production line can produce Solid panel(SPB), Reinforced Panel (JPB), Sandwich Panel(FPB), with advantage of flexible investment, one set of machinery can produce various panels.
It is suitable for both small and large manufacturing on production.
1) The full automatic production system designed by ourselves independently .
2) Unique raw materials measuring ,delivery and mixing system
3) We have the patent to produce the wall panel and our additives the best .
4) High production output & less workers
5) Environmental protection
6) Easy maintenance
7) Waste recycle utilization
8) We can supply you the materials (eps,calcium silicon board,ceramic ,etc)at a very competitive price.
9) Long-term professional services
Component:
1 . Foaming System: boiler system, continuous pre-expander machine.
2 . Raw Materials Storage / Measuring / Conveying System
Usde for sand, cement, water storage and measurement.

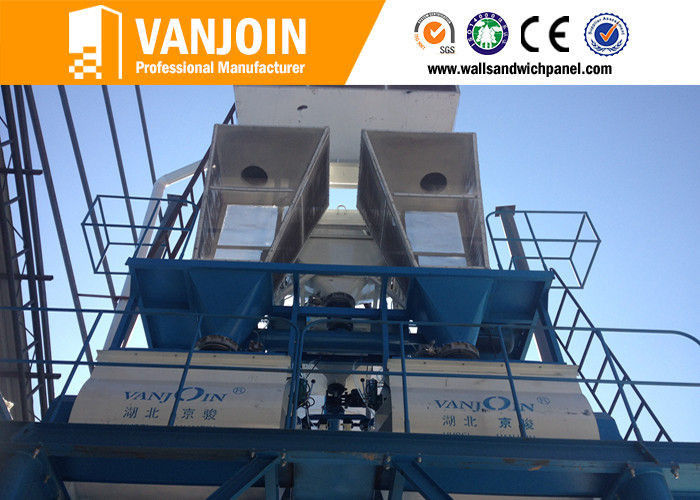

3 . Mixing System
This concrete mixing plant, through full automatic control system, can realize the functions like automatic mixing and discharging, automatic supply cement, sand, water, foam materials, and additives, etc.
Parameters:
| Theoretical Productivity | 2×35m³/h |
| Mixing Time | ≤180s |
| Materials Measuring Accuracy | ±1% |
| Sand Batching Period | ≤10s |
| Sand delivering Speed | 18m³/h |
| Water Supply Flow Speed | 30m³/h |
| Cement Delivering Capacity | 20t/h |
4 . Forming and Gating System
1) Railway of production line
2) Automatica mould machine
Parameters:
|
Item |
Main parameters |
|||||
|
Overall Dimensions ( Length × Width × Height ) |
3180mm×1380mm×3480mm |
|||||
|
Weight |
2800KG |
|||||
|
Movement Power(KW) |
2.2 |
|||||
|
Movement Speed(m/min) (m/min) |
≤60 |
|||||
|
Main Components |
Main Part |
Base(contain power device), front support, back support, pressing plate, rod |
||||
|
|
Accessories |
Pressing Mould Plate, side mould |
||||
|
Production Data
|
Thickness (mm) |
Width (mm) |
Length (mm) |
Production Quantity (pieces/set) |
Area (㎡/set) |
Raw Materials (m³) |
|
60 |
610 |
2270 |
60 |
83.0 |
4.15 |
|
|
75 |
610 |
2270 |
50 |
69.2 |
4.50 |
|
|
90 |
610 |
2270 |
42 |
58.1 |
4.65 |
|
|
100 |
610 |
2270 |
40 |
55.3 |
4.98 |
|
|
120 |
610 |
2270 |
34 |
47.0 |
5.17 |
|
|
150 |
610 |
2270 |
28 |
38.7 |
5.42 |
|
|
180 |
610 |
2270 |
22 |
30.4 |
5.17 |
|
3) Automatic transfer vehicle
4) Vibration platform
5) Electrical control cabinet: can be customized.
Pre-Sales Service:
1) Inquiry and consulting support.
2) Sample testing support.
3) View our Factory.
4) Factory area and Production line Layout design
5) Production capacity calculation
6) Investment cost calculation
After-Sales Service:
1) Training how to instal the machine, training how to use the machine.
2) Engineers available to service machinery overseas.
3) Long term technology support and update

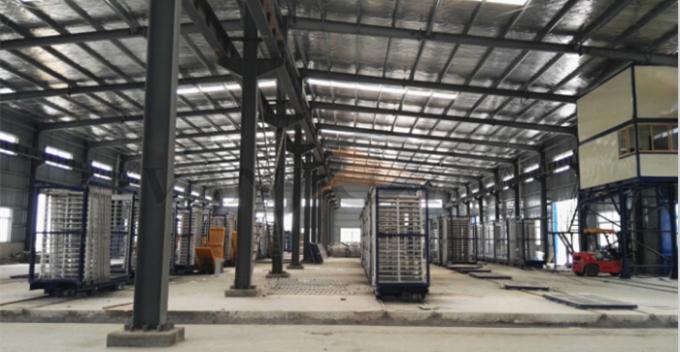

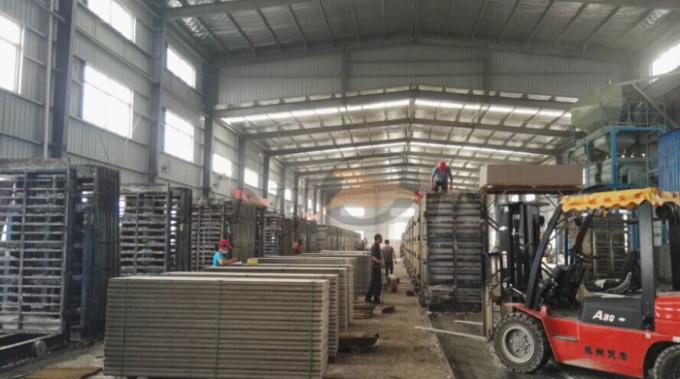

EPS Sandwich Panel Making Machine Photo:
