Product Details:
Payment & Shipping Terms:
|
| Product Name: | EPS Cement Composite Panel Board | Dimension: | 2270*610*60/75/90/100/120/150mm |
|---|---|---|---|
| Usage: | Hotel, Hospital, Warehouse, Department, Etc. | Area Saving: | Can Save 4.26m2 For A 100m2 House |
| Fire Resistant: | Level A | Service Life: | 60-70 Years |
| Density: | 650KG/m³ | Flexural Strength: | 4.27 MPa |
Class 8 Seismic Resistance Composite Panel Board Insulation Polystyrene Concrete Panels
Advantages of Polystyrene Concrete Composite Panel Board:
* Light weight: 1/6 of traditional wall ;
* Space saving: save 4.26 m2 per 100m2 area;
* Waterproof, windproof;
* Fireproof: Under 1000℃ for 240 minutes;
* Sound insulation, Heat insulation;
* High strength, Anti-impact;
* Anti-seismic: Class7-8;
* Great hanging force: Single point hanging force 50KG, Embed hanging force 150KG;
* Fast construction: 8-10 times of traditional wall;
* Easy decoration: convenient for pipeline embedded;
* Eco-friendly: 100% non-asbestos
* Recyclable and long life span: 60-70 years service life, etc.
Brief Introduction of Polystyrene Concrete Composite Panel Board:
| Specification | 2270*610*60/75/90/100/120/150mm |
| Surface Panel material | Calcium silicate board |
| Core Material | EPS, Cement, Sand, Water, Additive, etc. |
| Features | Fast construction, Anti-earthquake, Waterproof, Heat insulation |
| Easy Construction | Easy to install water and electricity pipeline |
Application of Polystyrene Concrete Composite Panel Board:
- Can replace construction materials as red bricks, clay solid bricks, air bricks, color-coated steel sandwich boards, gypsum blocks, wire spatial grid structure perlite boards, and perlite porous board.
- Can widely be applied to interior and exterior wall materials of various high and low buildings such as banks, office buildings, hospitals, schools, hotels, malls, amusement halls, active barracks, old houses reconstruction, residences, and workshops

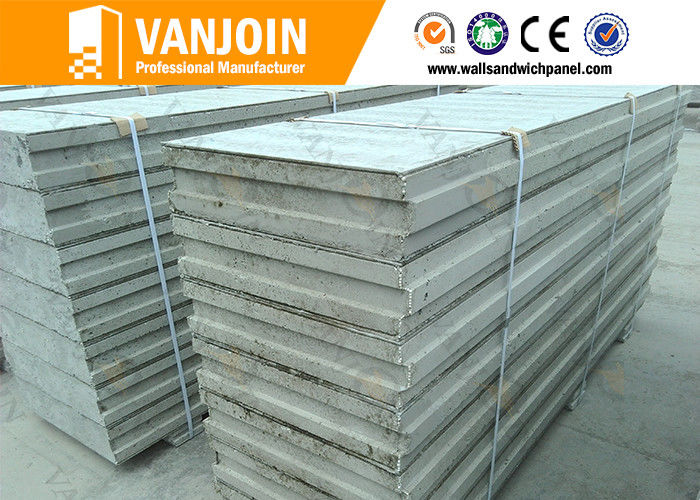

Packaging & Shipping of Polystyrene Concrete Composite Panel Board:
|
Specification (mm) |
Weight (kg/m2) |
Packing |
|
2270x610x60 |
45~48 |
315pcs, 436m2 |
|
2270x610x75 |
50~53 |
252pcs, 349m2 |
|
2270x610x90 |
55~58 |
207pcs, 287m2 |
|
2270x610x100 |
60~65 |
189pcs, 262m2 |
|
2270x610x120 |
65~75 |
153pcs, 212m2 |
|
2270x610x150 |
80~90 |
126pcs, 175m2 |
Polystyrene Concrete Composite Panel Board:
