Product Details:
Payment & Shipping Terms:
|
| Product Name: | Production Line Construction Material Wall Panel Making Machinery | Color: | Red, Grey, Blue, Customer Design |
|---|---|---|---|
| Proudcts: | Vertical, Boiler, Foamin Machines, Etc | Material: | Metal |
| Service Life: | More Than 20 Years | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Dimension(L*W*H): | 3180*1380*3480mm | Voltage: | 220V, 380V |
| Power: | 40-95KW |

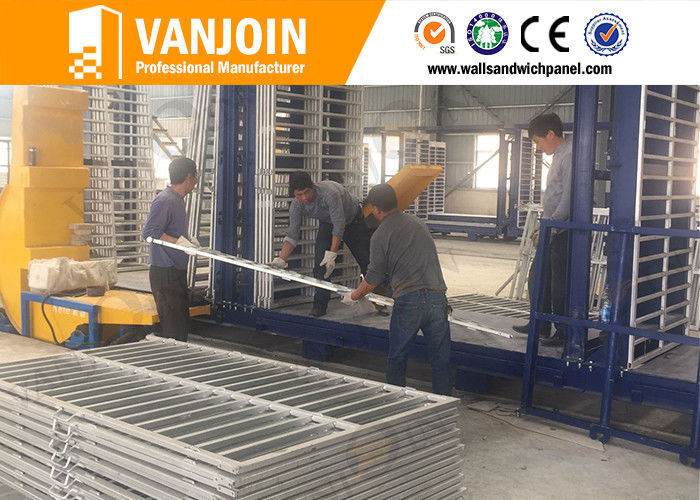

380V Construction Material Making Machinery in composite sandwich panels
1. Technical Information of Wall Panel Forming Machine:
| Vertical Automatic Mould Technical Parameters: | ||||||
| Name | Main Parameters | |||||
| Overall Dimensions | 3180 × 1380 × 3480 | |||||
| (Length × Width × Height) | ||||||
| Weight | 2800 KGS | |||||
| Mobile Power(KW) | 2.2 | |||||
| Mobile Speed(m/min) | ≤60 | |||||
| Main Components | Host | Chassis assembly(power device), former stands, | ||||
| after stands, after plate, rod | ||||||
| Accessories | Press mould, side mould, bottom mould. | |||||
| Production | Thickness | Width | Length | Quantity | Area | Raw Material |
| Information | (mm) | (mm) | (mm) | (pcs/set) | (m2/set) | (m3) |
| 60 | 610 | 2270 | 48 | 66.5 | 3.32 | |
| 75 | 610 | 2270 | 42 | 58.2 | 3.78 | |
| 90 | 610 | 2270 | 36 | 49.8 | 3.99 | |
| 100 | 610 | 2270 | 32 | 44.3 | 3.99 | |
| 120 | 610 | 2270 | 30 | 41.5 | 4.57 | |
| 150 | 610 | 2270 | 24 | 33.2 | 4.65 | |
| 180 | 610 | 2270 | 20 | 27.7 | 4.71 | |
| Remarks | Two transition cars, production line conversion use, one set cheer machine, | |||||
| spray release agent use, pour table, track | ||||||
| (the height of the mould cab be customized by customers specific requirements) | ||||||
2 . Production Data of Wall Panel Forming Machine:
| Production Information |
Length(mm) | Width(mm) | Thickness(mm) | Total PCS(pc/set) | Total m2(㎡/set) |
| 2270 | 610 | 60 | 60 | 83 | |
| 2270 | 610 | 75 | 50 | 69.2 | |
| 2270 | 610 | 90 | 42 | 58.1 | |
| 2270 | 610 | 100 | 40 | 55.3 | |
| 2270 | 610 | 120 | 34 | 47 | |
| 2270 | 610 | 150 | 28 | 38.7 | |
| 2270 | 610 | 180 | 22 | 30.4 |
| 3 . Features of Wall Panel Forming Machine: |
| Light weight | 1 person can take up two pieces of vanjoin panel |
| Energy-saving, Eco-friendly | 100% non-asbestos |
| Easy to install, fast construction | 3 workers can finish a 70 m2 house just by 1 week |
| Strong and durable | Long life 60-70 years |
| Heat insulation and preservation | Thermal conductivity: 0.221W/mk |
| Sound insulation | 42-46 DB |
| Weatherproof; windproof | 70m/s; grade 13 |
| Fireproof | keep well about 4 hours under 1000 degree temperature |
| Anti-impact, anti-earthquake | Grade 8 |
| Best hanging strength | Single point hanging force is > 1200 N |
| Weight capacity | 400KG / square meter |
