Product Details:
Payment & Shipping Terms:
|
| Application: | Produce Sandwich Panel | Production Capacity: | 10,000m2-1,000,000m2 / Year |
|---|---|---|---|
| Lifespan: | Over 20 Years | Warranty: | 1 Year |
| Mould Car: | Vertical | EPS Foaming Machine: | Full Automatic |
| Mixer: | JS1000, JS1500 | Raw Materials: | EPS, Cement,Sand |
| Machine Type: | New |
One key EPS Cement Sandwich Panel Production Line For UAE , Easy Operation
Brief Description
Vanjoin sandwich panel production line can produce various kinds of sandwich panels with high quality, such as eps cement sandwich panel, ceramisite sandwich panel,perlite sandwich panel, eps&ceramisite sandwich panel.It is one set of full automatic production line, with high output and low input.
Main System
1. EPS foaming system includes boiler, eps foaming machine, etc.

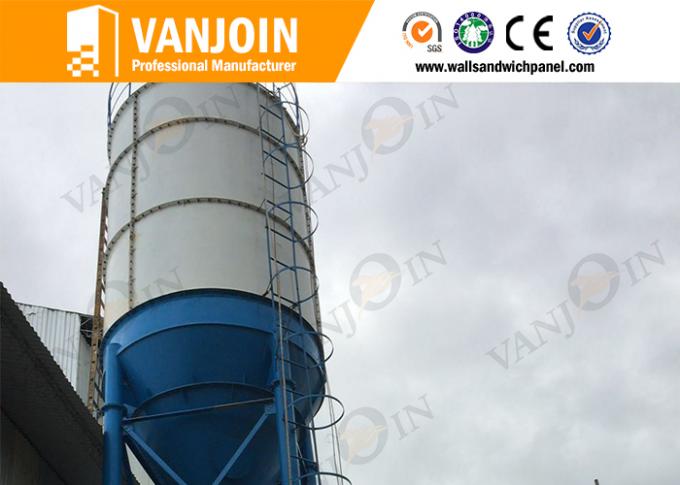

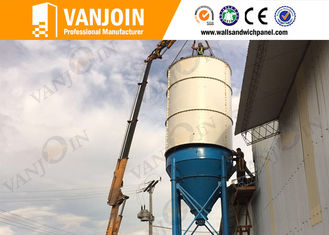

2. Raw materials storage/measuring/conveying system includes raw materials silo, storage &
weighing &measuring hopper, pump, etc.
3. Mixing system includes mixing machine, electric control system, etc.
4. Forming and gating systes includes mould machine ,vibration machines, etc.
Advantages
1. Service life is over 20 years
2. Warranty is 1 year
3. Full automatic production line system
4. Unique raw materials measuring, conveying and mixing system
5. High production output and low cost input
6. Less workers and less labor cost
7. Environmental protection
8. Long-term professional service and free training
9. New products and new technology sharing
Why Choose VANJOIN Production Line?
Save freight:
You don't need to import the wall panel any more .
You can send the wall panels to your customers directly and quickly
The customers in your country don't need the import procedures
Seize the market opportunities timely .

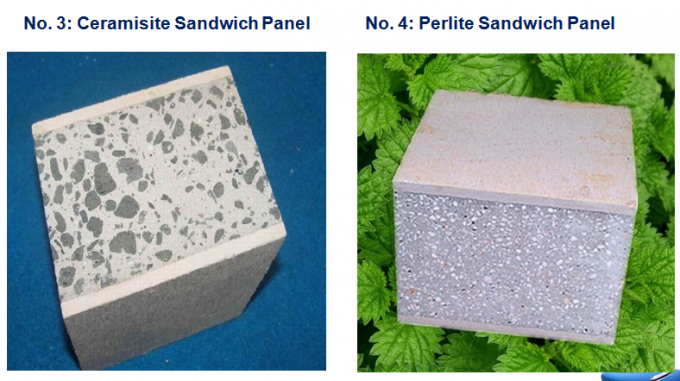

Different Types of Vanjoin Panel

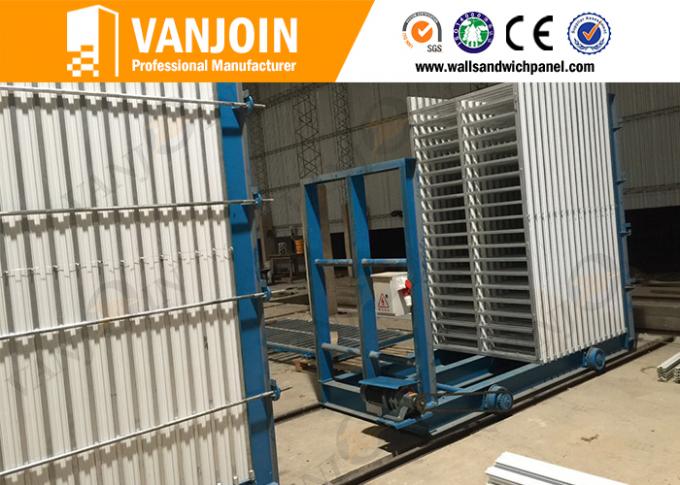

Specification of Mould Car
|
VJ-HT2270 |
||||||
|
Name |
Main Parameters |
|||||
|
Overall Dimensions(L*W*H) |
3180*1380*3480mm |
|||||
|
Weight |
2800KG |
|||||
|
Mobie Power(KW) |
2.2 |
|||||
|
Mobie Speed(m/min) |
≤60 |
|||||
|
Main Components |
Host |
chassis assembly (power device), former stands, after stands, after plate, rod |
||||
|
Accessories |
pressing plate, side mould |
|||||
|
Production Information |
Thickness (mm) |
Width (mm) |
Length (mm) |
Quantity (pcs/set) |
Area (m2/set) |
Raw Material (m2) |
|
60 |
610 |
2270 |
60 |
83.0 |
4.15 |
|
|
75 |
610 |
227 |
50 |
69.2 |
4.50 |
|
|
90 |
610 |
02270 |
42 |
58.1 |
4.65 |
|
|
100 |
610 |
2270 |
40 |
55.3 |
4.98 |
|
|
120 |
610 |
2270 |
34 |
47.0 |
5.17 |
|
|
150 |
610 |
2270 |
28 |
38.7 |
5.42 |
|
|
180 |
610 |
2270 |
22 |
30.4 |
5.77 |
|
|
Remarks |
Two transition car, production line conversion use, one set cheer machine, spray release agent use, pour table, track. |
|||||

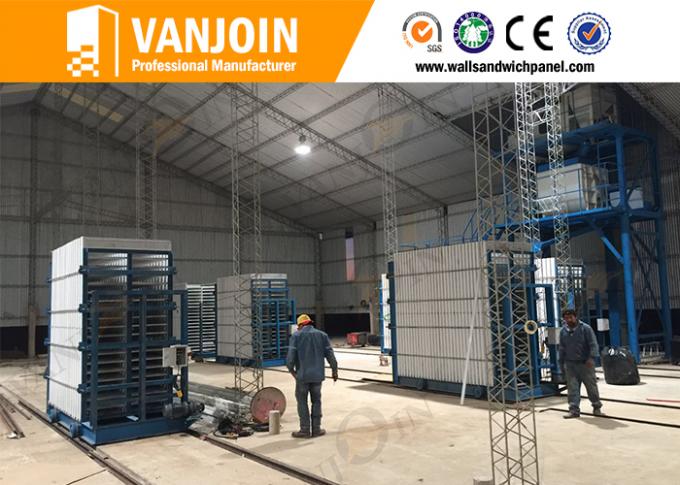

Engeering Cases
