Product Details:
Payment & Shipping Terms:
|
| Product Name: | Lightweight EPS Cement Composite Board Fully Automatic Making Machine | Panel Size: | 2270x610mm, 2440x610mm |
|---|---|---|---|
| Panel Thickness: | 60mm, 75mm, 90mm, 100mm, 120mm, 150mm, 180mm | Machine Warranty: | 12 Months |
| Power: | 100KW | Production Area: | 500 Square Meters |
Fully Automatic Eps Sandwich Panel Machine in Lightweight Cement Composite Board
1) The full automatic production system designed by ourselves independently .
2) Unique raw materials measuring ,delivery and mixing system
3) We have the patent to produce the wall panel and our additives the best .
4) High production output & less workers
5) Environmental protection
6) Easy maintenance
7) Waste recycle utilization
8) We can supply you the materials (eps,calcium silicon board,ceramic ,etc)at a very competitive price.
9) Long-term professional services
Pre-Sales Service:
1) Inquiry and consulting support.
2) Sample testing support.
3) View our Factory.
4) Factory area and Production line Layout design
5) Production capacity calculation
6) Investment cost calculation
After-Sales Service:
1) Training how to instal the machine, training how to use the machine.
2) Engineers available to service machinery overseas.
3) Long term technology support and update
Component:
1 . Foaming System: boiler system, continuous pre-expander machine.
2 . Raw Materials Storage / Measuring / Conveying System
Usde for sand, cement, water storage and measurement.

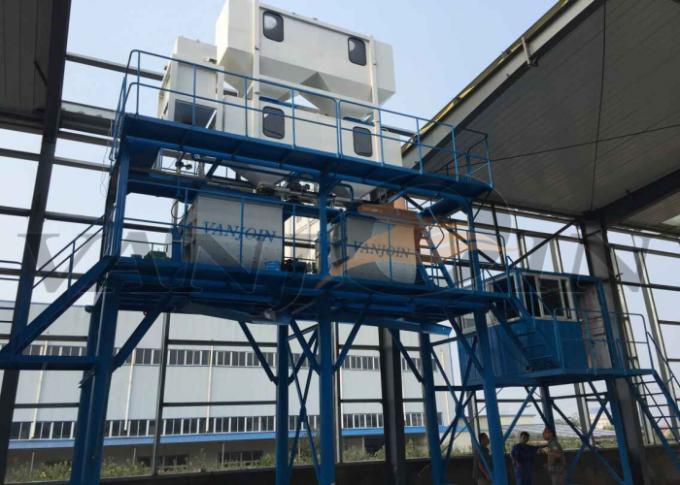

3 . Mixing System
This concrete mixing plant, through full automatic control system, can realize the functions like automatic mixing and discharging, automatic supply cement, sand, water, foam materials, and additives, etc.
Parameters:
| Theoretical Productivity | 2×35m³/h |
| Mixing Time | ≤180s |
| Materials Measuring Accuracy | ±1% |
| Sand Batching Period | ≤10s |
| Sand delivering Speed | 18m³/h |
| Water Supply Flow Speed | 30m³/h |
| Cement Delivering Capacity | 20t/h |
4 . Forming and Gating System
1) Railway of production line

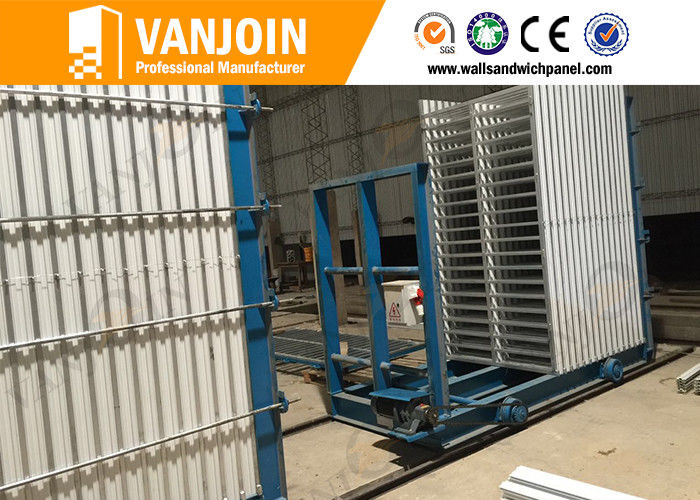

2) Automatica mould machine
Parameters:
|
Item |
Main parameters |
|||||
|
Overall Dimensions ( Length × Width × Height ) |
3180mm×1380mm×3480mm |
|||||
|
Weight |
2800KG |
|||||
|
Movement Power(KW) |
2.2 |
|||||
|
Movement Speed(m/min) (m/min) |
≤60 |
|||||
|
Main Components |
Main Part |
Base(contain power device), front support, back support, pressing plate, rod |
||||
|
|
Accessories |
Pressing Mould Plate, side mould |
||||
|
Production Data
|
Thickness (mm) |
Width (mm) |
Length (mm) |
Production Quantity (pieces/set) |
Area (㎡/set) |
Raw Materials (m³) |
|
60 |
610 |
2270 |
60 |
83.0 |
4.15 |
|
|
75 |
610 |
2270 |
50 |
69.2 |
4.50 |
|
|
90 |
610 |
2270 |
42 |
58.1 |
4.65 |
|
|
100 |
610 |
2270 |
40 |
55.3 |
4.98 |
|
|
120 |
610 |
2270 |
34 |
47.0 |
5.17 |
|
|
150 |
610 |
2270 |
28 |
38.7 |
5.42 |
|
|
180 |
610 |
2270 |
22 |
30.4 |
5.17 |
|
3) Automatic transfer vehicle
4) Vibration platform
5) Electrical control cabinet: can be customized.
Lightweight EPS Cement Composite Board Fully Automatic Making Machine:
