100mm Silicon Board Sand Eps Cement Sandwich Panel For Villa Internal Wall

Certification
Good quality EPS Cement Sandwich Panel for sales
Good quality EPS Cement Sandwich Panel for sales
Customer Reviews
I thought no body cares about others any more,but you changed this.

—— Mana AI Yaseen,Saudi Arabia

I appreciate very much your very kind attention to may request and it give to me a very strong confidence in your company in your services

—— Alfredo Friedmann,Paraguay

You are so kind and good service.

—— Samuel,Indonesia

You are star.I want to be your friend

—— Gert,South Africa

I'm Online Chat Now

100mm Silicon Board Sand Eps Cement Sandwich Panel For Villa Internal Wall

China 100mm Silicon Board Sand Eps Cement Sandwich Panel For Villa Internal Wall supplier
100mm Silicon Board Sand Eps Cement Sandwich Panel For Villa Internal Wall supplier 100mm Silicon Board Sand Eps Cement Sandwich Panel For Villa Internal Wall supplier 100mm Silicon Board Sand Eps Cement Sandwich Panel For Villa Internal Wall supplier 100mm Silicon Board Sand Eps Cement Sandwich Panel For Villa Internal Wall supplier

Large Image :  100mm Silicon Board Sand Eps Cement Sandwich Panel For Villa Internal Wall

Product Details:

Place of Origin: China
Brand Name: Vanjoin
Certification: CE, BV, ISO
Model Number: VJ-WL-WP-56

Payment & Shipping Terms:

Minimum Order Quantity: 1X20GP Container free sample available
Price: negotiation
Packaging Details: 1. Free packing ( with normal pallet and normal packing belt ) 2. Standard exporting packing ( wraped with plastic film , edge protect and good pallet )
Delivery Time: 7~10 working days after receive payments
Payment Terms: L/C,T/T,Western Union, D/A,D/P, MoneyGra
Supply Ability: 200000 Square Meter/Square Meters per Mont
Detailed Product Description
Soundproof Nonmetal Concrete Eps Sandwich Wall Panels Flat Apartment Building: Nonmetal Panel Length: 2270mm,2440mm,2700mm,3000mm
Width: 610mm Thickness: 60mm,75mm,90mm,100mm,120mm,150mm
Fireproof: 240 Minutes Under 1000 Degree Application: Internal Wall , External Wall , Roof , Floor
Hanging Force: More Than 50KG Feathures 1: Waterproof , Lightweight ,Energy Saving
Feathures 2: Fire Resistant , Eco-Friendly , Fast Installation Features 3: Space Saving , Save Labor Cost,Heat Insulation



100mm Silicon Board Sand Eps Cement Sandwich Panel For Villa Internal Wall



1. Specification: (L*W*T)



  1500-3000mm X 610mm X (60, 90,120,150,180mm)

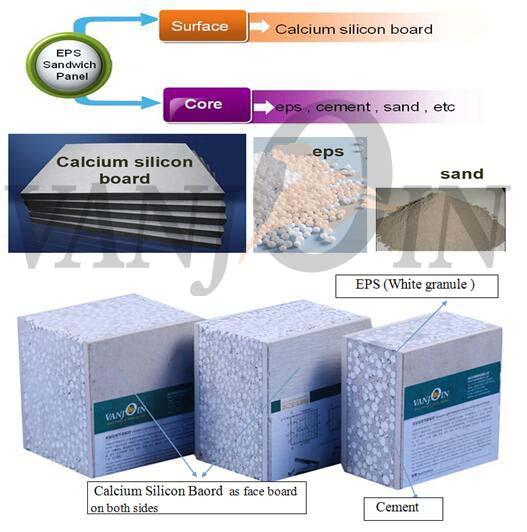

2. Sandwich wall panel Composition :



100mm Silicon Board Sand Eps Cement Sandwich Panel For Villa Internal Wall



3. Application



Vanjoin Wall Panel can replace

many construction materials

Replacing such as red brick, clay solid brick, air brick;

Apply to various high and low buildings such as bank, office building,

hospital, school, hotel, supermarket, amusement hall, active barrack,

old houses reconstruction, residence, and workshop, etc.

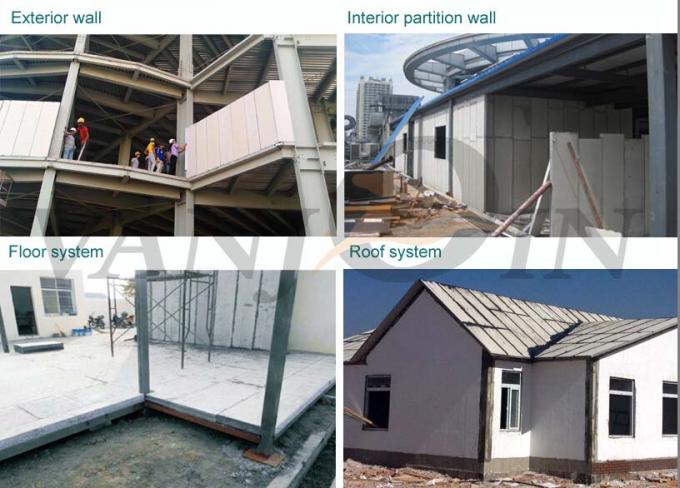

Application

Exterior & Interior wall system, Roof system, Floor system



100mm Silicon Board Sand Eps Cement Sandwich Panel For Villa Internal Wall



4.Technology Index:





Item

National Standards

Testing Indexes



Thickness

60mm

90mm

120mm

60mm

90mm

120mm

1

Anti-impact Capacity/times

≥5

≥5

≥5

≥8

≥10

≥15

2

Anti-bending damage load/times over deadweight

≥1.5

≥1.5

≥1.5

≥3

≥4

≥5

3

Compressive strength /Mpa

≥3.5

≥3.5

≥3.5

≥5

≥5

≥5

4

Softening coefficient

≥0.80

≥0.80

≥0.80

≥1

≥1

≥1

5

Surface density g/m2

≤70

≤90

≤110

≤55

≤70

≤85

6

Moisture rate  a/%

≤12/10/8

≤10/9/7

7

Drying shrinkage value /mm/m

≤0.6

≤0.6

≤0.6

≤0.45

≤.0.5

≤0.5

8

Hanging Force/N

≥1000

≥1000

≥1000

≥1200

≥1300

≥1500

9

Sound insulation capacity in the air /Db

≥30

≥35

≥40

≥35

≥40

≥45

10

Fire proof limit /h

≥1

≥1

≥1

≥2.5

≥3

≥4

11

Heat transfer coefficient  w/m2.k





≤1.0





≤1.0

12

Radioactivity Limit

≤1

≤1

≤1

≤1

≤1

≤1

13

IRa (Inner radiation indexes)

≤1

≤1

≤1

≤1

≤1

≤1

14

Ir (Outer radiation indexes)

≤1

≤1

≤1

≤1

≤1

≤1
