Prefab House Sandwich Panel Production Line , wall panel machine 610mm Width

Large Image : Prefab House Sandwich Panel Production Line , wall panel machine 610mm Width

Product Details:

Place of Origin:	Wuhan, China
Brand Name:	Vanjoin
Certification:	CE,ISO,,BV
Model Number:	VJ-PL-WL-156

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	negotiation
Packaging Details:	standard export package
Delivery Time:	45-60 days after receiving prepayment
Payment Terms:	L/C, D/P, T/T, Western Union
Supply Ability:	20 units per month

Detailed Product Description

Product Name:	Sandwich Panel Production Line Prefab House Wall Panel Making Machine	Machine Type:	Manual , Semi-automatic , Fully Automatic
Technical Support:	Vanjoin Owned Patent Certificate And Update New Products To You.	Panel Thickness:	60mm, 75mm , 90mm , 100mm , 120mm , 150mm , 180mm
Warranty:	12 Months	Panel Width:	610mm
Installation:	Engineer Go To Client Factory Guide Installation The Machines	Panel Length:	2270mm --3000mm (can Be Customized)

Prefab House Sandwich Panel Production Line , wall panel machine 610mm Width

1. Three Types of Machines

(1) Manual

(2) Semi-automatic

(3) Fully Automatic

2. Production Capacity of Mould Car System

Description (LengthWidth Thickness )	Output For One Set Of Mould Car
2270mm610mm60mm	60 pcs/set
2270mm610mm75mm	50 pcs/set
2270mm610mm90mm	42 pcs/set
2270mm610mm100mm	40 pcs/set
2270mm610mm120mm	34 pcs/set
2270mm610mm150mm	28 pcs/set
2270mm610mm180mm	22 pcs/set

3. Different Productivity & Loading Details

Annual Productivity	Workers Needed (Management & Technical Person Included)	Loading Details
100,000 m2	8-13	1 40HQ,3 40FT
200,000 m2	10-18
300,000 m2	12-20
400,000 m2	15-23	1 40HQ,4 40FT
500,000 m2	18-28
600,000 m2	22-32
700,000 m2	25-35	1 40HQ,5 40FT
800,000 m2	28-38
900,000 m2	32-42
1,000,000 m2	35-46

4.Advantages

Service life is over 20 years
Warranty is 1 year
Full automatic production line system
Unique raw materials measuring, conveying and mixing system
High production output and low cost input
Less workers and less labor cost
Environmental protection

5.Main System

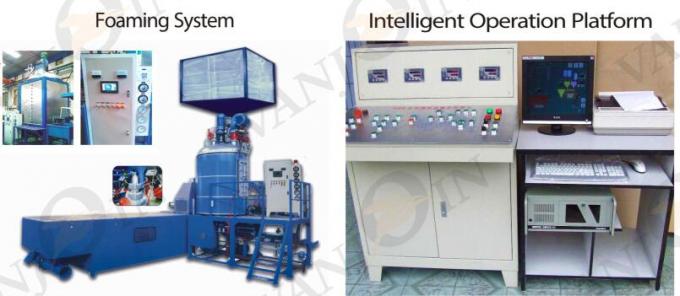

EPS foaming system includes boiler, eps foaming machine, etc.

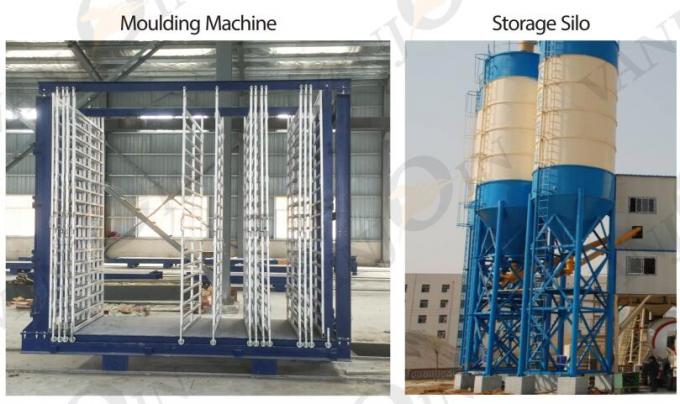

Raw materials storage/measuring/conveying system includes raw materials silo, storage& weighing &measuring hopper, pump, etc.

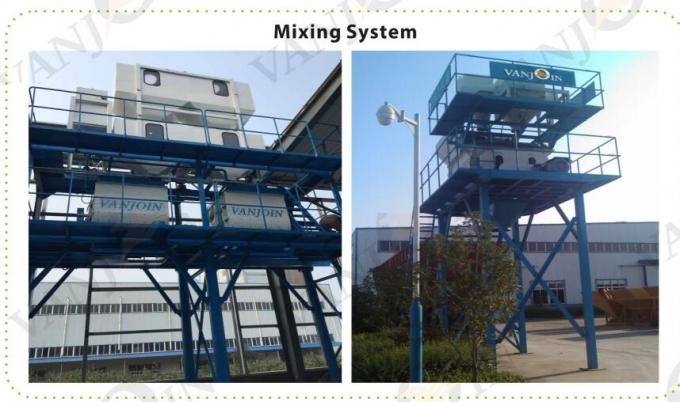

Mixing system includes mixing machine, electric control system, etc.
Forming and gating systes includes mould machine ,vibration machines, etc.

Prefab House Sandwich Panel Production Line , wall panel machine 610mm Width

Tag:

lightweight wall panel machine,

sandwich making equipment
