Product Details:
Payment & Shipping Terms:
|
| Color: | Grey | Panel Material: | Nonmetal |
|---|---|---|---|
| Use Life: | 70Years | Fireproof: | 240 Minutes – Class A |
| Waterproof: | Good | Hanging Force: | More Than 50KG |
| Feathures: | Fast Construction, Anti-earthquake, Light Weight, Save Space |

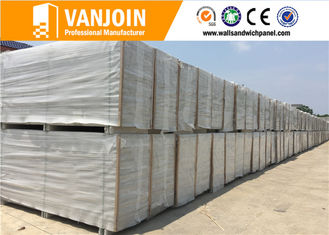

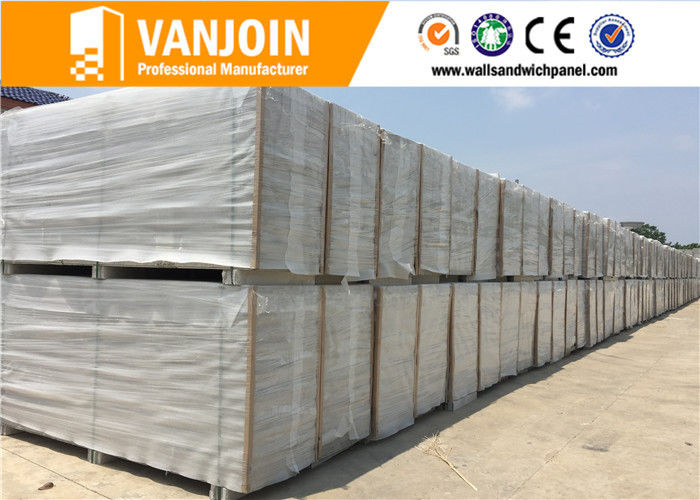

Precast Industry Building Material Concrete Partition EPS Foam Cement Sandwich Wall Panel
1.Specification,Usage & Loading details
Length *Width*Thickness ( 2270---3000)mm*610mm*(60,75,90,100,120,150,180mm)
|
Specification ( Length *Width*Thikcness ) |
Loading on 20ft (pcs/m2) |
Usage of Different Thickness |
|
2270mm*610mm*60mm |
315pcs / 436 m2 |
Internal wall & Roof |
|
2270mmx610mmx75mm |
252pcs/ 349 m2 |
Internal wall |
|
2270mmx610mmx90mm |
207pcs/ 287 m2 |
|
|
2270mmx610mmx100mm |
189pcs/ 262 m2 |
Internal & External wall |
|
2270mmx610mmx120mm |
153pcs/ 212 m2 |
External wall |
|
2270mmx610mmx150mm |
126pcs/ 175m2 |

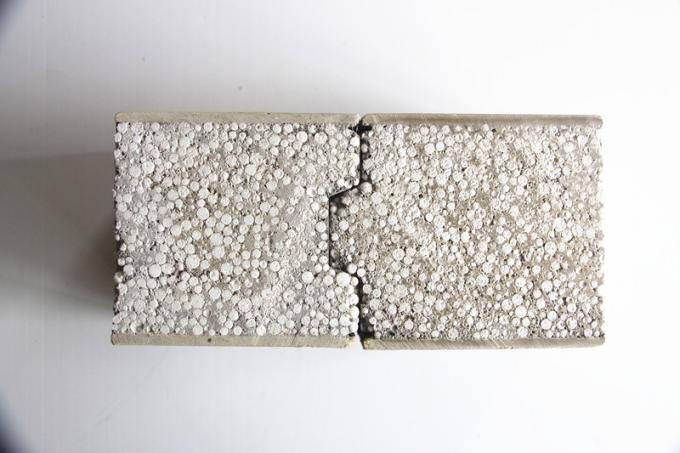

2 .Composition:
Core materials: cement, EPS, and fly ash or sand core
Surface materials: Calcium Silicon Board , Fiber Cement Board , Mgo Board etc

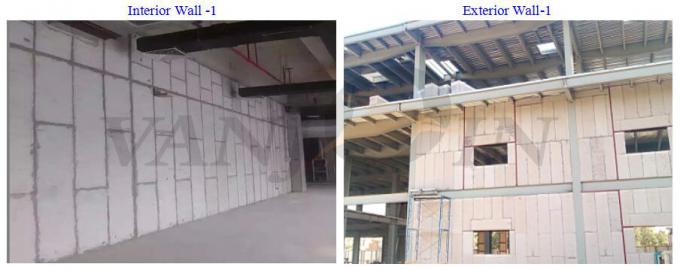

3. Application of EPS Wall Panel:
1) Floor System
2) Roof System
3) Interior Wall System
4) Exterior Wall System
4. Advantages Of Vanjoin Sandwich Wall Panel
|
Light weight |
1 person can take up two pieces of vanjoin panel |
|
Energy-saving, Eco-friendly |
100% non-asbestos |
|
Strong and durable |
Long life 60-70 years |
|
Heat insulation and preservation |
Thermal conductivity: 0.221W/mk |
|
Sound insulation |
42-46 DB |
|
Weatherproof; windproof |
70m/s; grade 13 |
|
Fireproof |
Our sandwich wall panel can keep well under 1000 degree temperature about 4 hours |
|
Anti-impact, anti-earthquake |
Grade 8 |
|
Best hanging strength |
Single point hanging force is > 1200 N |
|
Load bearing capacity |
Over 50 kg
|

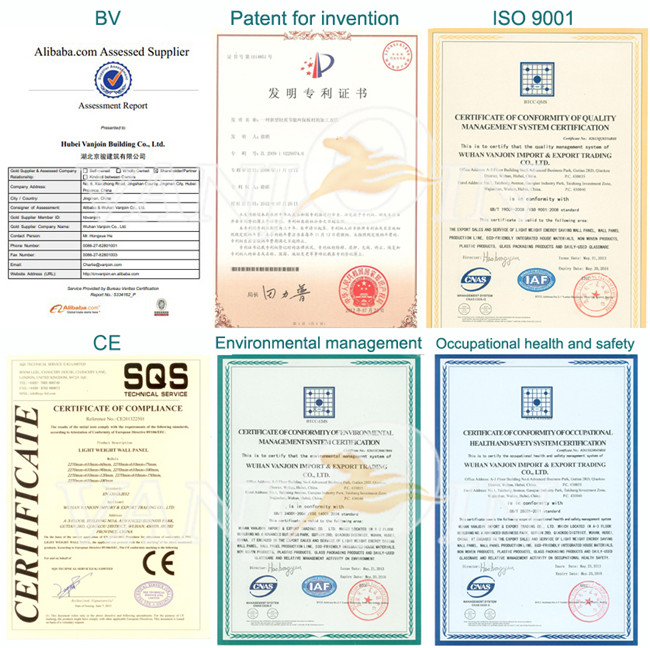

5. Certifications
6. FAQ
Q: How long is your cargo ready?
A: Usually about two weeks after receipt deposit.
Q: Can you offer sample for testing?
A: Of course, we can offer free small sample at your required thickness.
Q: Do you have any certificates or qualifications?
A: Yes. We have passed CE & ISO9001, and also have many test reports, the fireproof performance of our sandwich panel is more than 4 hours in the heat of 1000℃.
Q: What are the disadvantages of your sandwich panel?
A: Our panel is non-load bearing wall panel, so when build several floors or high-rise buildings, must combine with steel structure or concrete structure.
Q: When the time goes by. whether the panel might damage due to the climate change and whether it can be harmed by insects?
A: Our panel will not be damaged due to the climate change, and also will not be harmed by insects. But for more than 2 storey or high-rise building, this panel need to combine with steel structures or concrete structures. And lifespan is about 50~70 years.
Q: How would you guaranty the quality of your products and would like to know whether a warranty is available for the products we are to order?
A: The physical property of this panel will not be changed with the time goes by, generally speaking, it maybe damaged during transport or improper use or man-made damage.
Q: Whether the panel might access easily to fix nails or to drill without any damage to the panel or the EPS - Cementmixture?
A: Yes, this panel can be easily fixed by steel bar, and can be cut by electric saw at any size freely.
Q: What is your recommendation on usage (for what kind of a construction each panel can be used in accordance with the thickness)?
A: Usually, we suggest to use 50-100mm panels for interior wall partition, 120-200mm for exterior wall.
Q: What is the thickness of calcium silicate board independently?
A: The thickness of calcium silicate board is 4.5mm on each side, so total thickness is 9mm.
