EPS Foam Concrete Sandwich Wall Panel Modern Prefabricated Modular Houses

China EPS Foam Concrete Sandwich Wall Panel Modern Prefabricated Modular Houses supplier
EPS Foam Concrete Sandwich Wall Panel Modern Prefabricated Modular Houses supplier EPS Foam Concrete Sandwich Wall Panel Modern Prefabricated Modular Houses supplier EPS Foam Concrete Sandwich Wall Panel Modern Prefabricated Modular Houses supplier EPS Foam Concrete Sandwich Wall Panel Modern Prefabricated Modular Houses supplier

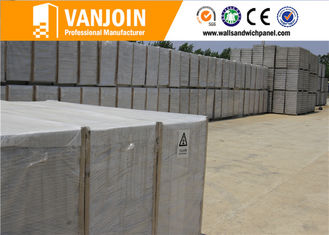

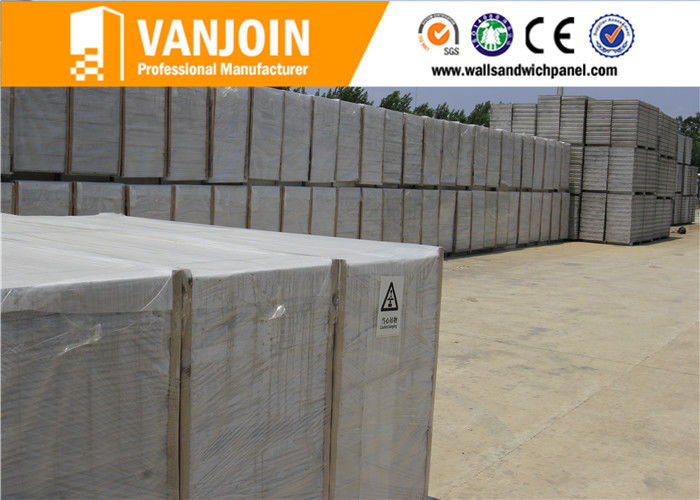

Large Image :  EPS Foam Concrete Sandwich Wall Panel Modern Prefabricated Modular Houses

Product Details:

Place of Origin: China
Brand Name: Vanjoin
Certification: CE, BV, ISO
Model Number: WP-6-5R

Payment & Shipping Terms:

Minimum Order Quantity: Two 20GP
Price: negotiation
Packaging Details: Standard exporting packing (wrapped with plastic thin film, edge protect and good pallet)
Delivery Time: 15 working days after received the payment
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 200,000 sqm per month
Contact Now
Detailed Product Description
Product Name: Modern Cheap Prefabricated Modular Houses EPS Foam Concrete Sandwich Wall Panel Anti-seismic: Anti-earthquake, Grade 7-8
Core Material: Eps Foam Sandwich Material Fireproof: Grade A
Soundproof: 46dB+ Life Span: 60-70 Years Service Time
Usage: Roof, Floor, Interior Wall, Exterior Wall, Prefab House, High-rise Building, Villa


Modern Cheap Prefabricated Modular Houses EPS Foam Concrete Sandwich Wall Panel

1.  Description

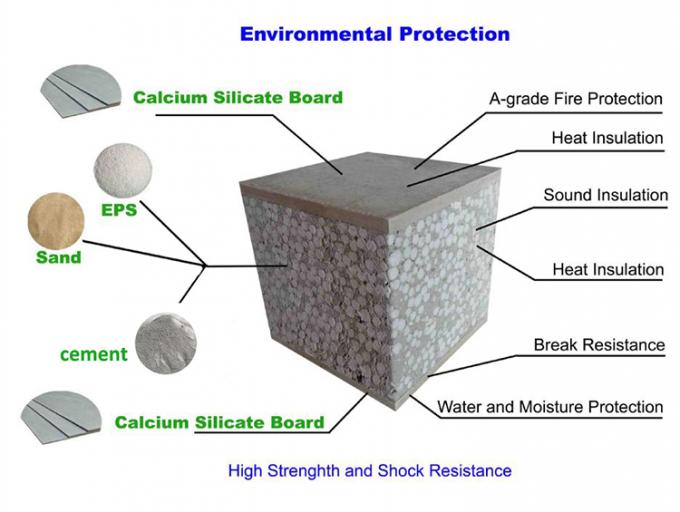

Vanjoin lightweight foam sandwich wall panels can connect with reinforced concrete structures very easily and fast, we provide you a rapid interior wall and exterior wall solution. Especially for high rise buildings.
 cement-sandwich-panels
2. Specification
Length * Width * Thichness (mm)
2270*610*90mm for interior wall
2270*610*120mm for exterior wall
cement-sandwich-panels
3.Features


Name

Features

Light weight

Lighter than traditional wall with same volume

Space saving

Save 4.26m2 per 100 m2

Waterproof

Excellent

Fireproof

A Grade,4 hours 1000 degree fire

Sound Insulation

46dB, soundproof, sound absorption

Hanging force

Single point hanging force 50kg
while embed hanging force can exceed 150kg

Windproof

75m/s; 270km/h

Anti-seismic

Class 8, anti earthquake

Anti-impact

High strength, 1.5 times of traditional wall

Fast construction

8~10 times of traditional wall, easy decoration

Eco-friendly

100% no asbestos, asbestos free

Service Life

60-70 years life span



4. Performance

Vanjoin Panels Performance

Thermal conductivity(BS 874: Part 2: 1986)

0.221 W/mK

Flexural Strength(longitudianal)

4.27 MPa

Flexural Strength(transverse)

4118N

Moisture Movement

0.06%

Moisture Content

9%

Resistance to continuous heating

80 °c

Surface Alkalinity

pH 7-10

Non-combustibility(face Boards)

BS EN ISO 1182: 2002
BS476: Part 4
GB8624-1997, Grade A

Heat of combustion(face boards)

BS EN ISO 1716: 2002

Building regulations classification(face boars)

Euro Class A1

Fire rated partition

2 hour FRP
BS EN 1364-1
BS 476: Part 22
GB/T9978

Water tightness to ASTM C1185

No droplets observed behind the panel,
Test of 24 hours at 250 mm water head

Partition stiffness-heavy duty grade
(BS 5234; Part2: 1992, Annex A)

Pass

Resistance to substructure damage by multiple impacts
from a large soft body
-heavy duty grade( BS 5234; Part2: 1992, Annex E)

No collapse of dislocation

Surface damage by hard body impact- heavy duty grade
(BS 5234; Part2: 1992, Annex B)

Pass

Effects of door slamming-heavy duty grade
BS 5234; Part2: 1992, Annex B

Pass

resistance to crowd pressure-heavy duty grade
BS 5234; Part2: 1992, Annex G

No collapse of damage

Resistance to anchorage(high level wall cupboard)
eccentric downward
BS 5234; Part2: 1992, Annex K

No damage or detachment of anchor

Anchorage Load

45 kg

Acoustic performance
- 60 mm thick
- 75 mm thick
- 100 mm thick
- 120 mm thick
- 150 mm thick


38 dB
40 dB
42 dB
44 dB
46 dB


 cement-sandwich-panels
5. Installation
Setting the line and carrying the board in position;
Sawing board basing on requirement;
Sizing cement on tenon side of two boards;
Carrying the board prepared to be installed to the installation place, correcting the wall board by gavelock and making it close tightly;
Grouting and filling starch;
Sticking fiber glass mesh;
Apply putty powder and level up;
Finished.

6.FAQ
Q1 : How many years your company to produce this kind of wall panel ?
A: More than 8 years of manufacturing eps cement sandwich wall panels , now we are the largest manufacture in middle of China , and among TOP 3 in China in this field .

Q2 : Main market of Vanjoin ?
A: Main market : Asia , South Amercia , Africa
South East Asia is our largest market ,Mid East is our second largest market

Q3 : Exporting details :
A: loading & shipping 400 20ft every month

Q4 : More information of Vanjoin factory ?

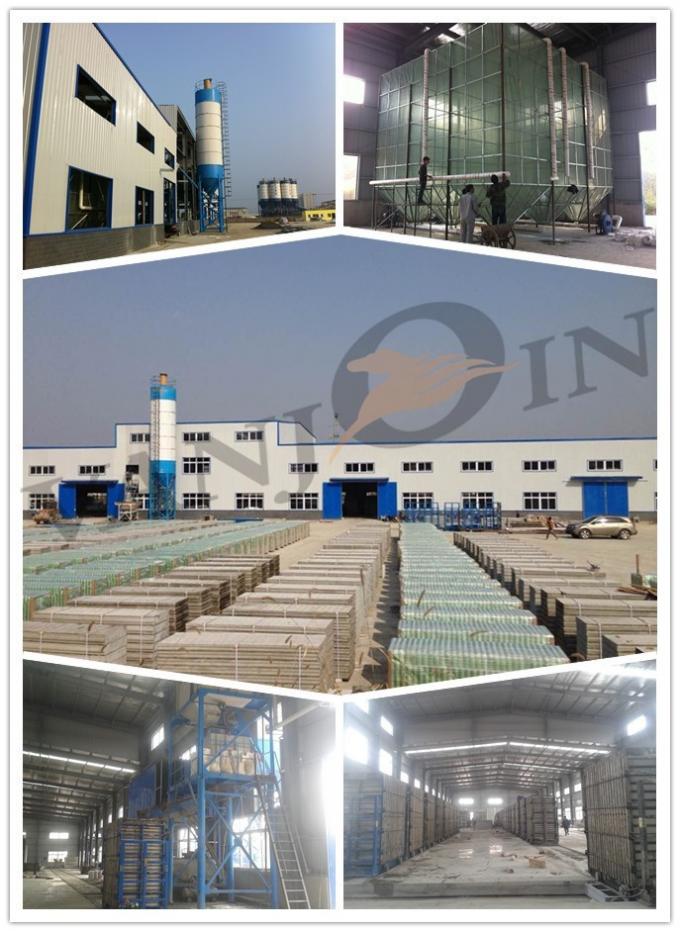

A: Land area : 30,000m2 Machines : Fully automatic production line
Productivity : 2,000,000m2 wall panel every year

Q5 : How could I get the samples ?
A: We send you the free wall panel samples , brochures & installation cd etc, you pay for the freight charges .
If you get the TNT , DHL , UPS , Fedex account , that is the best .
If not , you can transfer money to our West Union account , then we send you samples by Vanjoin account .

Q6 : Certificate of Vanjoin
A: We get CE , ISO , BV , SGS certificate for our product
We get other wall panel performance testing report , such as fireproof , sound insulation , waterproof , heat insulation certificates etc .

Q7 : How to installation the wall panels ?
A: You can watch the installation video on our website or send an enquiry.
