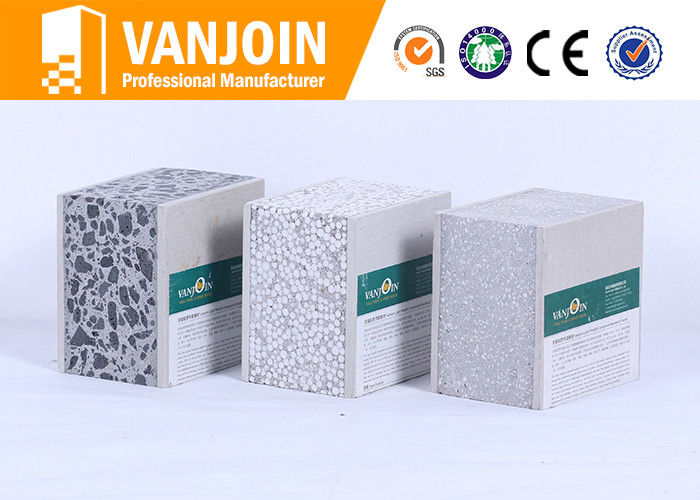

Energy saving Fireproof EPS Cement Sandwich Panel Sound Insulation 610mm Width

Large Image : Energy saving Fireproof EPS Cement Sandwich Panel Sound Insulation 610mm Width

Product Details:

Place of Origin:	China
Brand Name:	Vanjoin
Certification:	CE, BV, ISO
Model Number:	VJ-WPE-01

Payment & Shipping Terms:

Minimum Order Quantity:	300 Square Meter/Square Meters free sample available
Price:	negotiation
Packaging Details:	standard export package
Delivery Time:	7-15 days after receiving prepayment
Payment Terms:	L/C,T/T, Western Union, D/A,D/P, MoneyGram
Supply Ability:	200,000 Square Meter/Square Meters per Month

Detailed Product Description

Product Name::	Energy Saving Fireproof Sound Insulation EPS Cement Concrete Panels	Anchorage Load::	50 Kgs
Specification (LWT)::	227061060/75/90/100/120/150mm	Weight:	45~90 Kg/㎡
Features::	Fast Construction, Anti-earthquake, Light Weight, Save Space	Fireproof:	Under 1000 Degree For 4 Hours Without Damage To The Wall
Heat Insulation::	5 Degree Difference Between Inside And Outside	Construction Efficiency::	3 Workers One Week For 100m2 House

Energy saving Fireproof EPS Cement Sandwich Panel Sound Insulation

1>. Production Description of EPS Cement Wall Panel:

Vanjoin EPS Cement wall Panel is composed of exterior panels and interior core filling, to form a non-load-bearing light-weight composite wall panel. The exterior panels on both sides are 5mm calcium silicate board, and the middle core is filled with polystyrene beads & cement or ceramicite, polystyrene beads & cement.

2>. Specification of Eps Cement Wall Panel:

• Thickness: 60, 75, 90, 100, 120, 150mm
• Width: 610mm
• Length: 2270mm (custom-made length can be made for volume order)

Name	*Size(LWT)*	Weight(KG)	Packing(pcs/㎡ per 20")
VJ light weight compound sandwich panel	227061060	45-48	315 pcs / 436 ㎡
	227061075	50-53	252 pcs / 349 ㎡
	227061090	55-58	207 pcs / 287 ㎡
	2270610100	60-65	189 pcs / 262 ㎡
	2270610120	65-75	153 pcs / 212 ㎡
	2270610150	90-90	126 pcs / 175 ㎡

Remark: All kinds of panels can be customized by customers' specific requirement,

such as density and length of panel.

3>. Performance Index of EPS Cement Wall Panel:

O.	Item	National Standards			Testing Results
O.	Item	60mm	90mm	120mm	60mm	90mm	120mm
1	Anti-impact performance/times	≥5	≥5	≥5	≥6	≥6	≥10
2	Anti-bending damage load/times over deadweight	≥1.5	≥1.5	≥1.5	≥3	≥3	≥3


3	Anti-pressure strength /Mpa	≥3.5	≥3.5	≥3.5	≥6	≥6	≥6


4	Surface density kg/m2	≤70	≤90	≤110	≤45	≤54	≤66
5	Single point hanging Strength /N	≥1000	≥1000	≥1000	≥1000	≥1200	≥1300


6	Fire proof limit /h	≥1	≥1	≥1	≥3	≥3	≥4
7	Sound insulation capacity in the air /Db	≥30	≥35	≥40	≥35	≥40	≥45
8	Soften coefficient	≥0.80	≥0.80	≥0.80	≥1	≥1	≥1
9	Moisture rate a/%	≤12	≤10	≤10	≤10	≤9	≤7
10	Heat transfer coefficient w/m2.k	≤2.0	≤2.0	≤2.0	≤1.0	≤0.6	≤0.5
11	Drying shrinkage /mm/m	≤0.6	≤0.6	≤0.6	≤0.45	≤.0.5	≤0.5
12	Inner radiation index	≤1	≤1	≤1	≤1	≤1	≤1


13	Outer radiation index	≤1	≤1	≤1	≤1	≤1	≤1


14	Radioactivity Limit	≤1	≤1	≤1	≤1	≤1	≤1
