Sound Insulation Waterproof Flexible Soft Wall Tiles for Exterior Wall

China Sound Insulation Waterproof Flexible Soft Wall Tiles for Exterior Wall supplier
Sound Insulation Waterproof Flexible Soft Wall Tiles for Exterior Wall supplier Sound Insulation Waterproof Flexible Soft Wall Tiles for Exterior Wall supplier Sound Insulation Waterproof Flexible Soft Wall Tiles for Exterior Wall supplier Sound Insulation Waterproof Flexible Soft Wall Tiles for Exterior Wall supplier

Large Image :  Sound Insulation Waterproof Flexible Soft Wall Tiles for Exterior Wall

Product Details:

Place of Origin: Hubei, China
Brand Name: VANJOIN
Certification: CE/BV/ISO9001/ISO14001/
Model Number: ST-6-1R

Payment & Shipping Terms:

Minimum Order Quantity: 100 pcs
Price: negotiation
Packaging Details: Packed in carton firstly, and then reinforced with wooden case for outer packing
Delivery Time: 15 working days after received your payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50000 square meters per month
Contact Now
Detailed Product Description
Product Name: Sound Insulation Waterproof Flexible Soft Ceramic Plate For Exterior Wall Material: MCM, Modified Clay Material
Size: 300mm * 1000mm; Other Size Can Be Customized. Color: Blacks, Blues, Browns / Tans, Grays, Greens, Oranges, Purples / Lavenders, Reds / Pinks, Whites, Yellows / Golds More Colors Can Be Customized.
Tile Type: Full Body Tiles, Wall Tiles, MCM Tiles, Curtain Wall Tile Feature: Light Weight, Soft, Flexible, Anti-crack, Waterproof, Anti-pollution, Self-cleaning, Fireproof, Breathable, Rebound Resilience, Eco-friendly, Etc.
Application: Exterior Wall Decoration, High-rise Buildings, Irregular Structures, School, Office, Hospital, Hotel, Kitchen, Toilet, Etc. Installation Method: Dry Hanging

Sound Insulation Waterproof Flexible Soft Ceramic Plate for Exterior Wall



1. Description:

Flexible ceramic plate is the latest curtain wall material in today's construction industry, it has the advantages of environmental protection, energy saving, moisture proof, sound insulation, ventilation, colorful, ensure a new appearance indefinitely, wide range of applications, etc. Using dry hanging installation, easy to replace, provide more flexible facade design solutions to design application, it is conducive to urban landscaping and architectural life.





2. Composition:

Natural Raw Materials:

鈥 Colored mineral sand,
鈥 Mountain flour,
鈥 Modified clay material (Green Materials, asbestos free),
鈥 Vanjoin additive (invention patent),
鈥 Soft emulsion agent, waterproof agent,
鈥 Flame retardant agent,antioxidant.



3. Technical Parameter, Feature and Performance:



Technical

Parameter

Material

MCM, Modified Clay Material

Tile Size

300mm * 1000mm;

Thickness

1.5mm, 2.0mm, 2.5mm, 3.0mm,3.5mm, 4.0mm

Dimensional Stability

±0.5%

Colors

Blacks, Blues, Browns / Tans, Grays, Greens,

Oranges, Purples / Lavenders, Reds / Pinks,

Whites, Yellows / Golden

Tile Type

Full Body Tiles, Wall Tiles, MCM Tiles, Curtain Wall Tile

Installation Method

Dry Hanging

Capacity

5kg/m2

Water Absorbing Capacity

<0.1 With European Indicators

Usage

Exterior Wall Decoration, High-rise Buildings, Irregular Structures

, School, Office, Hospital, Hotel, Kitchen, Toilet, etc.

Feature

and

Performance

Light Weight

1/6 of other tiles

Flexible

Soft and crack-free

Tensile Strength

鈮1.0Mpa

Energy Saving

Low Carbon, Recyclable

Fast Construction

Easy Install, Even can be pasted onto the original wall or tiles

directly.

Safe & healthy

Non-toxic, Non VOC, Eco-friendly, Environmental friendly

Weather

Resistance

Anti Aging, Alkali Resistance, Acid Resistance

UV Resistance

Excellent Ultra violet ray resistance

Fireproof

A-grade, No Naked Flame, No Dense Smoke

Waterproof

Dump proof, Stain Resistance & Self-cleaning

Plasticity

Any Pattern, Any Texture, Any Color

Solid & Firm

Anti-impact, Non Friable

Freezing, thawing resistance

-30~10 Degree 100 Times, No Cracking, No Striping

Breathable

Microporous Structure, Water-repellent and Air

Permeability

Frost-Resistance

After 100 Cycles, No Surface Crack, Flake by naked eye

observation

Color Fastness

Mineral sand natural-born color, No color fading.

Impact Resistance

Soft and Rebound Resilience

Service Life

50+ Years

Sound Insulation Waterproof Flexible Soft Wall Tiles for Exterior Wall

4. Competitive Advantages:

Vanjoin flexible ceramic plate is our new invention patent, it's soft and flexible, light weight, waterproof and self-cleaning, especially suitable for irregular structures and high-rise buildings.

Sound Insulation Waterproof Flexible Soft Wall Tiles for Exterior Wall

5. Comparison with Other Materials:





Vanjoin

Soft Ceramic Plate

Ceramic

Tile

Marble

slab

Aluminum

Plastic Panel

Glass Curtain

Wall

Paint

Weight/ kg/m2

1.5-8

20-60

30-60

9-20

20-50

1.5-5

Flexibility

×

×

×

×

Normal

Representability

Colorful,

All kinds of











Surface texture

Colorful,

All kinds of texture

Normal

×

×

Colorful,

little kind of  texture



Safety

×

×

Normal

×

Water-repellent

Installation Cost

Cheap

Normal

Expensive

Expensive

Expensive

Cheap

Air permeability

×

×

×

×

Normal

Service life

≥50years

≥30years

≥30years

≥10years

≥25years

≥10years



6. Installation and Construction:

  1. 鈥 Prepare the flexible ceramic plates, angle steel, supporting plates, backing plates, expansion screws.
  2. 鈥 Fix the angle steel onto the all with expansion screws;
  3. 鈥 Joint the supporting plates with angle steel;
  4. 鈥 Install the flexible ceramic plates into supporting plates;
  5. 鈥 Adjust to suitable position.
  6. 鈥 Fill the gaps with sealant or grout.



8. Applications:

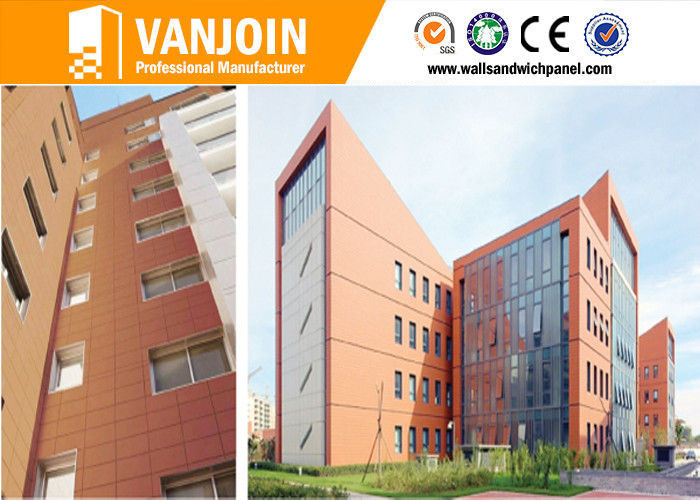

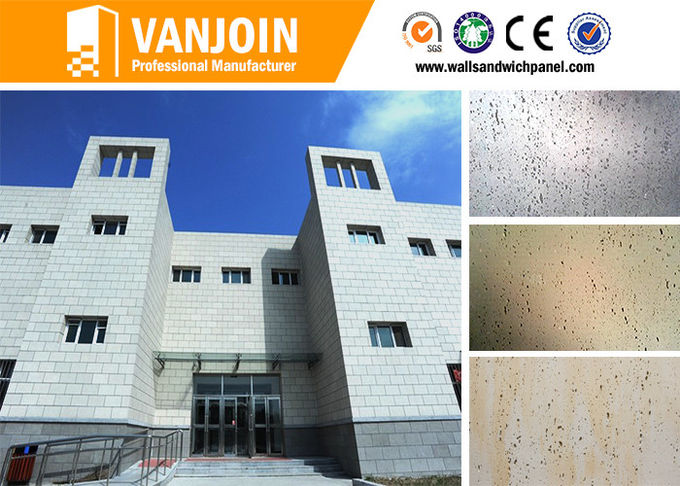

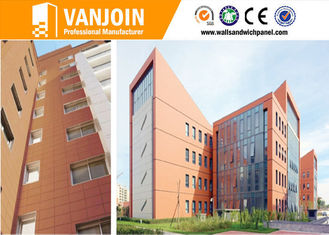

Vanjoin flexible ceramic plate mainly be used as curtain wall, facade design, exterior wall decoration, especially for high-rise buildings and irregular structures, etc.

Business Organizations

supermarket, large-scale shopping malls, exclusive agency, chain shops,

large-scale sales, star-rated hotels, restaurants, travel agencies, pharmacy.

Financial Organizations

Banks, negotiable securities, funds, insurance companies, pawnshops;

Non-profit Organizations: Telecommunications, post offices, hospital, schools;

Public Places

subway, airports, stations, gas stations, toll stations, bookstores, parks,

exhibition halls, stadiums,museums, convention centers, ticket agencies,

HR market, lottery centers; Real Estate Property:

Apartments, villas, offices, commercial buildings, model rooms, property brokers;

Entertainments

Movie theaters, fitness halls, country clubs, clubs, massage rooms, bars,

cafes, Internet bars, beauty shops, golf course
