Fast Construction EPS Cement Sandwich Panel For Real Estate Construction

Certification
Good quality EPS Cement Sandwich Panel for sales
Good quality EPS Cement Sandwich Panel for sales
Customer Reviews
I thought no body cares about others any more,but you changed this.

—— Mana AI Yaseen,Saudi Arabia

I appreciate very much your very kind attention to may request and it give to me a very strong confidence in your company in your services

—— Alfredo Friedmann,Paraguay

You are so kind and good service.

—— Samuel,Indonesia

You are star.I want to be your friend

—— Gert,South Africa

I'm Online Chat Now

Fast Construction EPS Cement Sandwich Panel For Real Estate Construction

China Fast Construction EPS Cement Sandwich Panel For Real Estate Construction supplier
Fast Construction EPS Cement Sandwich Panel For Real Estate Construction supplier Fast Construction EPS Cement Sandwich Panel For Real Estate Construction supplier Fast Construction EPS Cement Sandwich Panel For Real Estate Construction supplier Fast Construction EPS Cement Sandwich Panel For Real Estate Construction supplier

Large Image :  Fast Construction EPS Cement Sandwich Panel For Real Estate Construction

Product Details:

Place of Origin: China
Brand Name: Vanjoin
Certification: CE, BV, ISO
Model Number: VJ-WPE-E01H

Payment & Shipping Terms:

Minimum Order Quantity: 300 SQM
Price: negotiation
Packaging Details: 1. Free packing ( with normal pallet and normal packing belt ) 2. Standard exporting packing ( wraped with plastic film , edge protect and good pallet )
Delivery Time: 7-15 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 200,000 SQM per Month
Contact Now
Detailed Product Description
Product Name: EPS Cement Sandwich Panel Color: Grey
Core Material: EPS, Cement, Water, Sand, Additives Building Speed: 75-80M2 / Day
Fireproof: A Level Single Point Hanging Strength: 70 KG
Anti-earthquake: Class 8 Heating Resistance: 80 °C

Fast Construction EPS Cement Sandwich Panel For Real Estate Construction



Product Introduction:

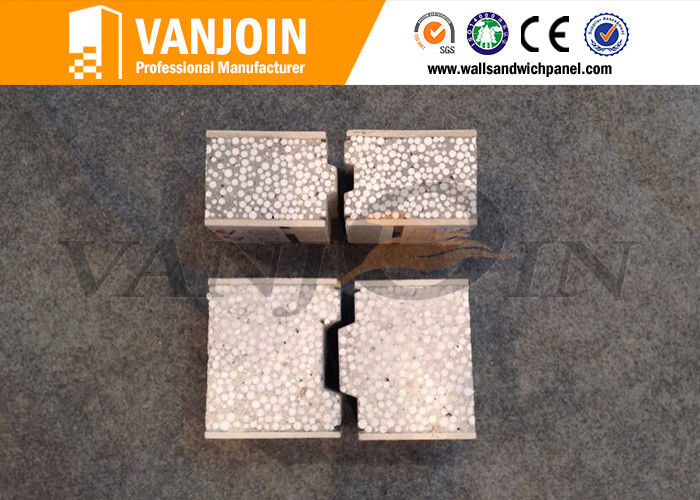

Vanjoin EPS Cement Sandwich Panel are made from a non-toxic light weight core of Portland cement and expanded Polystyrene beads sandwiched between two Calcium Silicate boards. The Calcium Silicate boards used in the production are fire rated, thermal rated, water vapor resistance with excellent values.



Our EPS Cement Sandwich Panel can automatically adjust indoor and outdoor air and water content with the season and climate changes. Its good heat insulation function is much better than other normal bricks with the same thickness. Even the thinner panels can achieve other ordinary boards' function.



Specifications:



2270*610*60mm 315pcs /436m2
2270*610*75mm 252pcs/349m2
2270*610*90mm 207pcs/287m2
2270*610*100mm 189pcs/262m2
2270*610*120mm 153pcs/212m2
2270*610*150mm 135pcs/187m2



Advantages:



1 . Most energy-saving, light weight, environmental protection

The capacity is 650kg/m³, just sixth of the brick building



2 . Most Area-saving

In comparison of the inner wall panel 75mm abd 120mm, every 12m will increase practical area, for the 100㎡ house, it will increase 4.26㎡.



3 .Most waterproof and dampproof

Because of the special featuresof the solid panel, the feature of waterproof and dampproof is very obvious. The experiment shows that without any waterproof facing, build one pool with our products, and fill it with water, the back of the wall can keep dry without ant blot.When in damp weather, there isn't any condensation wate.



4 . Most fire-proof

Under 1000 degree centigrade for 240 minutes, there isn't damage to the wall.



5 . Most sound-insulation

46dB-50dB sound-insulation effect, accord with the national standard GBJ121-88.



6 . Best hanging strength

Expansion bol can be installed in random part of the wall, the point hanging force can reach more than 50kg(50-70kg).

With other Pre-embedded material in the panel, the strength can reach 150kg.



7 . Most anti-seismic and inpact resistance

Earthquake resistant level: M8.0



8 . Largest span and height thin webbed wall

The large span walls impact resistance ability will be 1.5 times more than common material. The simple construcing height is 16.8m, but need a stucture within every 6m in transverse direction and 5m in  longitudinal direction.



9 . Most civilized, environmental, high efficiency construction

Simple construction and transportation, stacking health, dry operation, no sludge, low loss, less waste, construction convenient, no bricklaying plastering, shorten the construction period, slotted fast, easy to install water and electricity pipeline. The construction efficiency is 8-10 times of the normal masonry, it's a kind of high-quality reusable wall.



Light weight

1 person can take up two pieces of vanjoin panel

Energy-saving, Eco-friendly

100% non-asbestos

Easy to install, fast construction

3 workers can finish a 70 m2 house just by 1 week

Strong and durable

Long life 60-70 years

Heat insulation and preservation

Thermal conductivity: 0.221W/mk

Sound insulation

42-46 DB

Weatherproof; windproof

70m/s; grade 13

Fireproof

keep well about 4 hours under 1000 degree temperature

Anti-impact, anti-earthquake

Grade 8

Best hanging strength

Single point hanging force is > 1200 N

Weight capacity

400KG / square meter



Application:



For interior and exterior wall partition on steel or concrete structure building, new construction or renovations. It can replace construction materials such as block, wire spatial grid structure perlite board, perlite porous board and etc. It can widely be applied to wall materials of various high and low buildings such as bank, office building, hospital, school, hotel, mall, amusement, old house reconstruction, residence and workshop.



EPS Cement Sandwich Panel:



Fast Construction EPS Cement Sandwich Panel For Real Estate Construction

Fast Construction EPS Cement Sandwich Panel For Real Estate Construction
