Product Details:

Place of Origin: Hubei, China
Brand Name: VANJOIN
Certification: CE/BV/ISO9001/ISO14001/
Model Number: PM-103R

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Machinery is carefully packed with wooden pallets for outer packing, components and parts are packed in cartons.
Delivery Time: 30 working days after received your payment
Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability: 20 sets per month
Detailed Product Description
Product Name: Oversea Technical Support Construction Material Making Machinery Panel Maker Material: Stainless Steel
Automatic Grade: Full Automatic, One-key Operation Colors: Blue, Other Colors Can Be Customized
Voltage: 380V Main Component: Boiler System; Raw Materials Storage/Measuring/Conveying System; Mixing System; Forming And Gating System
Usage: Produce Sandwich Wall Panels Machine Capacity: 100,000 - 2,000,000 M2 Per Year

Oversea Technical Support Construction Material Making Machinery Panel Maker



1. Description:

Vanjoin has 10 years panel making and panel machinery making experience. We can provide you oversea technical support on both panels and machines. We will send professional engineers to guide the installation and labor training.



Composition:

  • ※ Boiler System;
  • ※ Raw Materials Storage/Measuring/Conveying System;
  • ※ Mixing System;
  • ※ Forming and Gating System



2. Technical Parameter and Production Data:

Technical Parameter

Material

Stainless Steel, Anti corrosion, Anti rust

Color

Blue, other colors can be customized

Voltage

380v

Main Component

Boiler System; Raw Materials Storage/Measuring/Conveying System; Mixing System; Forming and Gating System

Components

Boiler System,

Raw Materials Storage/Measuring/Conveying System,

Mixing System, Foaming and Gating System

Automatic Grade

Full Automatic

Usage

Produce sandwich wall panels

Machine Capacity

100,000 - 2,000,000 m2 per Year

Warranty

1 Year

Service Time

20+ Years



Production Data



Thickness

(mm)

Width

(mm)

Length

(mm)

Production Quantity

(pc/set)

Area

(㎡/set)

Raw Materials



(m³)

60

610

2270

60

83.0

4.15

75

610

2270

50

69.2

4.50

90

610

2270

42

58.1

4.65

100

610

2270

40

55.3

4.98

120

610

2270

34

47.0

5.17

150

610

2270

28

38.7

5.42

180

610

2270

22

30.4

5.77



3. Vanjoin Automatic Sandwich Wall Panel Machine Competitive Advantage:

  • ※ Produce patented sandwich wall panels with excellent performance;
  • ※ Unique raw material measuring, delivery and mixing system;
  • ※ High-tech support from the talents of specialized research group in famous university;
  • ※ Strict quality control;
  • ※ Experienced and well trained workers and installation team;
  • ※ Professional designer, engineer, technology



4. Boiler System

Boiler is mainly used for supplying steam for the foaming equipment to foam EPS foam, we used electric heating boiler, which is heating water by electric energy to obtain the specified parameters of steam or hot water, the boiler’s thermal efficiency is higher than 98%, electricity is used for the boiler to heat, clean and pollution-free at site.

Remark: Oil and gas boilers are also available at customers' request.



5. EPS Foaming Machine

The machine adopts PLC and touch screen control, automatic filling, electronic weighing, temperature control, material level control to realize automatic production. It is complete with screw conveyor and electronic weighing system. Most of components are of world-famous brands, with reliable performance, stable quality, long service life and low maintenance cost. It can realize the primary and second expansion.

Foaming Machine Technical Parameters:

Item

Unit

PSF-Q1400JR

Diameter

mm

1400

Shell Height

mm

2000

Volume

m3

3

Useable Volume

m3

2.8

Steam Pressure

mpa

1.6-0.8

Compressed Air Pressure

mpa

0.6-0.8

Density

kg/m3

12-40

Throughput

kg/h

150-600

Connected Load

kw

14.87

Overall Dimension

mm

4500*2150*2950

Machine Weight

kg

2500

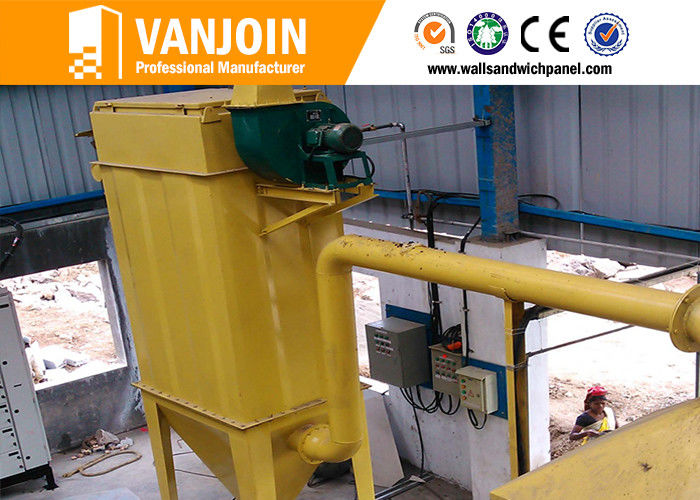

6. Raw Materials Storage/Measuring/Conveying System:

  • ※ Automatic Cement Supply System;
  • ※ Automatic Sand Supply System;
  • ※ Automatic Water Supply System;
  • ※ Automatic Foam Supply System;
  • ※ Automatic Additive Supply System;

Oversea Technical Construction Material Making Machinery / Panel Maker

Oversea Technical Construction Material Making Machinery / Panel Maker



7. Mixing System

Through full automatic control system, it can realize the functions like automatic mixing and discharging, automatic supply cement, sand, water, foam materials and additives, etc.

Body Frame: Two-storey design by adopting section bars wedded together.





8. Forming and Gating System



Vertical Automatic Mould Machinery



This mould has high output and returns, low input, high reach in production output of 100,000 to 2,000,000 square meters annual capacity.

Vertical Automatic Mould Technical Parameters:

Name

Main Parameters

Overall Dimensions

(Length × Width × Height)

3180 × 1380 × 3480

Weight

2800 KGS

Mobile Power(KW)

2.2

Mobile Speed(m/min)

≤60

Main

Components

Host

Chassis assembly(power device), former stands,

after stands, after plate, rod

Accessories

Press mould, side mould, bottom mould.

Production

Information

Thickness

(mm)

Width

(mm)

Length

(mm)

Quantity

(pcs/set)

Area

(m2/set)

Raw Material

(m3)

60

610

2270

48

66.5

3.32

75

610

2270

42

58.2

3.78

90

610

2270

36

49.8

3.99

100

610

2270

32

44.3

3.99

120

610

2270

30

41.5

4.57

150

610

2270

24

33.2

4.65

180

610

2270

20

27.7

4.71

Remarks

Two transition cars, production line conversion use, one set cheer machine,

spray release agent use, pour table, track

(the height of the mould cab be customized by customers specific requirements)



9. What You Can Get from Vanjoin Group?



  • ※ Investment cost calculation;
  • ※ Production capacity calculation;
  • ※ Free factory area design;
  • ※ Free Production line layout design;
  • ※ Engineers for installation and guidance on-site;
  • ※ Free labor training;
  • ※ 12 months warranty;
  • ※ Life long professional service;

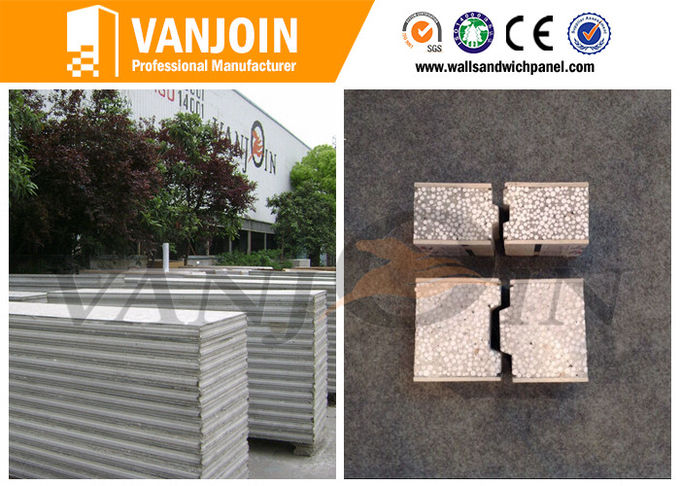

10. Panels it can produce:

Eps cement sandwich panel;

Ceramsite cement sandwich panel;

Eps Ceramsite sandwich panel;

Perlite cement sandwich panel;
