Light Weight Precast EPS Sandwich Panel Production Line Stainless Steel

China Light Weight Precast EPS Sandwich Panel Production Line Stainless Steel supplier
Light Weight Precast EPS Sandwich Panel Production Line Stainless Steel supplier Light Weight Precast EPS Sandwich Panel Production Line Stainless Steel supplier Light Weight Precast EPS Sandwich Panel Production Line Stainless Steel supplier Light Weight Precast EPS Sandwich Panel Production Line Stainless Steel supplier

Large Image :  Light Weight Precast EPS Sandwich Panel Production Line Stainless Steel

Product Details:

Place of Origin: Hubei, China
Brand Name: Vanjoin
Certification: CE, ISO, , BV, SASO
Model Number: VJ-PM-YR04

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: negotiation
Packaging Details: standard export package
Delivery Time: 45-60 days after receiving deposit
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 20 Sets Per Month
Detailed Product Description
Type: Full Automation Material: Stainless Steel
Production Capacity: 10,000m2-1,000,000m2 / Year Usage: Produce Sandwich Wall Panels
Advantages: High Efficiency Voltage: 380v
Lifespan: Over 20 Years After-sales Service Provided: Engineers Available To Service Machinery Overseas

Light Weight Precast EPS Wall Panel Forming Machine , Sandwich Wall Panel line



Produced Sandwich Panel information:



The Raw materials are cement, sand, EPS (expendable polystyrene), compound admixture (our company has developed it with independent intellectual property rights, we will teach you to make it after you purchased our production line), calcium silicate board and water. You can also use other industrial waste material as filling material, such as fly ash, slag, tailings, etc. to bring down the cost and alleviate the industrial waste pollution at the same time. The filling material is non-essential. You can choose the local cheapest material as the filling material or don’t use any filing material, it doesn’t mater.



These raw materials are common and easy to get.



Advantages

  •  Service life is over 20 years
  •  Warranty is 1 year
  •  Full automatic production line system
  •  Unique raw materials measuring, conveying and mixing system
  •  High production output and low cost input
  •  Less workers and less labor cost
  •  Environmental protection

Specificcation of panel production line:



annual output(m2)

quantity of
moulding cars(set)

quantity of

workers required

prodction area(m2)

stacking area(m2)

100,000

5

8-13

500

1000

200,000

8

10-18

600

2000

300,000

10

12-20

700

3000

400,000

11

15-23

800

4000

500,000

12

18-28

900

5000

600,000

13

22-32

1000

6000

700,000

14

25-35

1100

7000

800,000

15

28-38

1200

8000

900,000

16

32-42

1300

9000

1,000,000

17

35-46

1400

10000




























Main Machinery

1. Storage silo ( cement silo)
2. Sand stroage silo
3. Water storage tank
4.EPS foaming system
5. Automatic mixing system
6. Vertical mould car
7. Railway
8. Auto Stirring plate



 Production Data of Wall Panel Forming Machine:



Specification(L*W*T) Output of One Mould Car
2270mm*610mm*60mm 60 pcs/set
2270mm*610mm*75mm 50 pcs/set
2270mm*610mm*90mm 42 pcs/set
2270mm*610mm*100mm 40 pcs/set
2270mm*610mm*120mm 34 pcs/set
2270mm*610mm*150mm 28 pcs/set
2270mm*610mm*180mm 22 pcs/set

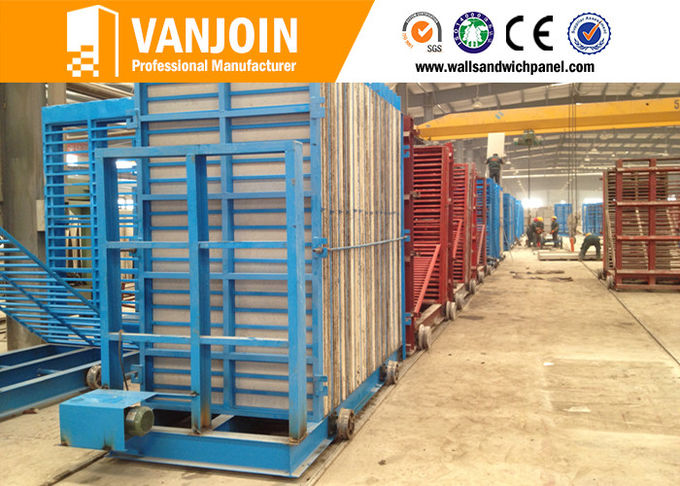

Vertical Automatic Mould Machinery



Double horizontal shafts compulsory mixing machine is chosen which has features of excellent work reliablity, super mixing quality, high productivity, etc.

Vertical Automatic Mould Technical Parameters:

Name

Main Parameters

Overall Dimensions

(Length × Width × Height)

3180 × 1380 × 3480

Weight

2800 KGS

Mobile Power(KW)

2.2

Mobile Speed(m/min)

≤60

Main

Components

Host

Chassis assembly(power device), former stands,

after stands, after plate, rod

Accessories

Press mould, side mould, bottom mould.

Production

Information

Thickness

(mm)

Width

(mm)

Length

(mm)

Quantity

(pcs/set)

Area

(m2/set)

Raw Material

(m3)

60

610

2270

48

66.5

3.32

75

610

2270

42

58.2

3.78

90

610

2270

36

49.8

3.99

100

610

2270

32

44.3

3.99

120

610

2270

30

41.5

4.57

150

610

2270

24

33.2

4.65

180

610

2270

20

27.7

4.71

Remarks

Two transition cars, production line conversion use, one set cheer machine,

spray release agent use, pour table, track

(the height of the mould cab be customized by customers specific requirements)

Light Weight Precast EPS Sandwich Panel Production Line Stainless Steel

















What you can get from us?

  •  Investment cost calculation;
  •  Production capacity calculation;
  •  Free factory area design;
  •  Free Production line layout design;
  •  Engineers for installation and guidance on-site;
  •  Free labor training;
  •  12 months warranty;
  •  Life long professional service

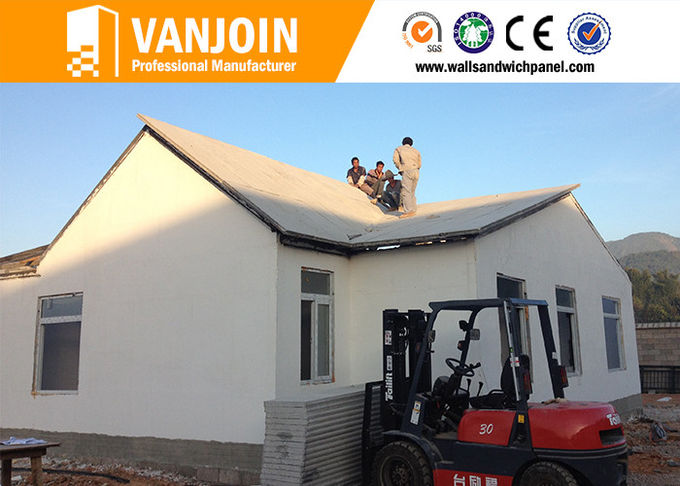

Wall Panel Application:



Interior and exterior partition on steel or concrete structure building,

Light Weight Precast EPS Sandwich Panel Production Line Stainless Steel
