Fast speed EPS Sandwich Wall Panel Making Machine Less Waste

China Fast speed EPS Sandwich Wall Panel Making Machine Less Waste supplier
Fast speed EPS Sandwich Wall Panel Making Machine Less Waste supplier Fast speed EPS Sandwich Wall Panel Making Machine Less Waste supplier Fast speed EPS Sandwich Wall Panel Making Machine Less Waste supplier Fast speed EPS Sandwich Wall Panel Making Machine Less Waste supplier

Large Image :  Fast speed EPS Sandwich Wall Panel Making Machine Less Waste

Product Details:

Place of Origin: Hubei, China
Brand Name: Vanjoin
Certification: CE, ISO, , BV, SASO
Model Number: VJ-PM-YR07

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: negotiation
Packaging Details: standard export package
Delivery Time: 45-60 days after receiving deposit
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 20 Sets Per Month
Contact Now
Detailed Product Description
Raw Material: Cement, Sand Or Fly Ash, Eps Foam, Water, Addtivies, Etc Production Capacity: 10,000m2-1,000,000m2 / Year
Usage: Produce Sandwich Wall Panels Advantages: High Output, Less Worker Needed, Less Waste
Warranty: 12 Months Apecfication: 2270mm*610mm*60mm(75,90,100,120,150,180)
After-sales Service Provided: Engineers Available To Service Machinery Overseas Lifespan: Over 20 Years

New-type Fast-speed EPS Sandwich Panel Production Line Wall Panels Making Machine鈥



Component:



1 . Foaming System: boiler system, continuous pre-expander machine.

2 . Raw Materials Storage / Measuring / Conveying System

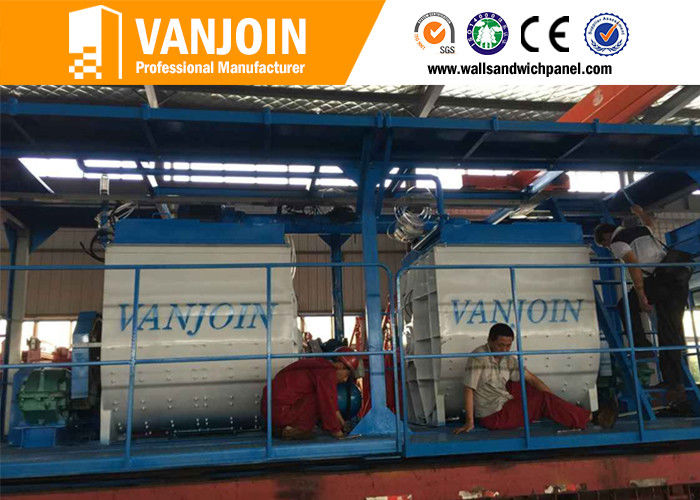

3 . Mixing System

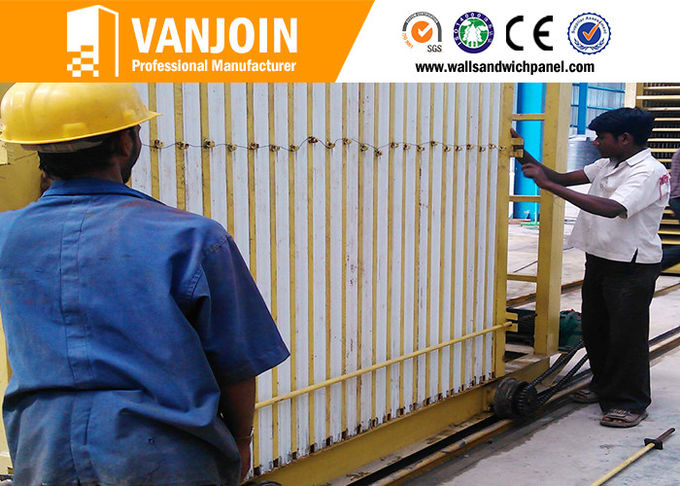

4 . Forming and Gating System



Outstanding Advantages:

 Measuring precisely ensuring each panel is with exactly same materials and ratio
 Easy maintenance by demounting the broken piece
 Recycling use the eps foam& eco-friendly
 Taking good use of local resources: sand
 Fully closed working ensuring clear factory with less pollution

Specification of Mould Car:


VJ-HT2270

Name

Main Parameters

Overall Dimensions(L*W*H)

3180*1380*3480mm

Weight

2800KG

Mobie Power(KW)

2.2

Mobie Speed(m/min)

≤60

Main Components

Host

chassis assembly (power device), former stands, after stands, after plate, rod

Accessories

pressing plate, side mould

Production Information

Thickness (mm)

Width (mm)

Length (mm)

Quantity (pcs/set)

Area (m2/set)

Raw Material (m2)

60

610

2270

60

83.0

4.15

75

610

2270

50

69.2

4.50

90

610

2270

42

58.1

4.65

100

610

2270

40

55.3

4.98

120

610

2270

34

47.0

5.17

150

610

2270

28

38.7

5.42

180

610

2270

22

30.4

5.77

Remarks

Two transition car, production line conversion use, one set cheer machine, spray release agent use, pour table, track.



Fast speed EPS Sandwich Wall Panel Making Machine Less Waste

What You Can Get from Us?

v Over 20 years service life
v Maintenance time: 1 year
v Fully automatic production system
v Professional installation service
v High output with less workers
v Unique Operation Software
v Unique Addictives



Wall Panel Special Features:



Light weight

1 person can take up two pieces of vanjoin panel

Energy-saving, Eco-friendly

100% non-asbestos

Easy to install, fast construction

3 workers can finish a 70 m2 house just by 1 week

Strong and durable

Long life 60-70 years

Heat insulation and preservation

Thermal conductivity: 0.221W/mk

Sound insulation

42-46 DB

Weatherproof; windproof

70m/s; grade 13

Fireproof

keep well about 4 hours under 1000 degree temperature

Anti-impact, anti-earthquake

Grade 8

Best hanging strength

Single point hanging force is > 1200 N

Weight capacity

400KG / square meter

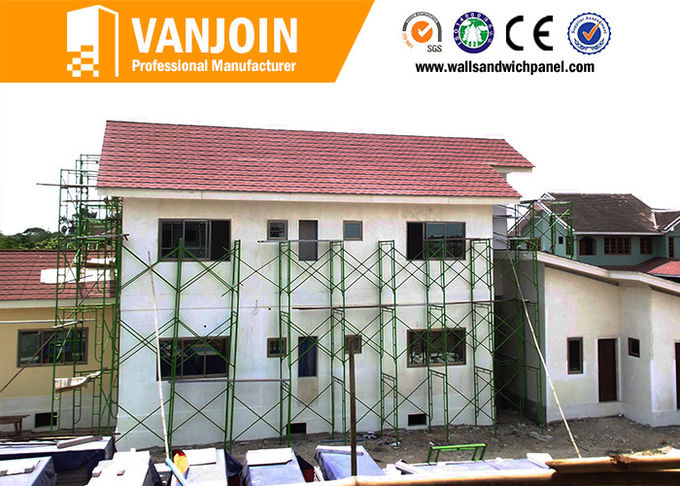

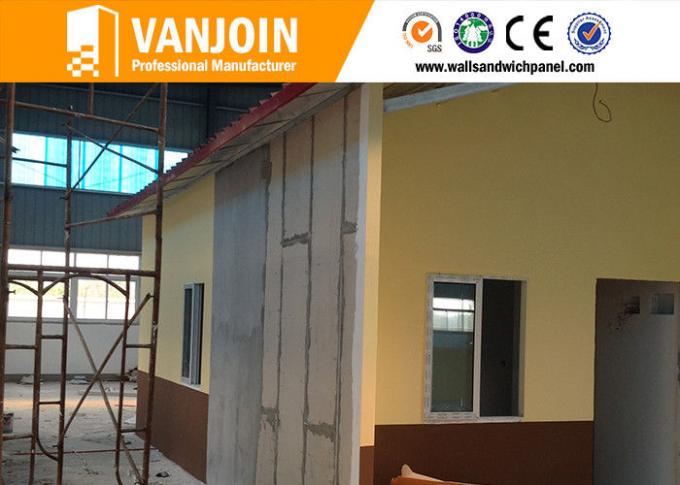

Wall Panel Application:



 Interior and exterior partition on steel or concrete structure building, For new construction, additions or renovations.

Fast speed EPS Sandwich Wall Panel Making Machine Less WasteFast speed EPS Sandwich Wall Panel Making Machine Less Waste
