Product Details:
Payment & Shipping Terms:
|
| Raw Material: | Cement, Sand Or Fly Ash, Eps Foam, Water, Addtivies, Etc | Production Capacity: | 10,000m2-1,000,000m2 / Year |
|---|---|---|---|
| Usage: | Produce Sandwich Wall Panels | Advantages: | High Output, Less Worker Needed, Less Waste |
| Mixer: | JS750, JS1000 | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Lifespan: | Over 20 Years | Warranty: | 12 Months |
Foaming Sandwich Panel Production Line Full Automatic Lightweight Sandwich Panel
Produced Sandwich Panel information:
The Raw materials are cement, sand, EPS (expendable polystyrene), compound admixture (our company has developed it with independent intellectual property rights, we will teach you to make it after you purchased our production line), calcium silicate board and water. You can also use other industrial waste material as filling material, such as fly ash, slag, tailings, etc. to bring down the cost and alleviate the industrial waste pollution at the same time. The filling material is non-essential. You can choose the local cheapest material as the filling material or don’t use any filing material, it doesn’t mater.
These raw materials are common and easy to get.
Types of Sandwich Panels
EPS cement sandwich panel
Ceramisite sandwich panel
Perlite sandwich panel
Ceramisite & eps sandwich panel
Component:
1 . Foaming System: boiler system, continuous pre-expander machine.
2 . Raw Materials Storage / Measuring / Conveying System
3 . Mixing System
4 . Forming and Gating System
VJ-HT2270 | ||||||
Name | Main Parameters | |||||
Overall Dimensions(L*W*H) | 3180*1380*3480mm | |||||
Weight | 2800KG | |||||
Mobie Power(KW) | 2.2 | |||||
Mobie Speed(m/min) | ≤60 | |||||
Main Components | Host | chassis assembly (power device), former stands, after stands, after plate, rod | ||||
Accessories | pressing plate, side mould | |||||
Production Information | Thickness (mm) | Width (mm) | Length (mm) | Quantity (pcs/set) | Area (m2/set) | Raw Material (m2) |
60 | 610 | 2270 | 60 | 83.0 | 4.15 | |
75 | 610 | 2270 | 50 | 69.2 | 4.50 | |
90 | 610 | 2270 | 42 | 58.1 | 4.65 | |
100 | 610 | 2270 | 40 | 55.3 | 4.98 | |
120 | 610 | 2270 | 34 | 47.0 | 5.17 | |
150 | 610 | 2270 | 28 | 38.7 | 5.42 | |
180 | 610 | 2270 | 22 | 30.4 | 5.77 | |
Remarks | Two transition car, production line conversion use, one set cheer machine, spray release agent use, pour table, track. | |||||

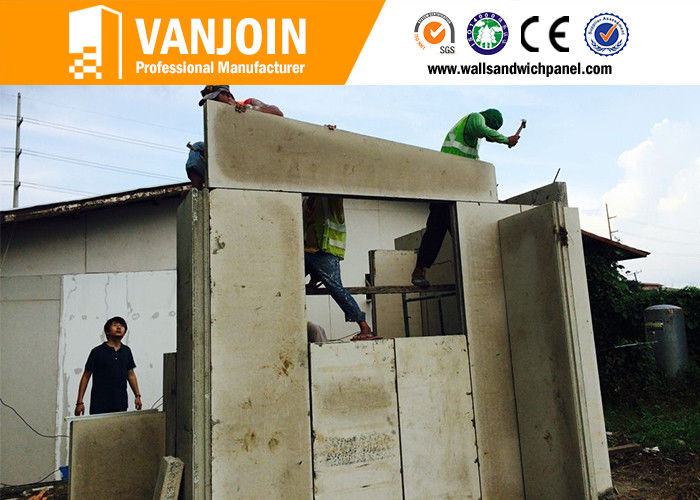

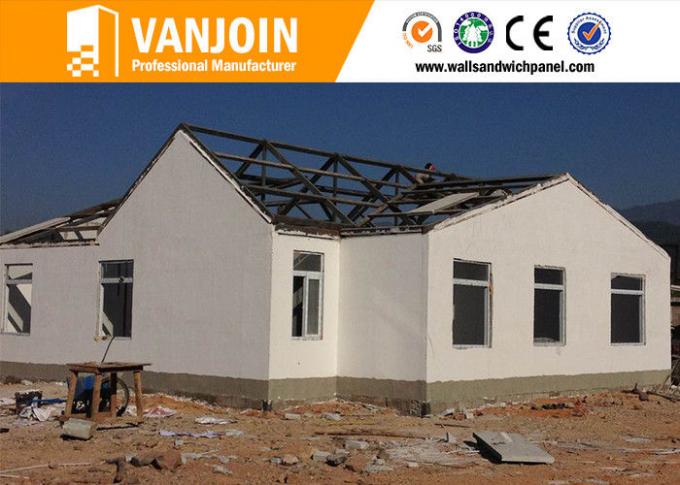

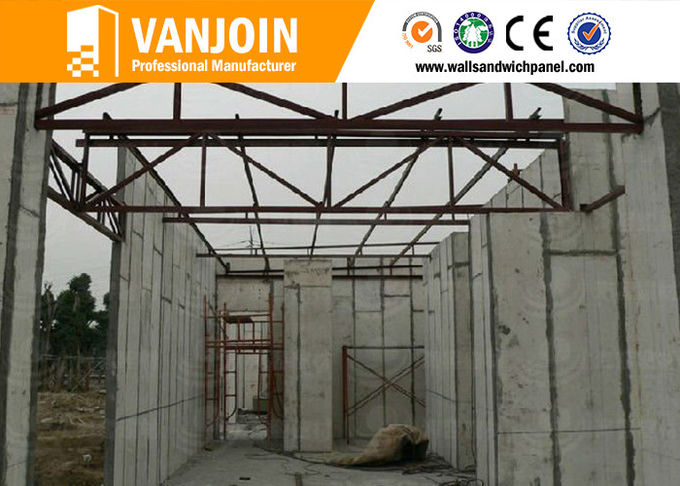

Wall Application:
For interior and exterior wall partition on steel or concrete structure building, new construction or renovations. It can replace construction materials such as block, wire spatial grid structure perlite board, perlite porous board and etc. It can widely be applied to wall materials of various high and low buildings such as bank, office building, hospital, school, hotel, mall, amusement, old house reconstruction, residence and workshop.
