Product Details:
Payment & Shipping Terms:
|
| Thickness: | 60mm To 150mm | Width: | 610mm |
|---|---|---|---|
| Length: | 2270mm | Usage: | Interior Wall, Exterior Wall |
| Application: | House, Villa, High Building | Lifespan: | 70 Years |
| Advantages: | Fireproof, Waterproof, Heat Insulation, Sound Insulation | Construction: | 2 Workers Can Install 60m2 Per Day |
| Labor Cost: | Less And Saving | Certification: | CE, ISO, , BV, Test Report, Patent |
| Type: | Non Metal Sandwich Panel | Loading Container: | 20ft Container |
House EPS Cement Sandwich Board Building Material 60mm to 150mm Thickness
Quick Information
|
Type |
Composite panel board |
|
Material |
Face boards are calcium silicate board, inner materials are eps foam, cement, sand, additives, etc. |
|
Size |
Standard length 2270mm, width 610mm, thickness 60mm,75mm,90mm,100mm,120mm,150mm. |
|
Application |
External and internal wall for various houses and buildings |
|
Joining Method |
Tongue & groove type |
|
Supply ability |
200,000m2 per month. |
|
Delivery time |
Usually 7 days after receiving prepayment. |
|
Payment terms |
T/T, L/C. |
|
Packing |
Exporting standard pallets |
|
Samples |
Free samples are available. |
|
Certificates |
CE,ISO,,BV, with test reports and patents |
Specification and Loading Quantity
| Size (mm) | Weight (kg/m2) | Loading Quantity (m2) |
| 2270*610*60 | 45-48 | 436 |
| 2270*610*75 | 50-53 | 349 |
| 2270*610*90 | 55-58 | 287 |
| 2270*610*100 | 60-65 | 262 |
| 2270*610*120 | 65-75 | 212 |
| 2270*610*150 | 80-90 | 175 |
Advantages
|
Lightweight |
1 person can carry panel easily |
|
Eco-friendly |
100% non-asbestos |
|
Fast Construction |
3 workers can install 60-80m2 per day |
|
Strong,Durable and Long Lifespan |
70 years |
|
Sound Insulation |
42-46 dB |
|
Windproof |
65m/s |
|
Fireproof |
4 hours |
|
Anti-earthquake |
Grade 8-9 |
|
Best hanging force |
Single point hanging force is 50kg |
|
Weight capacity |
650KG / square meter |
Application
Interior wall system, with advantages of sound insulation, best hanging force, waterproof.
Exterior wall system, with advantages of weatherproof, heat insulation, fast construction.
Roof system, with advantages of lightweight, waterproof, heat insulation, high safety
Floor systme, with advantages of high strength, sound insulation, durable
Packing
Packing Standard is Standard Exporting Packing
Packing Materials are EPE foam film,plastic thin film, edge protect,packing belt, good pallet
Total Packages is 18 pallets/20'GP.

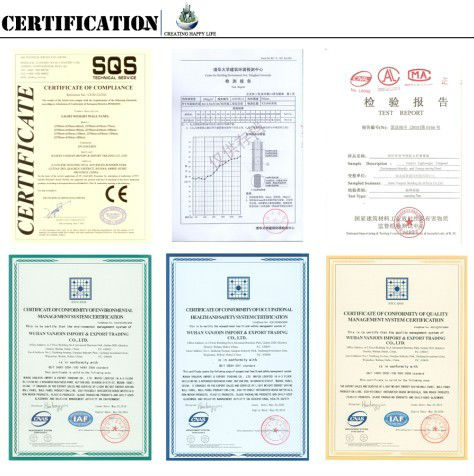

Certificate
CE,ISO9001:2008,ISO14001:2004, test reports.
Customer
Our customers are from Philippines, Thailand, India, Nepal, Indonesia, Maldives,Malaysia,Iraq,Iran,Saudi Arabia, Portugal, Sweden,Cyprus,Irland,Russia, Brazil, Bolivia,Uruguay,Venezuela,Mexico, Costa Rico,Chile,Panama,Angola,Kenya,Nigeria,South Africa,etc.
FAQ
Q1. How many year your company has been in this filed?
A. About 10 years, now we are the top professional manufacturer of sandwich wall panels in China.
Q2. What's the production capacity of your factory per year?
A. 2,000,000m2 per year at present with production area 40,000m2 and stacking area 60,000m2.
Now we are planning another full automatic production line to increase our production capacity again.
Q3. What are your main markets and exporting volum per month?
A. Southeast Asia, Middle East, South America, Africa. We export over 400 containers per month.
Q4. What certificates do you have?
A. CE,ISO9001,ISO14001,BV, with patents and necessary test reports,such as fireproof,sound insulation, heat transfer,etc.
Q5. What's the delivery time of your sandwich wall panels?
A. Usually within 7 - 15 days, the accurate time will depends on your specific purchasing quantity.
Q6. How to install your sandwich wall panels?
A. We can send you the installation presentation, and you also can watch the installation video via https://www.vanjoinbuild.com/Download.asp?id=57
Q7. Can i get the samples?
A. Of course, samples are available, you just need to pay the delivery cost.
The catalogue and installation CD are free for you too.
Our Service
We are also the professional supplier of wall panel production line and flexible soft ceramic tile.
For more information, pls visit our company website www.vanjoinbuild.com.
If you need further details and support, please don't hesitate to contact us. ^_^
