Heat Insulation EPS Cement Sandwich Panel For Cold Room And Refrigerations Unit

China Heat Insulation EPS Cement Sandwich Panel For Cold Room And Refrigerations Unit supplier
Heat Insulation EPS Cement Sandwich Panel For Cold Room And Refrigerations Unit supplier Heat Insulation EPS Cement Sandwich Panel For Cold Room And Refrigerations Unit supplier Heat Insulation EPS Cement Sandwich Panel For Cold Room And Refrigerations Unit supplier Heat Insulation EPS Cement Sandwich Panel For Cold Room And Refrigerations Unit supplier

Large Image :  Heat Insulation EPS Cement Sandwich Panel For Cold Room And Refrigerations Unit

Product Details:

Place of Origin: China
Brand Name: Vanjoin
Certification: CE, BV, ISO
Model Number: VJ-WPE-E03H

Payment & Shipping Terms:

Minimum Order Quantity: 300 SQM
Price: negotiation
Packaging Details: 1. Free packing ( with normal pallet and normal packing belt ) 2. Standard exporting packing ( wraped with plastic film , edge protect and good pallet )
Delivery Time: 7-15 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 200,000 SQM per Month
Contact Now
Detailed Product Description
Product Name: EPS Cement Sandwich Panel Application: Cold Room Walls
Heat Insulation: Excellent Construction Speed: 75-80M2 / Day
Fire Rated Performance: A Level Light Weight: 35kg/m2(60mm Thickness)
Anti-earthquake: Class 8 Useful Life: 60-70 Years

Heat Insulation EPS Cement Sandwich Panel For Cold Room And Refrigerations Unit



Advantages:



1 . Most energy-saving, light weight, environmental protection

The capacity is 650kg/m³, just sixth of the brick building



2 . Most Area-saving

In comparison of the inner wall panel 75mm abd 120mm, every 12m will increase practical area, for the 100銕 house, it will increase 4.26銕.



3 .Most waterproof and dampproof

Because of the special featuresof the solid panel, the feature of waterproof and dampproof is very obvious. The experiment shows that without any waterproof facing, build one pool with our products, and fill it with water, the back of the wall can keep dry without ant blot.When in damp weather, there isn't any condensation wate.



4 . Most fire-proof

Under 1000 degree centigrade for 240 minutes, there isn't damage to the wall.



5 . Most sound-insulation

46dB-50dB sound-insulation effect, accord with the national standard GBJ121-88.



6 . Best hanging strength

Expansion bol can be installed in random part of the wall, the point hanging force can reach more than 50kg(50-70kg).

With other Pre-embedded material in the panel, the strength can reach 150kg.



7 . Most anti-seismic and inpact resistance

Earthquake resistant level: M8.0



8 . Largest span and height thin webbed wall

The large span walls impact resistance ability will be 1.5 times more than common material. The simple construcing height is 16.8m, but need a stucture within every 6m in transverse direction and 5m in  longitudinal direction.



9 . Most civilized, environmental, high efficiency construction

Simple construction and transportation, stacking health, dry operation, no sludge, low loss, less waste, construction convenient, no bricklaying plastering, shorten the construction period, slotted fast, easy to install water and electricity pipeline. The construction efficiency is 8-10 times of the normal masonry, it's a kind of high-quality reusable wall.



Specifications And Package:



2270*610*60mm 315pcs /436m2
2270*610*75mm 252pcs/349m2
2270*610*90mm 207pcs/287m2
2270*610*100mm 189pcs/262m2
2270*610*120mm 153pcs/212m2
2270*610*150mm 135pcs/187m2



Index Datas:



Flexural Strength(Longitudinal)

4.27MPa

Flexural Strength(Transverse)

4118N

Moisture Content

9%

Moisture Movement

0.06%

Resistance to Continuous Heating

80°C

Surface Alkalinity

pH 7-10

Non-combustibility(face board)

BS EN ISO 1182: 2002

BS476: Part 4

GB8624-1997, Grade A

Heat of Combustion(Face Board)

BS EN ISO 1716: 2002

Building Regulations Classification(face board)

Eur0 Class A1

Fire Rated Partition

4 hour FRP

BS EN 1364-1

BS 476: Part 22

GB/T9978

Water Tightness to ASTM c1185

No droplets observed behind the panel,

Test of 24 hours at 250mm water head

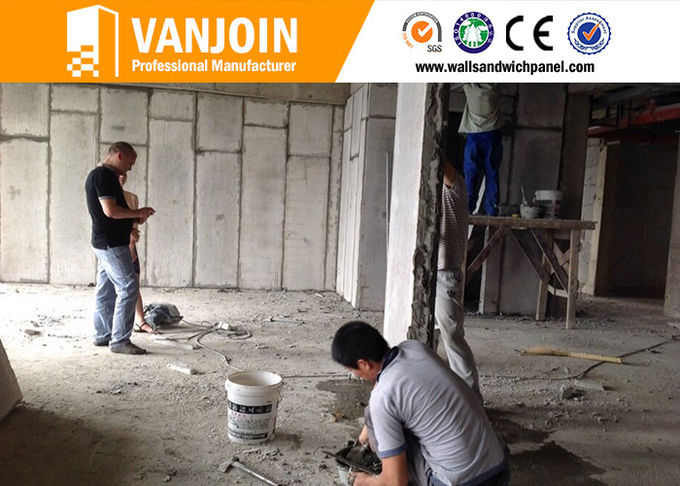

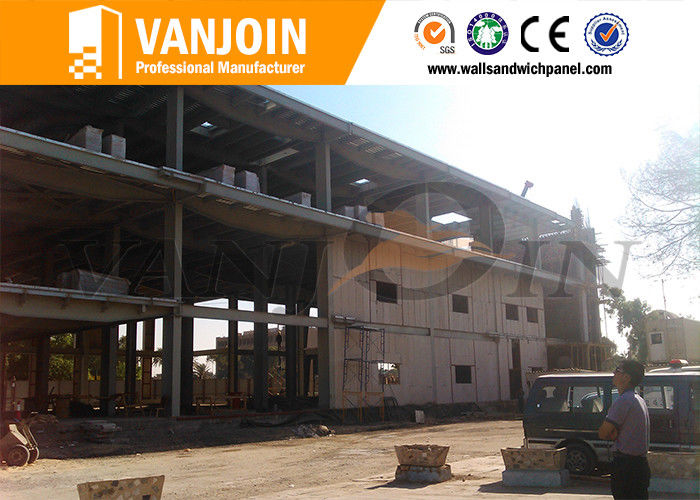

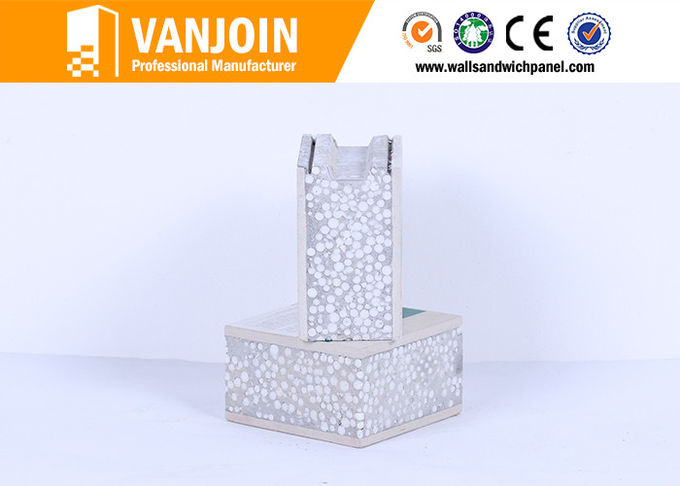

EPS Cement Sandwich Panel Photo:



Heat Insulation EPS Cement Sandwich Panel For Cold Room And Refrigerations Unit

Heat Insulation EPS Cement Sandwich Panel For Cold Room And Refrigerations Unit
