Fireproof Precast Eps Sandwich Panel Machine 40 - 95KW , Panel Making Machine

China Fireproof Precast Eps Sandwich Panel Machine 40 - 95KW , Panel Making Machine supplier
Fireproof Precast Eps Sandwich Panel Machine 40 - 95KW , Panel Making Machine supplier Fireproof Precast Eps Sandwich Panel Machine 40 - 95KW , Panel Making Machine supplier Fireproof Precast Eps Sandwich Panel Machine 40 - 95KW , Panel Making Machine supplier Fireproof Precast Eps Sandwich Panel Machine 40 - 95KW , Panel Making Machine supplier

Large Image :  Fireproof Precast Eps Sandwich Panel Machine 40 - 95KW , Panel Making Machine

Product Details:

Place of Origin: Wuhan City, Hubei Province, Chian Mainland
Brand Name: VANJOIN
Certification: CE/BV/ISO9001/ISO14001/
Model Number: VJB-PL-02

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set/ Sets
Price: negotiation
Packaging Details: Standard exporting packing
Delivery Time: 20 - 35 days
Payment Terms: L/C,T/T, Paypal, Western Union, D/A, D/P, MoneyGram
Supply Ability: 20 Set/Sets per Month
Detailed Product Description
Features: Fast Construction, Anti-earthquake Product Name: Automatica CE Certification Fireproof​ Concrete Eps Wall Sandwich Panel Production Line
Power: 40-95KW Panel Use For: Exterior Wall, Interior Wall, Roof, Floor
Proudcts: Vertical, Boiler, Foamin Machines, Etc Material: Metal
Voltage: 220V, 380V Color: Red, Grey, Blue, Customer Design
Dimension(L*W*H): 3180*1380*3480mm Service Life: 20 Years
Loading: 20' GP After-sales Service Provided: Engineers Available To Service Machinery Overseas
Shipping With: Compression Mould

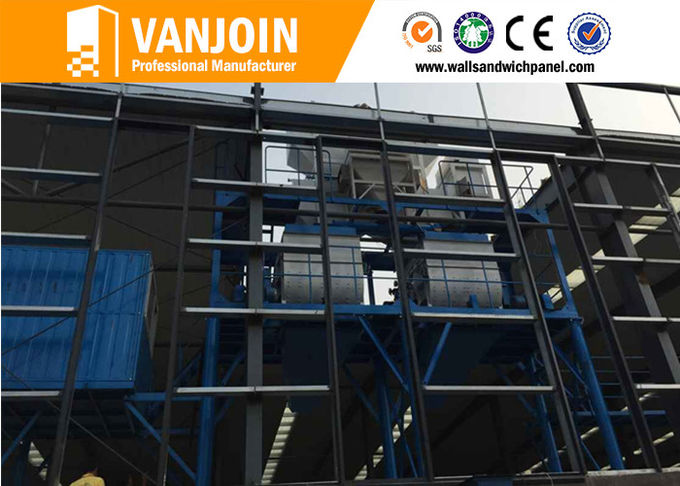

 Automatic Fireproof Precast Eps Sandwich Panel Machine Production Line



1 . Production Data of Eps Sandwich Panel Machine:



Specification(L*W*T) Output of One Mould Car
2270mm*610mm*60mm 60 pcs/set
2270mm*610mm*75mm 50 pcs/set
2270mm*610mm*90mm 42 pcs/set
2270mm*610mm*100mm 40 pcs/set
2270mm*610mm*120mm 34 pcs/set
2270mm*610mm*150mm 28 pcs/set
2270mm*610mm*180mm 22 pcs/set





. Features of Eps Sandwich Panel Machine



Light weight 1 person can take up two pieces of vanjoin panel
Energy-saving, Eco-friendly 100% non-asbestos
Easy to install, fast construction 3 workers can finish a 70 m2 house just by 1 week
Strong and durable Long life 60-70 years
Heat insulation and preservation Thermal conductivity: 0.221W/mk
Sound insulation 42-46 DB
Weatherproof; windproof 70m/s; grade 13
Fireproof keep well about 4 hours under 1000 degree temperature
Anti-impact, anti-earthquake Grade 8
Best hanging strength Single point hanging force is > 1200 N
Weight capacity 400KG / square meter




3 . Technical Information of Eps Sandwich Panel Machine:



Vertical Automatic Mould Technical Parameters:
Name Main Parameters
Overall Dimensions 3180 × 1380 × 3480
(Length × Width × Height)
Weight 2800 KGS
Mobile Power(KW) 2.2
Mobile Speed(m/min) ≤60
Main Components Host Chassis assembly(power device), former stands,
after stands, after plate, rod
Accessories Press mould, side mould, bottom mould.
Production  Thickness  Width      Length    Quantity  Area  Raw Material
Information (mm) (mm) (mm) (pcs/set) (m2/set) (m3)
60 610 2270 48 66.5 3.32
75 610 2270 42 58.2 3.78
90 610 2270 36 49.8 3.99
100 610 2270 32 44.3 3.99
120 610 2270 30 41.5 4.57
150 610 2270 24 33.2 4.65
180 610 2270 20 27.7 4.71
Remarks Two transition cars, production line conversion use, one set cheer machine,
spray release agent use, pour table, track
(the height of the mould cab be customized by customers specific requirements)

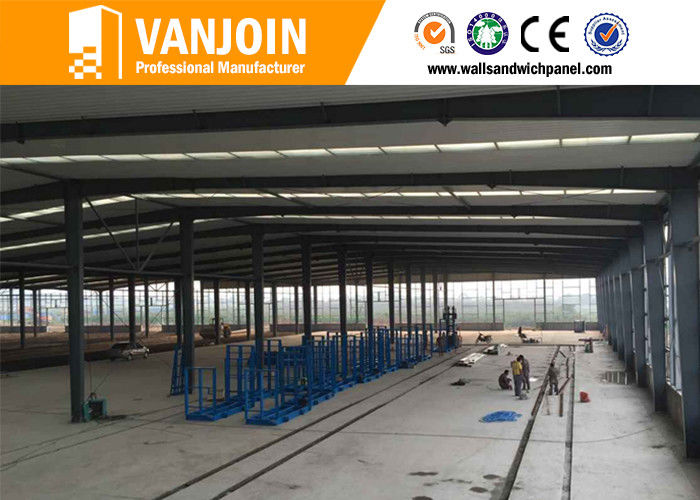

4 . Workers and Area Requirement of Eps Sandwich Panel Machine



Annual Production Capacity Workers Requirement Production Area Requirement
100,000 m2 42595 500m2
200,000 m2 42661 600m2
300,000 m2 42724 700m2
400,000 m2 15-23 800m2
500,000 m2 18-28 900m2
600,000 m2 22-32 1000m2
700,000 m2 25-35 1100m2
800,000 m2 28-38 1200m2
900,000 m2 32-42 1300m2
1,000,000 m2 35-46 1400m2







 5 . Why Choose VANJOIN Production Line?



v  Save freight: no high transportation cost



v  Fast delivery: no long waiting for the goods



v  Easy handling: no import procedures



v  More profit: win first value in aim market





 6 . Outstanding Advantages:



v Measuring precisely ensuring each panel is with exactly same materials and ratio



v Easy maintenance by demounting the broken piece



v Recycling use the eps foam& eco-friendly



v Taking good use of local resources: sand



v Fully closed working ensuring clear factory with less pollution



7 . Vanjoin Advantages of Eps Sandwich Panel Machine



One-key intelligent operation


Unique Operation Software


Addictives (with patent)


Measuringprecisely ensuring each panel is with exactly same materials and ratio


Easy maintenance by demounting the broken piece


Recycling use the eps foam& eco-friendly


Taking good use of local resources: sand


Fully closed working ensuring clear factory with less pollution





8 . What You Can Get from Us?



v Over 20 years service life



v Maintenance time: 1 year



v Fully automatic production system



v Professional installation service



v High output with less workers



v Unique Operation Software



v Unique Addictives





9 . Extra Free Service of Eps Sandwich Panel Machine



Investment cost calculation



Factory area design



Production line layout design



Production capacity calculation



Provide engineers for installation and guidance on-site
