Product Details:
Payment & Shipping Terms:
|
| Material: | Metal | Type: | Full Automatic, Semi-automatic |
|---|---|---|---|
| Annual Capacity: | 100,000 SQM - 1,000,000 SQM / Year | Machine Warranty: | 1 Year |
| Wastage: | Low And Recyclable | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
Energy Saving High Output Automatic Construction Material Making Machinery
Advantages:
1. The full automatic production system designed by ourselves independently .
2. Unique raw materials measuring ,delivery and mixing system
3. We have the patent to produce the wall panel and our additiveis the best .
4. High production output & less workers
5. Environmental protection
6. Easy maintenance
7. Waste recycle utilization
8. We can supply you the materials (eps,calcium silicon board,ceramic ,etc)at a very competitive price .
9. Long-term professional services
Production Process:
Main materials for light weight energy saving wall panel production include face board, cement, sand, EPS, water, etc. Except raw material secondary processing and other processes before mix (that are dry processes), the entire process use semo-dry method, such as mixing processing, curing process, therefore the fly dust is not much and not much environment pollution. Fly dust is impossible to disappear in the assembling and disassembling mould process.
Component:
1 . Foaming System: boiler system, continuous pre-expander machine.
2 . Raw Materials Storage / Measuring / Conveying System
Usde for sand, cement, water storage and measurement.

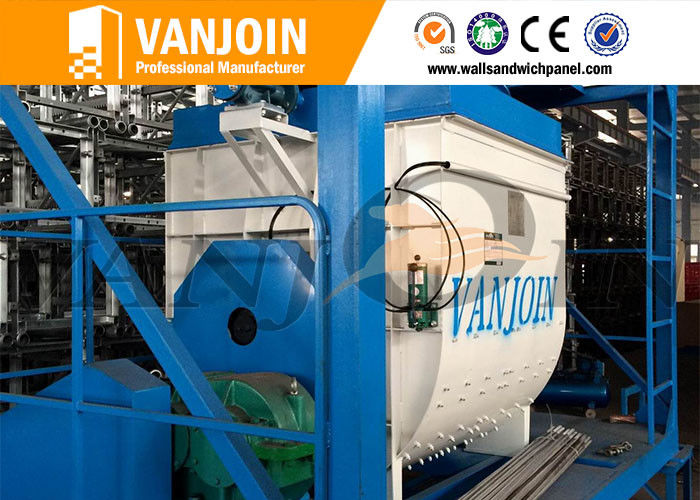

3 . Mixing System
This concrete mixing plant, through full automatic control system, can realize the functions like automatic mixing and discharging, automatic supply cement, sand, water, foam materials, and additives, etc.
Parameters:
| Theoretical Productivity | 2×35m³/h |
| Mixing Time | ≤180s |
| Materials Measuring Accuracy | ±1% |
| Sand Batching Period | ≤10s |
| Sand delivering Speed | 18m³/h |
| Water Supply Flow Speed | 30m³/h |
| Cement Delivering Capacity | 20t/h |
4 . Forming and Gating System
1) Railway of production line
2) Automatica mould machine
This mould machine has high output and returns, low input, high reach in production output of 100,000 square meters annually.
Parameters:
|
Item |
Main parameters |
|||||
|
Overall Dimensions ( Length × Width × Height ) |
3180mm×1380mm×3480mm |
|||||
|
Weight |
2800KG |
|||||
|
Movement Power(KW) |
2.2 |
|||||
|
Movement Speed(m/min) (m/min) |
≤60 |
|||||
|
Main Components |
Main Part |
Base(contain power device), front support, back support, pressing plate, rod |
||||
|
|
Accessories |
Pressing Mould Plate, side mould |
||||
|
Production Data |
Thickness (mm) |
Width (mm) |
Length (mm) |
Production Quantity (pieces/set) |
Area (㎡/set) |
Raw Materials (m³) |
|
|
60 |
610 |
2270 |
60 |
83.0 |
4.15 |
|
|
75 |
610 |
2270 |
50 |
69.2 |
4.50 |
|
|
90 |
610 |
2270 |
42 |
58.1 |
4.65 |
|
|
100 |
610 |
2270 |
40 |
55.3 |
4.98 |
|
|
120 |
610 |
2270 |
34 |
47.0 |
5.17 |
|
|
150 |
610 |
2270 |
28 |
38.7 |
5.42 |
|
|
180 |
610 |
2270 |
22 |
30.4 |
5.17 |
3) Automatic transfer vehicle
4) Vibration platform
5) Electrical control cabinet: can be customized.

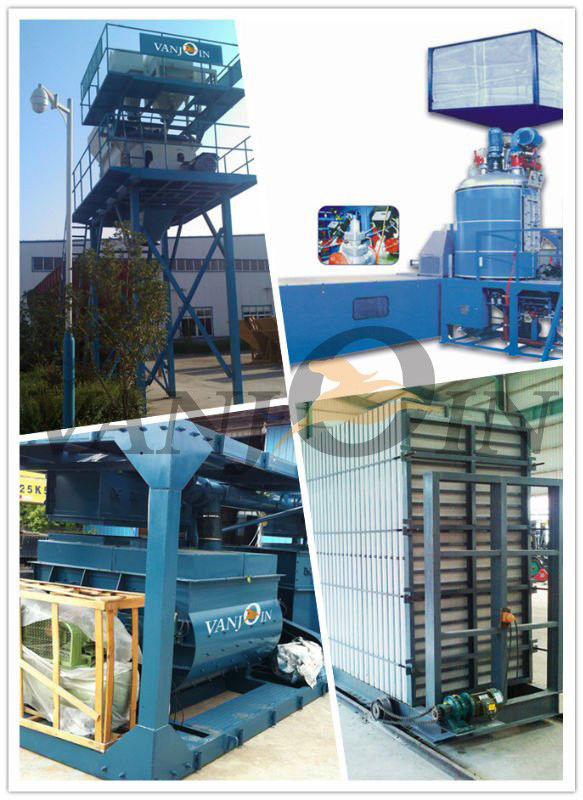

Construction Material Making Machinery Photo:
