Super Construction Material Making Machinery Continuous Sandwich Panel Production Line

China Super Construction Material Making Machinery Continuous Sandwich Panel Production Line supplier
Super Construction Material Making Machinery Continuous Sandwich Panel Production Line supplier Super Construction Material Making Machinery Continuous Sandwich Panel Production Line supplier Super Construction Material Making Machinery Continuous Sandwich Panel Production Line supplier Super Construction Material Making Machinery Continuous Sandwich Panel Production Line supplier

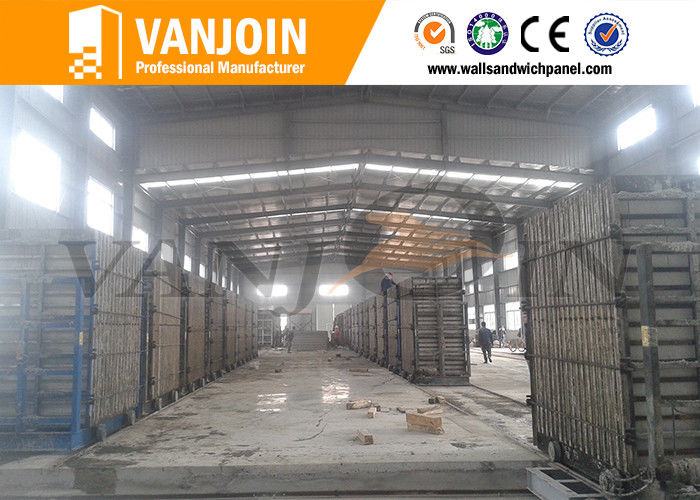

Large Image :  Super Construction Material Making Machinery Continuous Sandwich Panel Production Line

Product Details:

Place of Origin: Wuhan,Hubei, China
Brand Name: Vanjoin
Certification: ISO, , CE,SASO
Model Number: VJ-PL-AY005

Payment & Shipping Terms:

Minimum Order Quantity: 1 Unit
Price: negotiation
Packaging Details: Good quality standard export packing
Delivery Time: 45-60 days after receiving deposite
Payment Terms: L/C, T/T
Supply Ability: 20 Units Per Month
Contact Now
Detailed Product Description
Minimum Capacity: 100,000m2 Maximum Capacity: 1,000,000m2
Voltage: 380V Application: Produce Sandwich Wall Panels
Service Life: Over 20 Years Warranty: One Year
Installation: Engineers Overseas Service Provided Mould Car: Vertical With High Capacity
Mixing System: Unique Design And Full Automatic



Super Construction Material Making Machinery Continuous Sandwich Panel Production Line


Main Machinery

1. Storage silo ( cement silo)
2. Sand stroage silo
3. Water storage tank
4. EPS foaming system
5. Automatic mixing system
6. Vertical mould car
7. Railway
8. Auto Stirring plate



Main Features of EPS Foaming Machine



1. Automatic filling, electronic weighing, temperature control and automatic production

2. Automatic screw conveyor and electronic weighing system

3. High heating efficiency and saves steam

4. Automatic fluidized bed dryer, including drying, sieving,depluming and conveying.

5. Stable quality, long service life and low maintenance cost.

6. Can realize primary and second expansion.



Advantages of Mixing System



1. Mixer is JS750 or JS1000

2. Automatic cement supply system

3. Automatic sand supply system

4. Automatic water supply system

5. Automatic additives supply system

6. Automatic control system

Technical Parameters of Vertical Mould Car


VJ-HT2270

Name

Main Parameters

Overall Dimensions(L*W*H)

3180*1380*3480mm

Weight

2800KG

Mobie Power(KW)

2.2

Mobie Speed(m/min)

≤60

Main Components

Host

chassis assembly (power device), former stands, after stands, after plate, rod

Accessories

pressing plate, side mould

Production Information

Thickness (mm)

Width (mm)

Length (mm)

Quantity (pcs/set)

Area (m2/set)

Raw Material (m2)

60

610

2270

60

83.0

4.15

75

610

227

50

69.2

4.50

90

610

02270

42

58.1

4.65

100

610

2270

40

55.3

4.98

120

610

2270

34

47.0

5.17

150

610

2270

28

38.7

5.42

180

610

2270

22

30.4

5.77

Remarks

Two transition car, production line conversion use, one set cheer machine, spray release agent use, pour table, track.




Advantages

1. Service life is over 20 years
2. Warranty is 1 year
3. Full automatic production line system
4. Unique raw materials measuring, conveying and mixing system
5. High production output and low cost input
6. Less workers and less labor cost
7. Environmental protection
8. Long-term professional service and free training
9. New products and new technology sharing

About Us

10 years production and trading experience.
40,000m2 factory area, 60000m2 stacking area.
Top 1 manufacturer in Middle of China
2,000,000m2 annual production capacity
Over 400 containers export volum per month
More than 50 countries market area

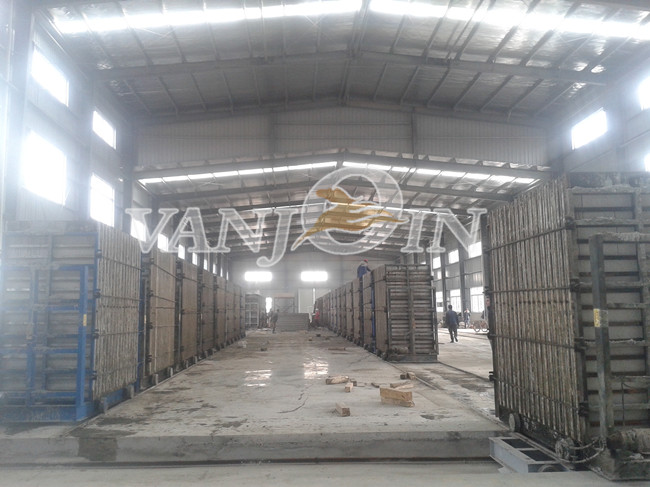

Super Construction Material Making Machinery Continuous Sandwich Panel Production Line

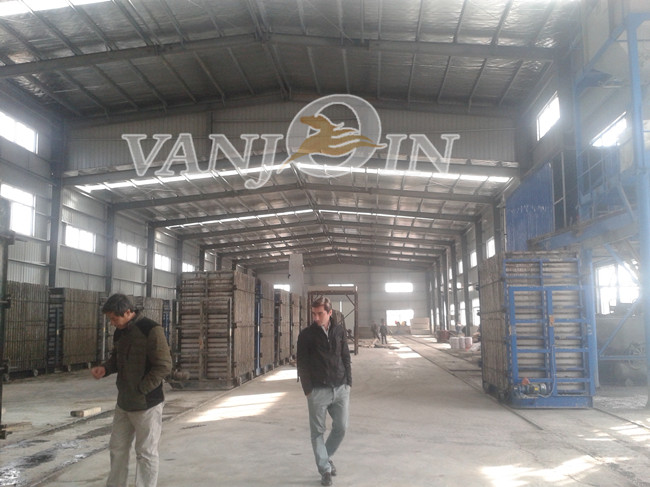

Super Construction Material Making Machinery Continuous Sandwich Panel Production Line
