Product Details:
Payment & Shipping Terms:
|
| Application: | Produce Sandwich Wall Panels | Service Life: | Over 20 Years |
|---|---|---|---|
| Warranty: | One Year | Installation: | Engineers Overseas Service Provided |
| Mould Car: | Vertical With High Output | Mixing System: | Unique Design And Full Automatic |
| EPS Foaming System: | Automatic | Production Capacity: | 100,000m2 To 1,000,000m2 Per Year |
High Output Construction Material Making Machinery low noise
Main System
A. EPS Foaming System
Boiler, continuous eps pre-expander machine

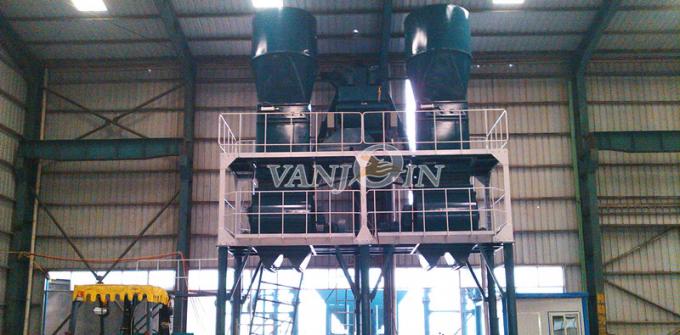

B. Raw Materials Storage/Measuring/Conveying System

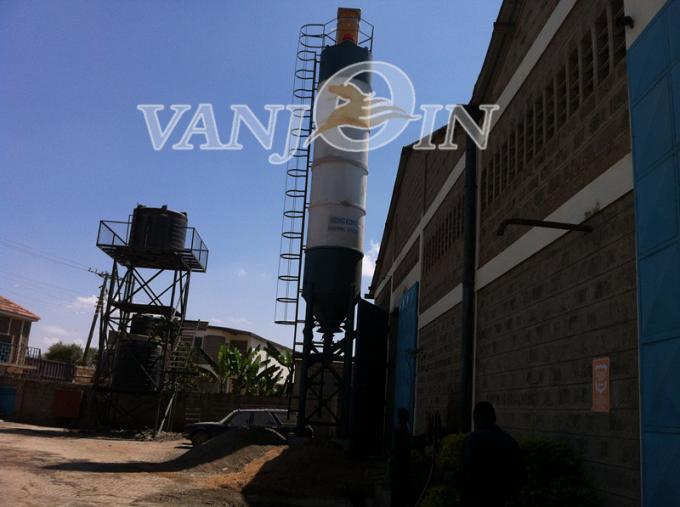

Cement silo, screw conveyor
Cement measuring system, sand measuring system, elevator hopper, sand feeding machine,
foam supply system, water measuring system, additives measuring system.
C. Mixing System
JS750 mixing machine, body frame system, electric control system

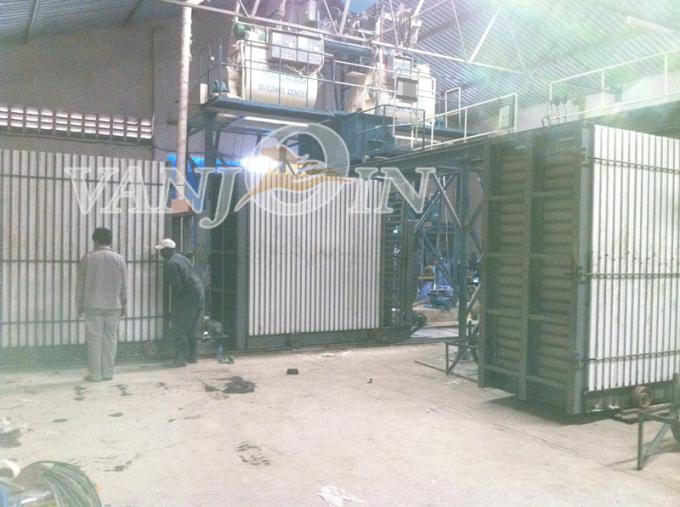

D. Forming and Gating System
Railway of production line, automatic mould machine, automatic transfer vehicle, vibration platform,
electrical control cabinet.
Advantages of Mixing System
1. Mixer is JS750 or JS1000
2. Automatic cement supply system
3. Automatic sand supply system
4. Automatic water supply system
5. Automatic additives supply system
6. Automatic control system

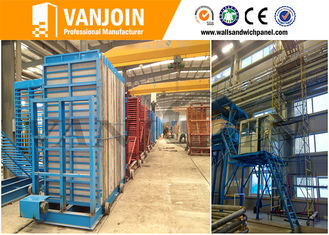

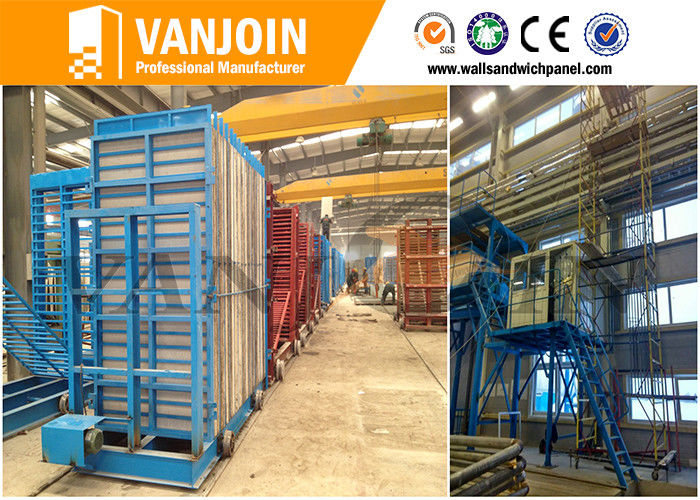

Technical Parameters of Vertical Mould Car
|
VJ-HT2270 |
||||||
|
Name |
Main Parameters |
|||||
|
Overall Dimensions(L*W*H) |
3180*1380*3480mm |
|||||
|
Weight |
2800KG |
|||||
|
Mobie Power(KW) |
2.2 |
|||||
|
Mobie Speed(m/min) |
≤60 |
|||||
|
Main Components |
Host |
chassis assembly (power device), former stands, after stands, after plate, rod |
||||
|
Accessories |
pressing plate, side mould |
|||||
|
Production Information |
Thickness (mm) |
Width (mm) |
Length (mm) |
Quantity (pcs/set) |
Area (m2/set) |
Raw Material (m2) |
|
60 |
610 |
2270 |
60 |
83.0 |
4.15 |
|
|
75 |
610 |
227 |
50 |
69.2 |
4.50 |
|
|
90 |
610 |
02270 |
42 |
58.1 |
4.65 |
|
|
100 |
610 |
2270 |
40 |
55.3 |
4.98 |
|
|
120 |
610 |
2270 |
34 |
47.0 |
5.17 |
|
|
150 |
610 |
2270 |
28 |
38.7 |
5.42 |
|
|
180 |
610 |
2270 |
22 |
30.4 |
5.77 |
|
|
Remarks |
Two transition car, production line conversion use, one set cheer machine, spray release agent use, pour table, track. |
|||||
Production Capacity / Mould Car Quantity / Workers / Area
| Annual Capacity /m2 | Quantity of Mould Car /set | Workers Needed/Person | Production Area/m2 |
Stacking Area/m2 |
| 100,000 | 5 | 8-13 | 500 | 1000 |
| 200,000 | 8 | 10-18 | 600 | 2000 |
| 300,000 | 10 | 12-20 | 700 | 3000 |
| 400,000 | 11 | 15-23 | 800 | 4000 |
| 500,000 | 12 | 18-26 | 900 | 5000 |
| 600,000 | 13 | 22-32 | 1000 | 6000 |
| 700,000 | 14 | 25-35 | 1100 | 7000 |
| 800,000 | 15 | 28-36 | 1200 | 8000 |
| 900,000 | 16 | 32-42 | 1300 | 9000 |
| 1,000,000 | 17 | 35-46 | 1400 | 10000 |
Advantages
1. Service life is over 20 years
2. Warranty is 1 year
3. Full automatic production line system
4. Unique raw materials measuring, conveying and mixing system
5. High production output and low cost input
6. Less workers and less labor cost
7. Environmental protection
8. Long-term professional service and free training
9. New products and new technology sharing
