Stainless Steel Electric Control Eps Sandwich Panel Machine Anti Corrosion

China Stainless Steel Electric Control Eps Sandwich Panel Machine Anti Corrosion supplier
Stainless Steel Electric Control Eps Sandwich Panel Machine Anti Corrosion supplier Stainless Steel Electric Control Eps Sandwich Panel Machine Anti Corrosion supplier Stainless Steel Electric Control Eps Sandwich Panel Machine Anti Corrosion supplier Stainless Steel Electric Control Eps Sandwich Panel Machine Anti Corrosion supplier

Large Image :  Stainless Steel Electric Control Eps Sandwich Panel Machine Anti Corrosion

Product Details:

Place of Origin: Hubei, China
Brand Name: VANJOIN
Certification: CE/BV/ISO9001/ISO14001/
Model Number: PM-505R

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Machinery is carefully packed with wooden pallets for outer packing, components and parts are packed in cartons.
Delivery Time: 30 working days after received your payment
Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability: 20 sets per month
Detailed Product Description
Product Name: High Production Capacity Integrated Electric Control Eps Sandwich Panel Machine Components: Storage System, Measuring System, Mixing System, Forming System
Capacity: 100,000 - 1,000,000 Sqm Per Year Operation: One-key Operation, Integrated Electric Control System, PLC
Other Service: Investment Analysis, Plant Design, Layout, On-site Installation Guidance Machine Usage: Produce Sandwich Wall Panel
Panel Usage: Roof Panel, Floor Panel, Interior Wall Panel, Exterior Wall Panel Panel Quality: Patented Additive, Patented Proportion

High Production Capacity Integrated Electric Control Eps Sandwich Panel Machine



1. Description:

The full automatic eps sandwich panel machine is composited by storage system, measuring system, mixing system, forming systemis, the whole production line is operated by integrated electric control system, it's one-key operation, easy maintenance, and high efficiency with capacity from 100,000 square meters to 1,000,000 square meters.



We have experienced and well trained workers and installation teams, professional designers, engineers and technicians, we can provide you life long technical support and service.



2. Technical Parameter and Production Data:

Technical Parameter

Material

Stainless Steel, Anti corrosion, Anti rust

Powder

45kw per day

Voltage

380v

Frequency

50Hz

Components

Boiler System,

Raw Materials Storage/Measuring/Conveying System,

Mixing System, Foaming and Gating System

Automatic Grade

Full Automatic, Semi Automatic, Manual

Usage

Produce sandwich wall panels

Machine Capacity

100,000 - 2,000,000 m2 per Year

Warranty

1 Year

Service Time

20+ Years



Production Data



Thickness

(mm)

Width

(mm)

Length

(mm)

Production Quantity

(pc/set)

Area

(㎡/set)

Raw Materials

(m³)

60

610

2270

60

83.0

4.15

75

610

2270

50

69.2

4.50

90

610

2270

42

58.1

4.65

100

610

2270

40

55.3

4.98

120

610

2270

34

47.0

5.17

150

610

2270

28

38.7

5.42

180

610

2270

22

30.4

5.77



3. Vanjoin Automatic Sandwich Wall Panel Machine Competitive Advantage:



  • ※ Produce patented sandwich wall panels with excellent performance;
  • ※ Unique raw material measuring, delivery and mixing system;
  • ※ High-tech support from the talents of specialized research group in famous university;
  • ※ Strict quality control;
  • ※ Experienced and well trained workers and installation team;
  • ※ Professional designer, engineer, technology

4. Composition:

  • ※ Boiler System;
  • ※ Raw Materials Storage/Measuring/Conveying System;
  • ※ Mixing System;
  • ※ Forming and Gating System

4.1 Boiler System

Boiler is mainly used for supplying steam for the foaming equipment to foam EPS foam, we used electric heating boiler, which is heating water by electric energy to obtain the specified parameters of steam or hot water, the boiler’s thermal efficiency is higher than 98%, electricity is used for the boiler to heat, clean and pollution-free at site.



Type of Boilers:

Electric Boiler

Coal Boiler

Gas Boiler



4.2 EPS Foaming Machine

Eps foaming machine adopts PLC and touch screen control, automatic filling, electronic weighing, temperature control, material level control to realize automatic production.

This machine can realize the primary and second expansion.

The machine is complete with screw conveyor and electronic weighing system.



Foaming Machine Technical Parameters:

Item

Unit

PSF-Q1400JR

Diameter

mm

1400

Shell Height

mm

2000

Volume

m3

3

Useable Volume

m3

2.8

Steam Pressure

mpa

1.6-0.8

Compressed Air Pressure

mpa

0.6-0.8

Density

kg/m3

12-40

Throughput

kg/h

150-600

Connected Load

kw

14.87

Overall Dimension

mm

4500*2150*2950

Machine Weight

kg

2500

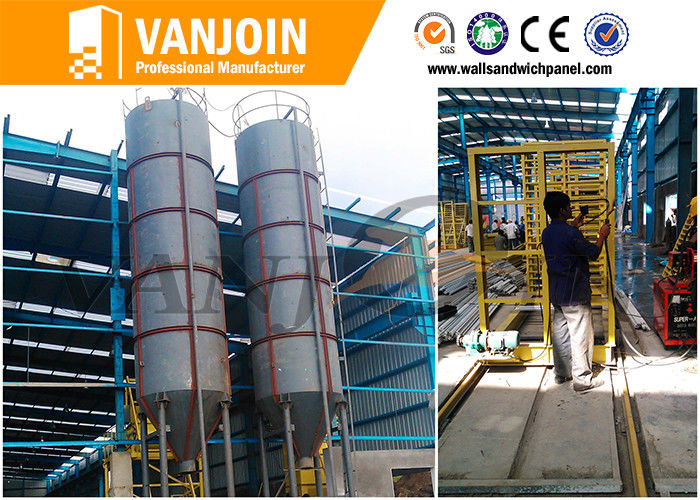

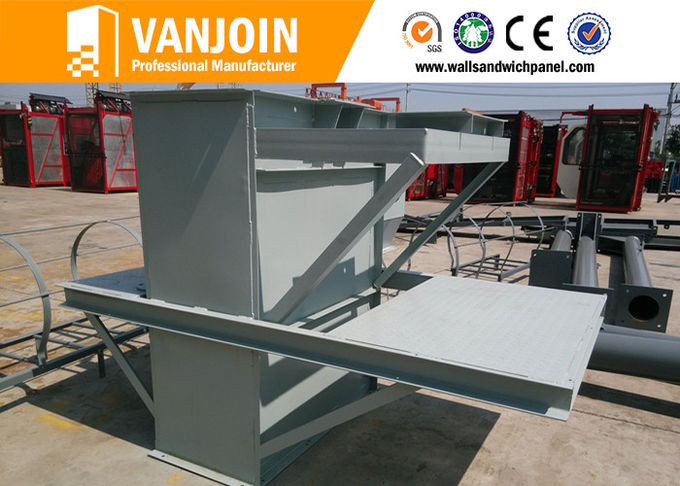

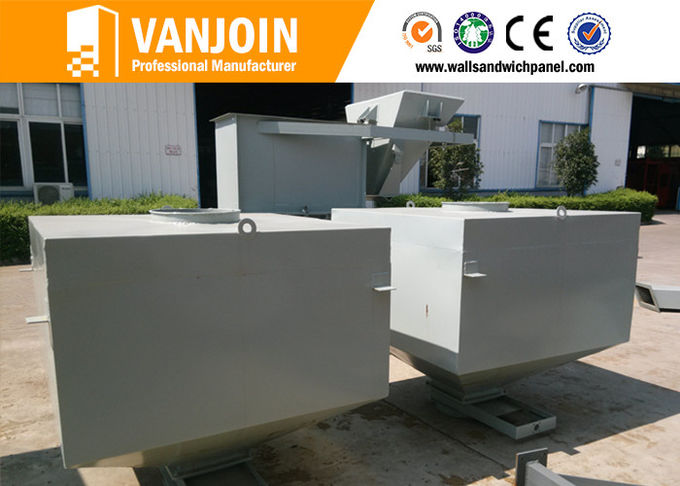

4.3 Raw Materials Storage/Measuring/Conveying System:

  • ※ Automatic Cement Supply System;
  • ※ Automatic Sand Supply System;
  • ※ Automatic Water Supply System;
  • ※ Automatic Foam Supply System;
  • ※ Automatic Additive Supply System.

Stainless Steel Electric Control Eps Sandwich Panel Machine Anti CorrosionStainless Steel Electric Control Eps Sandwich Panel Machine Anti Corrosion



4.4 Mixing System

This concrete mixing plant, through full automatic control system, can realize the functions like automatic mixing and discharging, automatic supply cement, sand, water, foam materials, and additives, etc.

Mixing time: 180s



4.5 Forming and Gating System

Vertical Automatic Mould Machinery

Double horizontal shafts compulsory mixing machine is chosen which has features of excellent work reliablity, super mixing quality, high productivity, etc.

Two-storey design by adopting section bars welded together.



Vertical Automatic Mould Technical Parameters:

Name

Main Parameters

Overall Dimensions

(Length × Width × Height)

3180 × 1380 × 3480

Weight

2800 KGS

Mobile Power(KW)

2.2

Mobile Speed(m/min)

≤60

Main

Components

Host

Chassis assembly(power device), former stands,

after stands, after plate, rod

Accessories

Press mould, side mould, bottom mould.

Production

Information

Thickness

(mm)

Width

(mm)

Length

(mm)

Quantity

(pcs/set)

Area

(m2/set)

Raw Material

(m3)

60

610

2270

48

66.5

3.32

75

610

2270

42

58.2

3.78

90

610

2270

36

49.8

3.99

100

610

2270

32

44.3

3.99

120

610

2270

30

41.5

4.57

150

610

2270

24

33.2

4.65

180

610

2270

20

27.7

4.71

Remarks

Two transition cars, production line conversion use, one set cheer machine,

spray release agent use, pour table, track

(the height of the mould cab be customized by customers specific requirements)

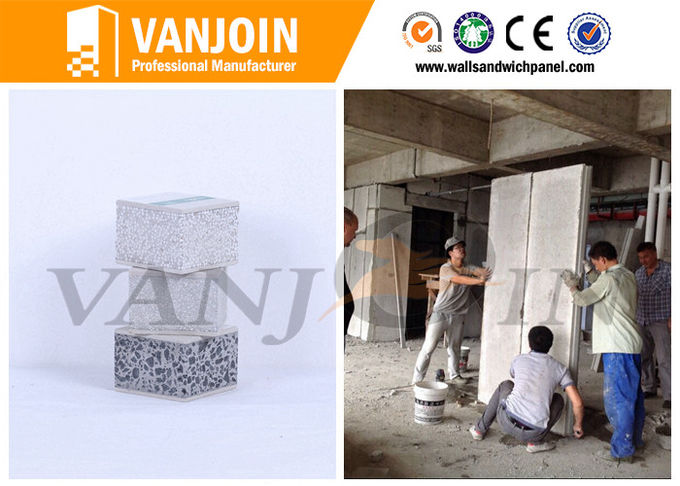

5. Panels it can produce:

Eps cement sandwich panel;

Ceramsite cement sandwich panel;

Eps Ceramsite sandwich panel;

Perlite cement sandwich panel;

Stainless Steel Electric Control Eps Sandwich Panel Machine Anti Corrosion

6. What You Can Get from Vanjoin Group?

  • ※ Investment cost calculation;
  • ※ Production capacity calculation;
  • ※ Free factory area design;
  • ※ Free Production line layout design;
  • ※ Engineers for installation and guidance on-site;
  • ※ Free labor training;
  • ※ 12 months warranty;
  • ※ Life long professional service;



7. What You Need To Do?
Raw Materials: calcium silicate board, EPS, cement, sand or fly ash.
(If some material is not available at your local, we can also provide for you)
Land/ Factory Preparation
Workers.
