High Production Sandwich Panel Production Line Automatic Vertical Mould Making Machines

China High Production Sandwich Panel Production Line Automatic Vertical Mould Making Machines supplier
High Production Sandwich Panel Production Line Automatic Vertical Mould Making Machines supplier High Production Sandwich Panel Production Line Automatic Vertical Mould Making Machines supplier High Production Sandwich Panel Production Line Automatic Vertical Mould Making Machines supplier High Production Sandwich Panel Production Line Automatic Vertical Mould Making Machines supplier High Production Sandwich Panel Production Line Automatic Vertical Mould Making Machines supplier

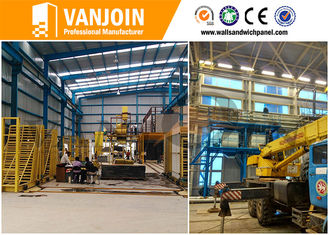

Large Image :  High Production Sandwich Panel Production Line Automatic Vertical Mould Making Machines

Product Details:

Place of Origin: Hubei, China
Brand Name: VANJOIN
Certification: CE, ISO14001, , BV
Model Number: VJ-PL-AY003

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: negotiation
Packaging Details: Standard Exporting Packing in 40ft Container
Delivery Time: 45-60 days
Payment Terms: T/T, L/C
Supply Ability: 20 Sets Per Month
Detailed Product Description
Type: Full Automation Application: Produce Sandwich Panel
Max Production: 1,000,000m2 Per Year Lifespan: Over 20 Years
Warranty: 1 Year Mould Car: Vertical
EPS Foaming Machine: Full Automatic Mixer: JS1000
Raw Materials: EPS, Cement,Sand,Additives Usage: Produce Lightweight Wall Panel

High Production Sandwich Panel Production Line Automatic Vertical Mould Making Machines



Sandwich Panel Types This Production Line Produce



EPS cement sandwich wall panel

Ceramisite sandwich wall panel

Perlite sandwich wall panel

EPS & ceramisite sandwich wall panel



Main System



A. EPS Foaming System

    Boiler, continuous eps pre-expander machine

B. Raw Materials Storage/Measuring/Conveying System

    Cement silo, screw conveyor

    Cement measuring system, sand measuring system, elevator hopper, sand feeding machine,

    foam supply system, water measuring system, additives measuring system.

C. Mixing System

    JS750 mixing machine, body frame system, electric control system

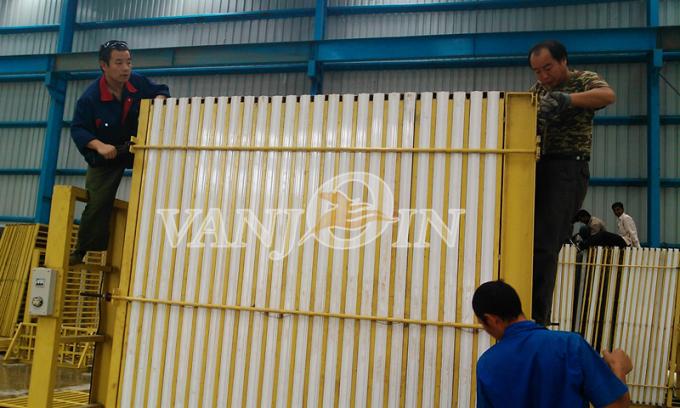

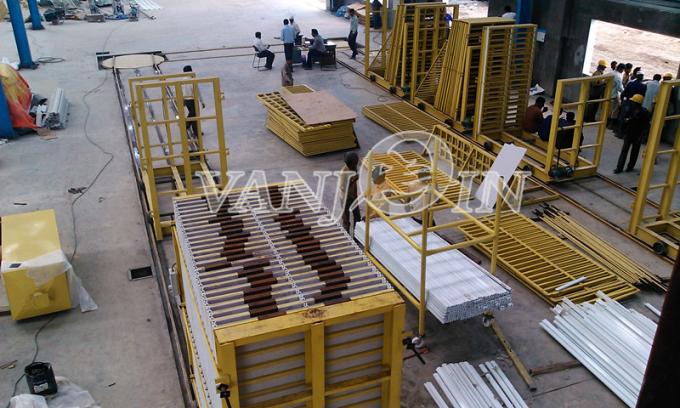

D. Forming and Gating System

    Railway of production line, automatic mould machine, automatic transfer vehicle, vibration platform,

    electrical control cabinet.



Main Features of EPS Foaming Machine



1. Automatic filling, electronic weighing, temperature control and automatic production

2. Automatic screw conveyor and electronic weighing system

3. High heating efficiency and saves steam

4. Automatic fluidized bed dryer, including drying, sieving,depluming and conveying.

5. Stable quality, long service life and low maintenance cost.

6. Can realize primary and second expansion.



Advantages of Mixing System



1. Mixer is JS750 or JS1000

2. Automatic cement supply system

3. Automatic sand supply system

4. Automatic water supply system

5. Automatic additives supply system

6. Automatic control system



Advantages



1. Service life is over 20 years

2. Warranty is 1 year

3. Full automatic production line system

4. Unique raw materials measuring, conveying and mixing system

5. High production output and low cost input

6. Less workers and less labor cost

7. Environmental protection

8. Long-term professional service and free training

9. New products and new technology sharing



Services



1. Investment cost calculation

2. Factory design

3. Production line layout design

4. Provide engineers for installation and guidance on-site



Production Capacity / Mould Car Quantity / Workers / Area



Annual Capacity /m2 Quantity of Mould Car /set  Workers Needed/Person Production Area/m2

Stacking Area/m2

100,000 5 8-13 500 1000
200,000 8 10-18 600 2000
300,000 10 12-20 700 3000
400,000 11 15-23 800 4000
500,000 12 18-26 900 5000
600,000 13 22-32 1000 6000
700,000 14 25-35 1100 7000
800,000 15 28-36 1200 8000
900,000 16 32-42 1300 9000
1,000,000 17 35-46 1400 10000





























About Us

10 years production and trading experience.
40,000m2 factory area, 60000m2 stacking area.
Top 1 manufacturer in Middle of China
2,000,000m2 annual production capacity
Over 400 containers export volum per month
More than 50 countries market area
