Product Details:
Payment & Shipping Terms:
|
| Product Name: | EPS Sandwich Panel Making Machine | Panel Size: | 2270/2440/3000x610mm |
|---|---|---|---|
| Panel Thickness: | 60mm, 75mm, 90mm, 100mm, 120mm, 150mm, 180mm | Machine Warranty: | 1 Year |
| Production Output: | 100,000 SQM - 1,000,000 SQM / Year | Production Area Needed: | 500-1400㎡ |
Mutifunctional Light Weight Fire Proof EPS Sandwich Panel Making Machines
Why Choose VANJOIN Production Line?
※ Save freight: You don't need to import the wall panel any more .
※ Fast delivery: You can send the wall panels to your customers directly and quickly
※ Easy handling: The customers in your country don't need the import procedures
※ More profit: Seize the market opportunities timely .
※ Product diversification: we can make kinds of panels
What you can get from us?
※ Over 20 years service life
※ Maintenance time: 2year
※ Fully automatic production system
※ Unique raw materials measuring ,delivery and mixing system
※ Long-term professional services
※ High output with less workers
※ Free training
What customers need to do?
You just to need prepare the raw materials:
EPS, cement, Sand or fly ash, Land, Foudation, Factory preparation, Workers
Component:
1 . Foaming System: boiler system, continuous pre-expander machine.
2 . Raw Materials Storage / Measuring / Conveying System
Usde for sand, cement, water storage and measurement.
3 . Mixing System
This concrete mixing plant, through full automatic control system, can realize the functions like automatic mixing and discharging, automatic supply cement, sand, water, foam materials, and additives, etc.
Parameters:
| Theoretical Productivity | 2×35m³/h |
| Mixing Time | ≤180s |
| Materials Measuring Accuracy | ±1% |
| Sand Batching Period | ≤10s |
| Sand delivering Speed | 18m³/h |
| Water Supply Flow Speed | 30m³/h |
| Cement Delivering Capacity | 20t/h |
4 . Forming and Gating System
1) Railway of production line
2) Automatica mould machine
Parameters:
|
Item |
Main parameters |
|||||
|
Overall Dimensions ( Length × Width × Height ) |
3180mm×1380mm×3480mm |
|||||
|
Weight |
2800KG |
|||||
|
Movement Power(KW) |
2.2 |
|||||
|
Movement Speed(m/min) (m/min) |
≤60 |
|||||
|
Main Components |
Main Part |
Base(contain power device), front support, back support, pressing plate, rod |
||||
|
|
Accessories |
Pressing Mould Plate, side mould |
||||
|
Production Data
|
Thickness (mm) |
Width (mm) |
Length (mm) |
Production Quantity (pieces/set) |
Area (㎡/set) |
Raw Materials (m³) |
|
60 |
610 |
2270 |
60 |
83.0 |
4.15 |
|
|
75 |
610 |
2270 |
50 |
69.2 |
4.50 |
|
|
90 |
610 |
2270 |
42 |
58.1 |
4.65 |
|
|
100 |
610 |
2270 |
40 |
55.3 |
4.98 |
|
|
120 |
610 |
2270 |
34 |
47.0 |
5.17 |
|
|
150 |
610 |
2270 |
28 |
38.7 |
5.42 |
|
|
180 |
610 |
2270 |
22 |
30.4 |
5.17 |
|
3) Automatic transfer vehicle
4) Vibration platform
5) Electrical control cabinet: can be customized.
Advantages:
1. The full automatic production system designed by ourselves independently .
2. Unique raw materials measuring ,delivery and mixing system
3. We have the patent to produce the wall panel and our additiveis the best .
4. High production output & less workers
5. Environmental protection
6. Easy maintenance
7. Waste recycle utilization
8. We can supply you the materials (eps,calcium silicon board,ceramic ,etc)at a very competitive price .
9. Long-term professional services

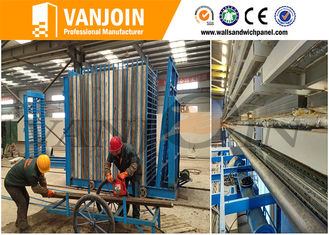

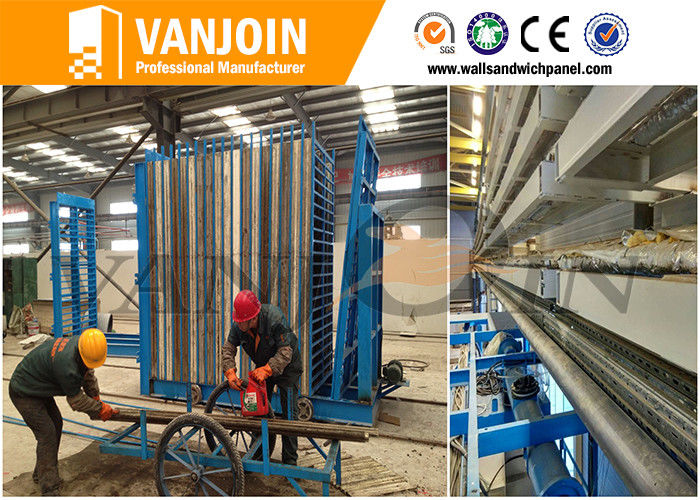

EPS Sandwich Panel Making Machine Photo:
