Light Weight Concrete Wall Panel Construction Material Making Machinery Mixing System

China Light Weight Concrete Wall Panel Construction Material Making Machinery Mixing System supplier
Light Weight Concrete Wall Panel Construction Material Making Machinery Mixing System supplier Light Weight Concrete Wall Panel Construction Material Making Machinery Mixing System supplier Light Weight Concrete Wall Panel Construction Material Making Machinery Mixing System supplier Light Weight Concrete Wall Panel Construction Material Making Machinery Mixing System supplier

Large Image :  Light Weight Concrete Wall Panel Construction Material Making Machinery Mixing System

Product Details:

Place of Origin: Hubei, China(Mainland)
Brand Name: Vanjoin
Certification: ISO9001, ISO14001
Model Number: VJ-PM-03H

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Standard Exporting Package
Delivery Time: 30-45 working days
Payment Terms: L/C, T/T, Western Union
Detailed Product Description
Material: Metal Kind: Full Automatic
Annual Capacity: 100,000 SQM - 1,000,000 SQM / Year Machine Warranty: 1 Year
Installation: Easy Service Provided: Engineers Available To Service Machinery Overseas

Energy Saving High Output Automatic Construction Material Making Machinery

Component:

1 . Foaming System: boiler system, continuous pre-expander machine.
2 . Raw Materials Storage / Measuring / Conveying System
Usde for sand, cement, water storage and measurement.
3 . Mixing System
This concrete mixing plant, through full automatic control system, can realize the functions like automatic mixing and discharging, automatic supply cement, sand, water, foam materials, and additives, etc.

Parameters:


Theoretical Productivity2×35m³/h
Mixing Time≤180s
Materials Measuring Accuracy±1%
Sand Batching Period≤10s
Sand delivering Speed18m³/h
Water Supply Flow Speed30m³/h
Cement Delivering Capacity20t/h


4 . Forming and Gating System
1) Railway of production line

2) Automatica mould machine
This mould machine has high output and returns, low input, high reach in production output of 100,000 square meters annually.

Parameters:


Item

Main parameters

Overall Dimensions
( Length × Width × Height )

3180mm×1380mm×3480mm

Weight

2800KG

Movement Power(KW)

2.2

Movement Speed(m/min)
(m/min)

≤60

Main Components

Main Part

Base(contain power device), front support,
back support, pressing plate, rod



Accessories

Pressing Mould Plate, side mould

Production Data

Thickness
(mm)

Width
(mm)

Length
(mm)

Production Quantity
(pieces/set)

Area
(㎡/set)

Raw Materials
(m³)



60

610

2270

60

83.0

4.15



75

610

2270

50

69.2

4.50



90

610

2270

42

58.1

4.65



100

610

2270

40

55.3

4.98



120

610

2270

34

47.0

5.17



150

610

2270

28

38.7

5.42



180

610

2270

22

30.4

5.17


The difference between the Vertical mould machine and Horizontal mould machine:




Production
Capacity
vertical >
horizontal
 (within same
time scope)

Panel Kinds
Production
Limitation

Panel Quality

Mould
Maintenance

Main Body
of Moulds

Vertical
Mould
Machine

60pcs for
60mm
thickness

can make
at least
6 kinds
panels so far

During production,
under high
pressure filling,
cement will
runout from surface
panel edge gap.
Because horizontal
mould is a whole
piece, which will
result in surface
panel not abling
to be cleaned;
after panels
become solid,
the wall will
become not
smoothly.
It will influence the
application and
decoration.

1.Maintenance
cost is lower
and more
durable
2.In case one
or several
moulds are
broken, other
moulds can
normally work

can make s
everal kinds
panels by
using
one main
body, which
realized "one
machine
multiple
choice"

Horizontal
Mould
Machine


12pcs for
60mm
thickness

can not
produce
other kind
panels like
ceramisite
sandwich
panel

In case one
or several
moulds are
broken,
horizontal
mould
will be totally
broken,
not be able to
work at all




3) Automatic transfer vehicle
4) Vibration platform
5) Electrical control cabinet: can be customized.

Advantages:

1. The full automatic production system designed by ourselves independently .
2. Unique raw materials measuring ,delivery and mixing system
3. We have the patent to produce the wall panel and our additiveis the best .
4. High production output & less workers
5. Environmental protection
6. Easy maintenance
7. Waste recycle utilization
8. We can supply you the materials (eps,calcium silicon board,ceramic ,etc)at a very competitive price .
9. Long-term professional services

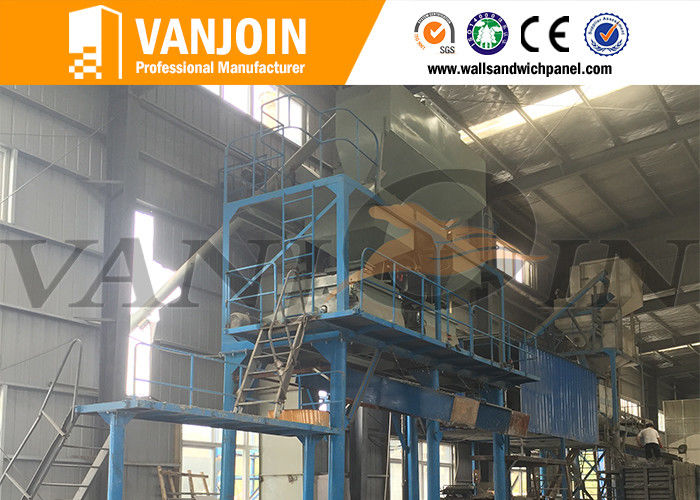

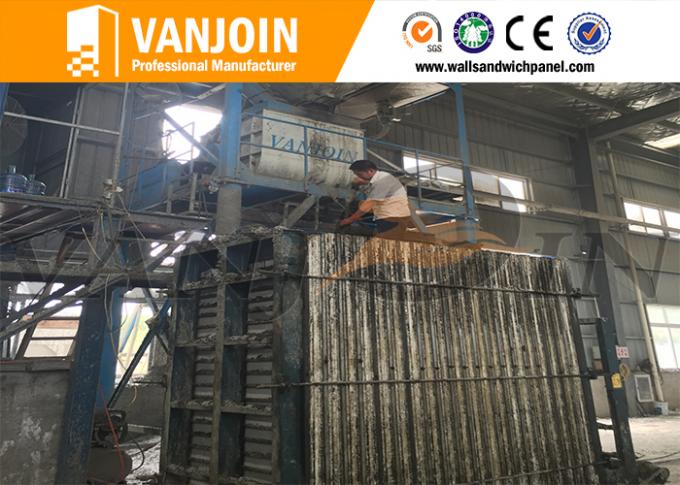

Construction Material Making Machinery Photo:

Light Weight Concrete Wall Panel Construction Material Making Machinery Mixing System
Light Weight Concrete Wall Panel Construction Material Making Machinery Mixing System
