Product Details:
Payment & Shipping Terms:
|
| Automation Level: | Full Automatic | Service Life: | 20 Years |
|---|---|---|---|
| Warranty: | 1 Year | Mould Type: | Vertical |
| Mixer: | JS750, JS1000 | EPS Foaming Machine: | Automatic |
| Side Mould: | 60mm, 75mm, 90mm, 100mm, 120mm, 150mm | Production Raw Materials: | EPS Foam, Cement,Sand |
| Production Capacity: | 100,000m2 To 1,000,000m2 Per Year | Installation: | Engineers Overseas Service Provided |
Vertical Mould Continuous Sandwich Panel Production Line For Fireproof Wall Panel
Production Raw Materials
Face board, calcium silicate board.
EPS, expandable polystyrene granule
Sand
Cement
Additive
Water
Advantages
1. Service life is over 20 years
2. Warranty is 1 year
3. Full automatic production line system
4. Unique raw materials measuring, conveying and mixing system
5. High production output and low cost input
6. Less workers and less labor cost
7. Environmental protection
8. Long-term professional service and free training
9. New products and new technology sharing
Main System
A. EPS Foaming System
Boiler, continuous eps pre-expander machine
B. Raw Materials Storage/Measuring/Conveying System
Cement silo, screw conveyor
Cement measuring system, sand measuring system, elevator hopper, sand feeding machine,
foam supply system, water measuring system, additives measuring system.
C. Mixing System
JS750 mixing machine, body frame system, electric control system

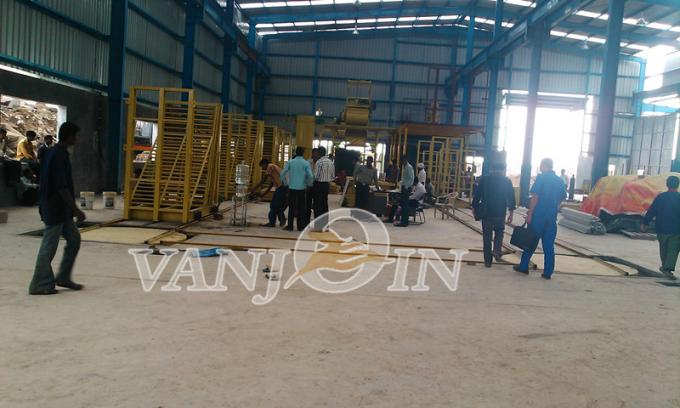

D. Forming and Gating System
Railway of production line, automatic mould machine, automatic transfer vehicle, vibration platform,
electrical control cabinet.
Main Features of EPS Foaming Machine
1. Automatic filling, electronic weighing, temperature control and automatic production
2. Automatic screw conveyor and electronic weighing system
3. High heating efficiency and saves steam
4. Automatic fluidized bed dryer, including drying, sieving,depluming and conveying.
5. Stable quality, long service life and low maintenance cost.
6. Can realize primary and second expansion
Advantages of Mixing System
1. Mixer is JS750 or JS1000
2. Automatic cement supply system
3. Automatic sand supply system
4. Automatic water supply system
5. Automatic additives supply system
6. Automatic control system

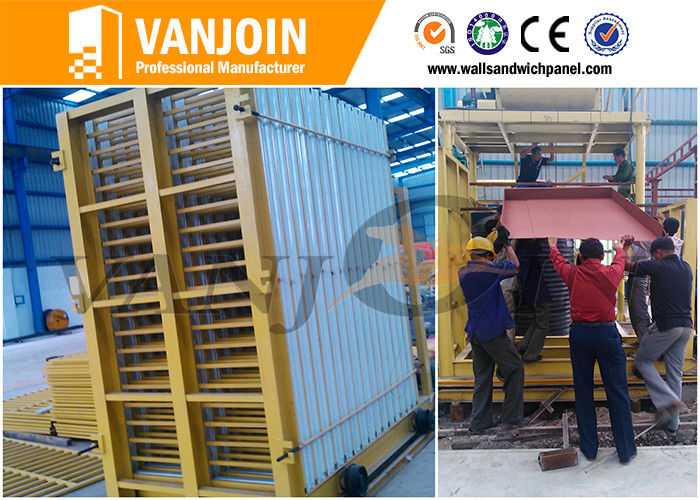

Technical Parameters of Vertical Mould Car
VJ-HT2270 | ||||||
Name | Main Parameters | |||||
Overall Dimensions(L*W*H) | 3180*1380*3480mm | |||||
Weight | 2800KG | |||||
Mobie Power(KW) | 2.2 | |||||
Mobie Speed(m/min) | ≤60 | |||||
Main Components | Host | chassis assembly (power device), former stands, after stands, after plate, rod | ||||
Accessories | pressing plate, side mould | |||||
Production Information | Thickness (mm) | Width (mm) | Length (mm) | Quantity (pcs/set) | Area (m2/set) | Raw Material (m2) |
60 | 610 | 2270 | 60 | 83.0 | 4.15 | |
75 | 610 | 227 | 50 | 69.2 | 4.50 | |
90 | 610 | 02270 | 42 | 58.1 | 4.65 | |
100 | 610 | 2270 | 40 | 55.3 | 4.98 | |
120 | 610 | 2270 | 34 | 47.0 | 5.17 | |
150 | 610 | 2270 | 28 | 38.7 | 5.42 | |
180 | 610 | 2270 | 22 | 30.4 | 5.77 | |
Remarks | Two transition car, production line conversion use, one set cheer machine, spray release agent use, pour table, track. | |||||
Services
1. Investment cost calculation
2. Factory design
3. Production line layout design
4. Provide engineers for installation and guidance on-site
About Us
10 years production and trading experience.
40,000m2 factory area, 60000m2 stacking area.
Top 1 manufacturer in Middle of China
2,000,000m2 annual production capacity
Over 400 containers export volum per month
More than 50 countries market area
